GEA Bock HG8 Series - Page 9

D
GB
F
E
I
Ru
9
09790-02.2018-DGbFEIRu
R134a
R407C
R404A/R507
R22

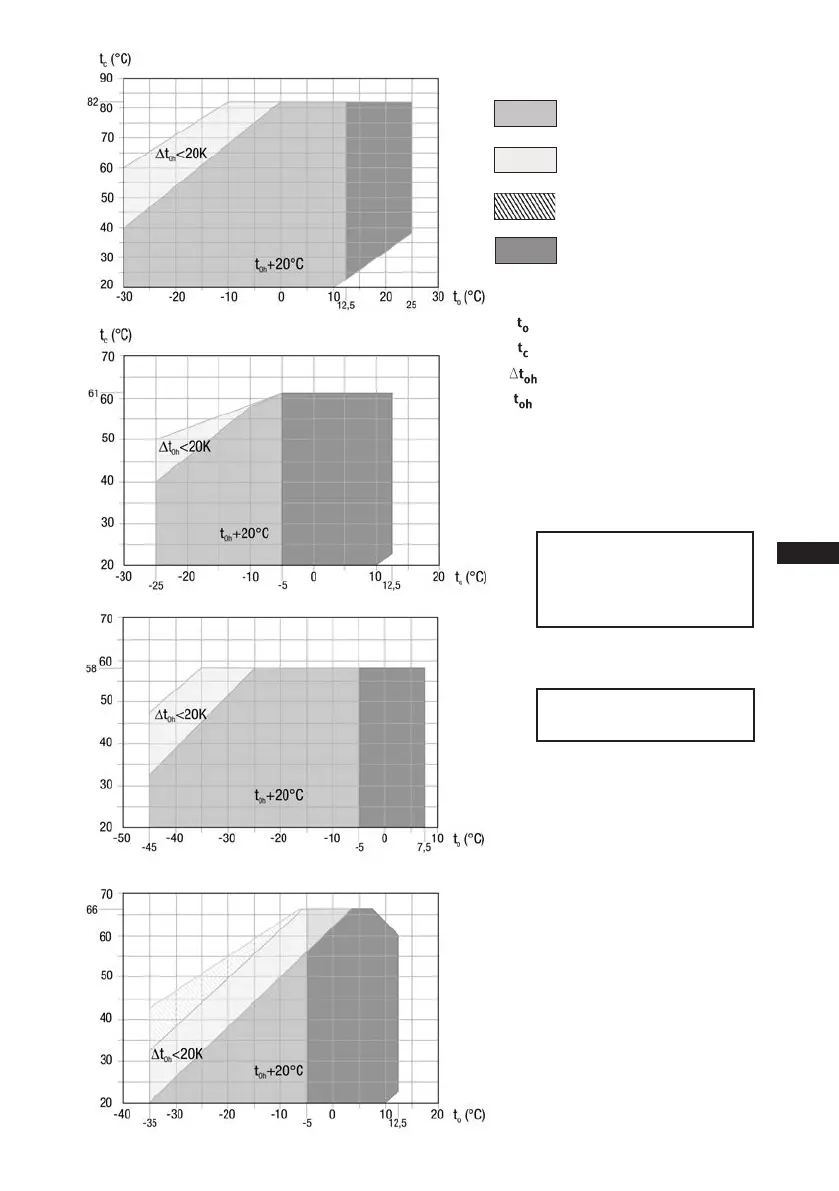

Fig. 4
Fig. 5
Fig. 6
Fig. 7
HGX8/2830-4
max. evaporating temperature
t
0
= 0 °C
HGX8/2470-4 - HGX8/2830-4 -
HGX8/3220-4
max. evaporating temperature
t
0
= 0 °C
HG8/2830-4
max. evaporating temperature t
0
= 0 °C
HG8/2470-4 S
in the evaporation range of
t
0
= 7 °C TO 12,5 °C
limited condensing temperature up to
t
C
= 55 °C
HG8/3220-4 S
max. evaporating temperature t
0
= 5 °C
Unlimited application range
Supplementary cooling or
reduced suction gas temperature
Supplementary cooling and
reduced suction gas temperature
Motor version S
(more powerful motor)
Evaporation temperature (°C)
Condensing temperature (°C)
Suction gas superheat (K)
Suction gas temperature (°C)
Design for other
areasonrequest
Maximum admissible
operating pressure (g)
High pressure side (LP/HP):
19/28 bar
1)
LP = Low pressure
HP = High pressure
