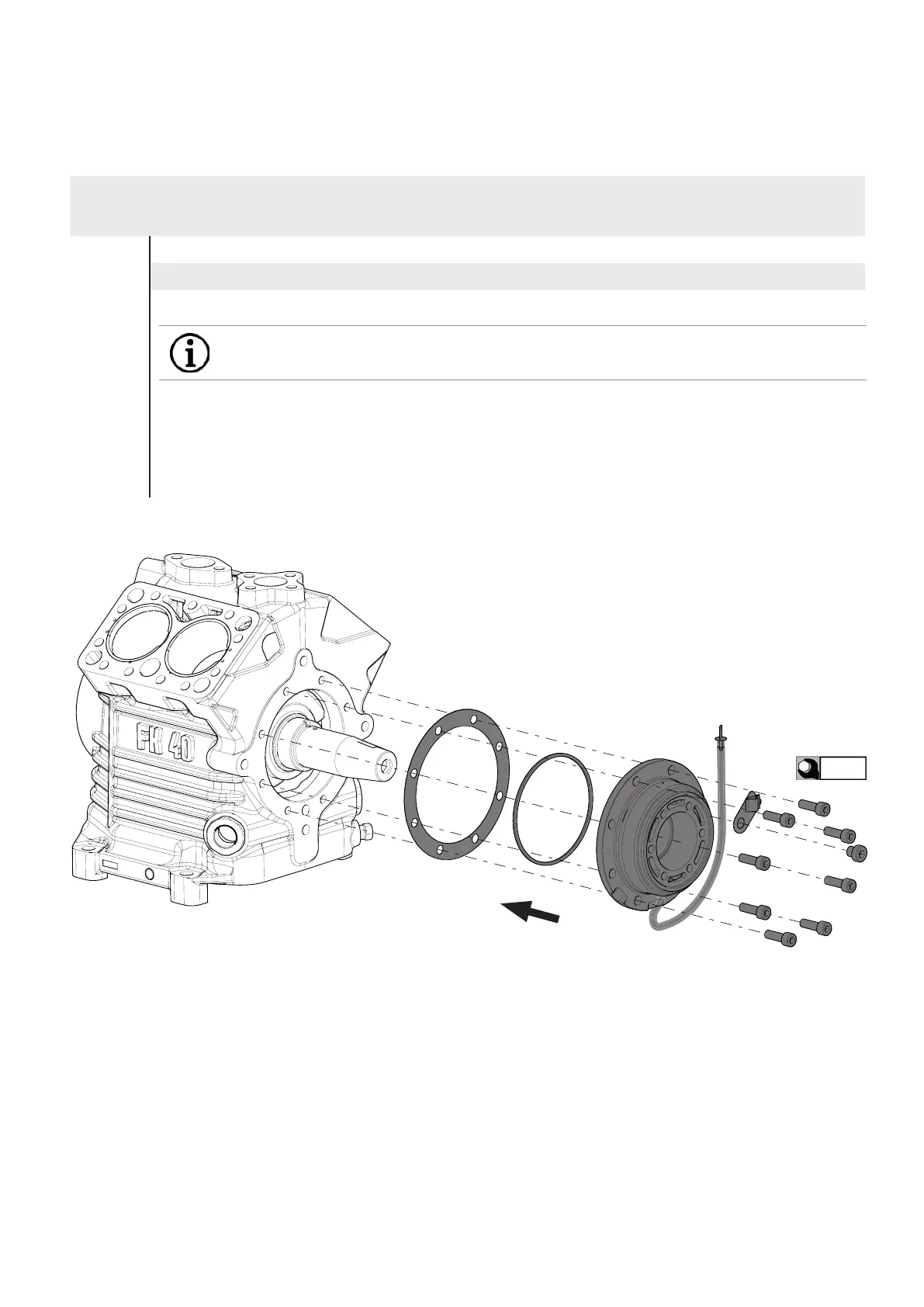

Installation of the front bearing ange
Position in
parts list
Parts list position: 2140, 2120
Tools: Allen key 6 mm
Working course
745
740
730, 740
750
- Apply oil to the O-ring and place it into the groove in the bearing ange
- The sealing surfaces have to be clean. Slightly oil seals
- Install the front bearing ange with gasket to the body so that the hole for the clamping ring
faces upwards
- Tighten the screws (M8x25) crosswise
12 I Assembly of compressor
34 Nm
INFO Observe the tightening torques!
