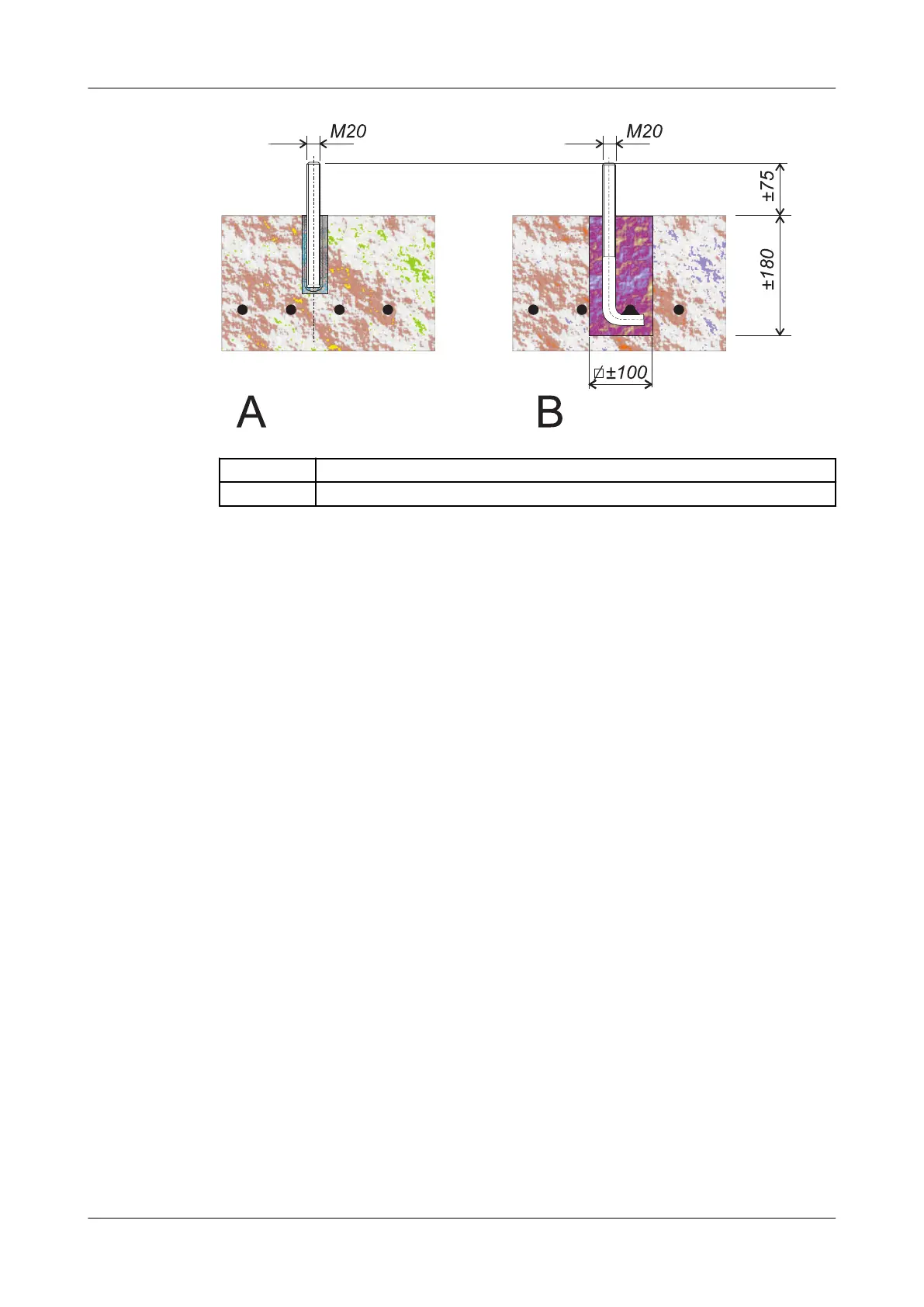

Fig.5
A Chemical anchor
B Grouted anchor, grounded to reinforcing steel
It is recommended to consult a concrete specialist/ constructor for the following
items:
•
The compound of the concrete with/without reinforcement.
•
The exact grouting depth (dependent on the soil conditions).
•
Installing foundation onto an existing floor, with sealing corkboard or vibration
isolators.
1.3.5.2 Anchoring
After the concrete block has cured the anchors should be installed as shown
above and in case of a package in accordance with the package lay out drawing.
Templates should be made to locate the anchor bolts or chemical anchors to
match the holes in the bottom flange of the base frame.
Grout the mortar according to the supplier instructions. Install chemical anchors
as illustrated in Figure 6, Page 19 and according to the instructions of the
anchor supplier.
