CYLINDER NUMBERING, BOOSTER AND SINGLE-STAGE OPERATION
Cylinder numbering

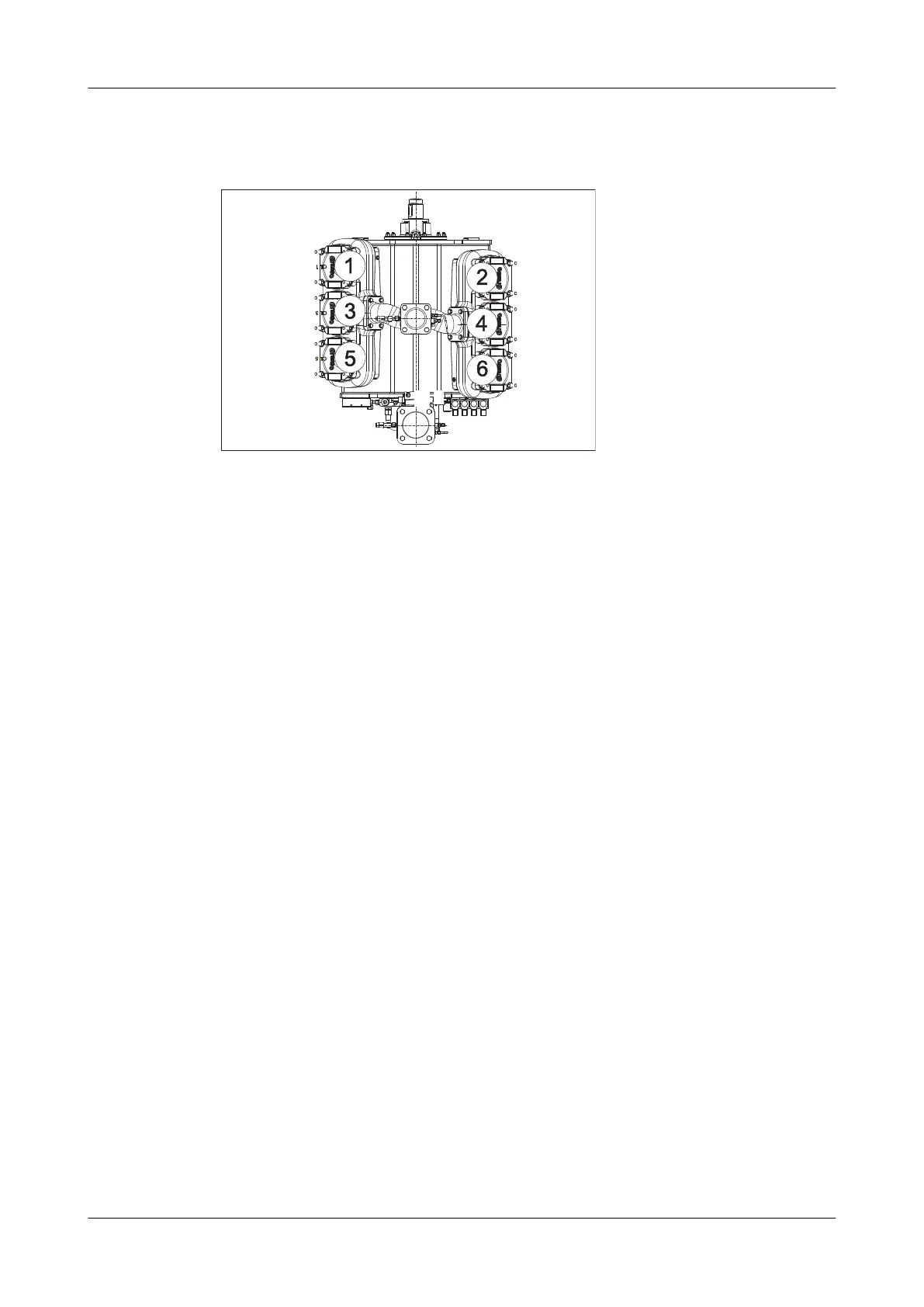

Fig.1: Example cylinder numbering 6 cylinder compressor
Booster or single-stage operation
1.
Booster operation applies if condensing temperature < +5
o
C
2.
Single-stage operation applies if condensing temperature >= +5
o
C
