Geberit HDPE - Pipe Specification Geberit HDPE

10

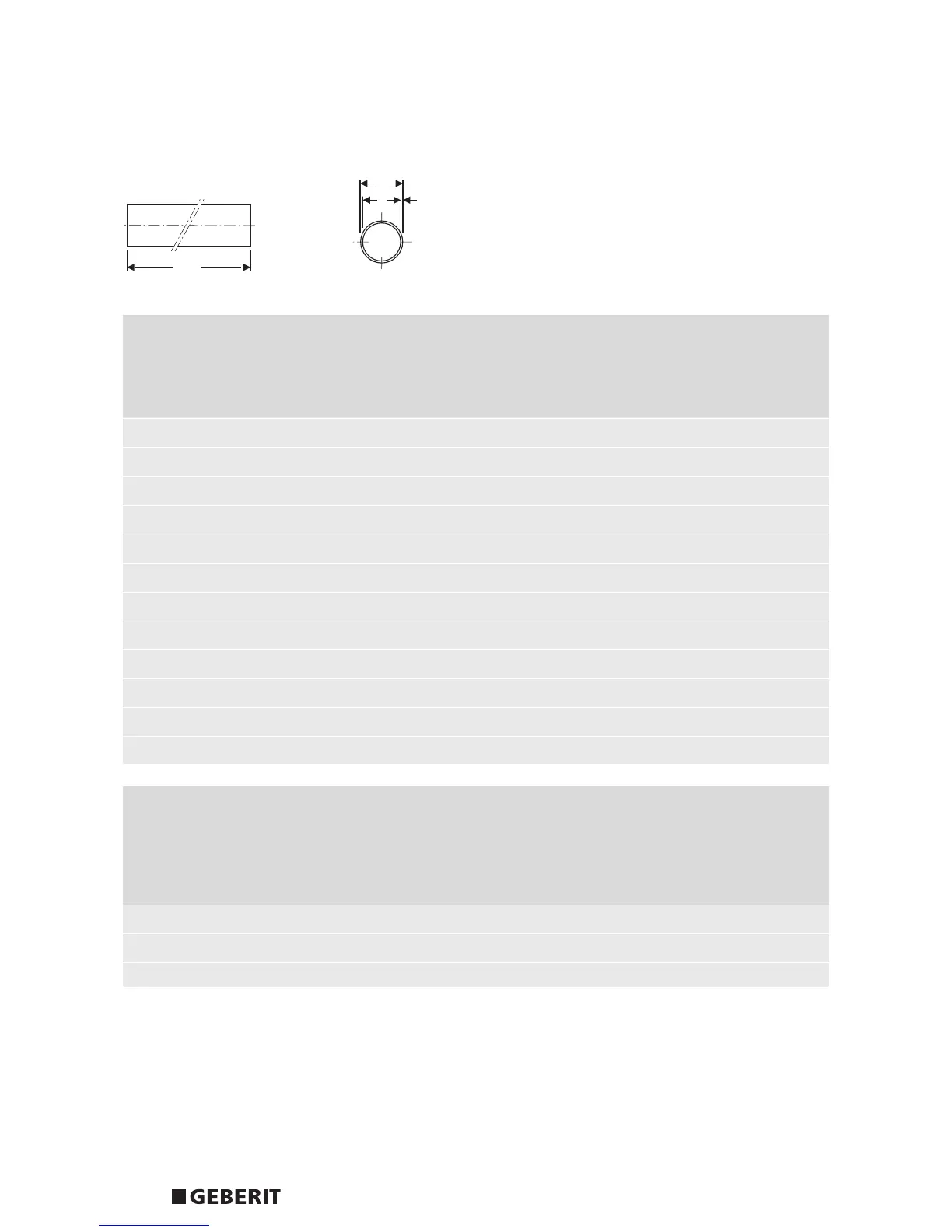

1.4 Pipe specification Geberit HDPE
Standard length of Geberit HDPE pipes is 5 metres (5000mm).
ISO = International Standard Organisation.
HDPE pipes
Nominal Wall Inside Area Weight Weight Series
O/D thickness dia. empty full (ISO)
d (mm) s (mm) di (mm) A (cm
2
) kg/m kg/m S PN Number Article No.
40 3 34 9 0.331 1.239 6.3 8.1 360.000.16.0
50 3 44 15.2 0.420 1.940 8 6.4 361.000.16.0
56 3 50 19.6 0.471 2.434 - 5.7 363.000.16.0
63 3 57 25.4 0.536 3.087 10 5 364.000.16.0
75 3 69 37.3 0.644 4.383 12.5 4.1 365.000.16.0
90 3.5 83 54.1 0.903 6.313 12.5 4 366.000.16.0
110 4.3 101.4 80.7 1.350 9.424 12.5 4 367.000.16.0
125 4.9 115.2 104.5 1.750 12.171 12.5 4 368.000.16.0
160 6.2 147.6 171.1 2.840 19.947 12.5 4 369.000.16.0
200 7.7 184.6 268.4 4.442 31.158 12.5 4 370.050.16.0
250 9.7 230.6 418.2 6.993 48.683 12.5 4 371.050.16.0
315 12.2 290.6 663.8 11.083 77.289 12.5 4 372.050.16.0
Nominal Wall Inside Area Weight Weight Series
O/D thickness dia. empty full (ISO)
d (mm) s (mm) di (mm) A (cm
2
) kg/m kg/m S PN Number Article No.
200 6.2 187.6 276.4 3.580 31.216 16 3.2 370.000.16.0
250 7.8 234.4 431.5 5.630 48.774 16 3.2 371.000.16.0
315 9.8 295.4 685.3 8.920 77.442 16 3.2 372.000.16.0
Thinner wall HDPE pipes Only use for above ground drainage and low (less than 450m bar negative pressure)
siphonic rainwater applications
Introduction
Geberit Drainage Systems
5 (m)
d
s
di
A
cm
2
d
