Geberit HDPE - Spacing for Bracketry

33

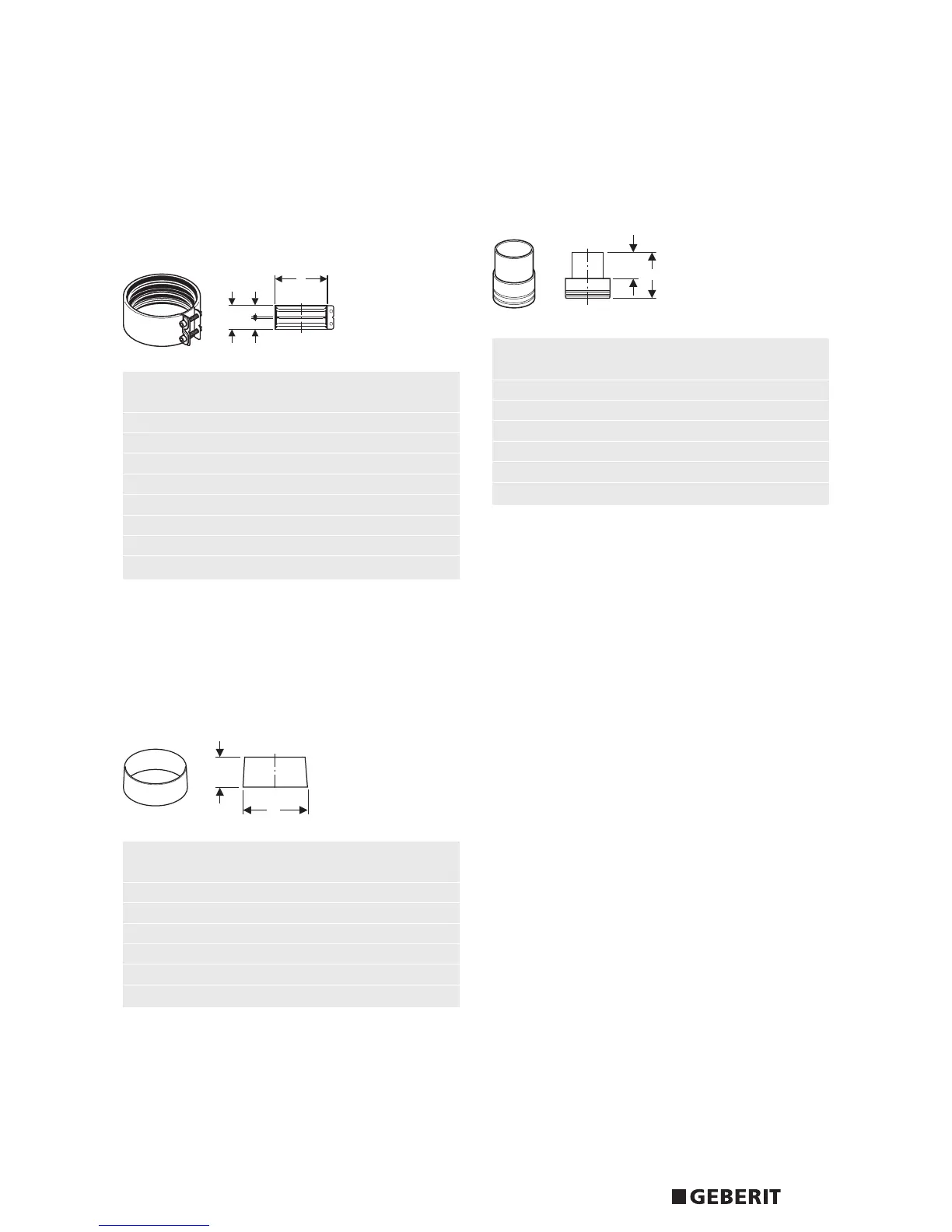

Clamping coupling
Metal clamp joint for mechanical jointing of HDPE pipes
to pipes and fittings of other materials. Suitable for
adapting to Ensign cast iron. To be used in conjunction
with Reinforcing ring.
Adapter to cast iron
Article no. dØ d1Ø
mm mm
359.427.00.1 54-56 68
359.429.00.1 63-64 63-64
359.430.00.1 63-64 68
359.432.00.1 75-76 68
359.436.00.1 75-76 89-90
359.438.00.1 89-90 89-90
359.441.00.1 108-110 108-110
359.449.00.1 159-160 159-160
d
X
d1
D
E
E
H
Reinforcing ring
Metal ring for insertion into HDPE pipe to provide
support to resist distortion of pipe when clamping
coupling is applied.
Reinforcing ring for adapter clamp
Adapter to clay socket
HDPE adapter for connecting into clay sockets by cold
caulking.
Adapter to clay/fire element
Article no. dØ d1Ø
mm mm
359.455.00.1 56 50
359.456.00.1 63 57
359.457.00.1 75 69
359.458.00.1 90 83
359.459.00.1 110 101.4
359.464.00.1 160 147.6
Article no. dØ d1Ø
mm mm
367.739.16.1 110 132
368.739.16.1 125 159
369.739.16.1 160 186
370.739.16.1 200 242
371.739.16.1 250 298
372.739.16.1 315 352
H
di
d1
d
H
h
Geberit Drainage Systems
Jointing methods
