Gecko Y Series Startup Guide

10

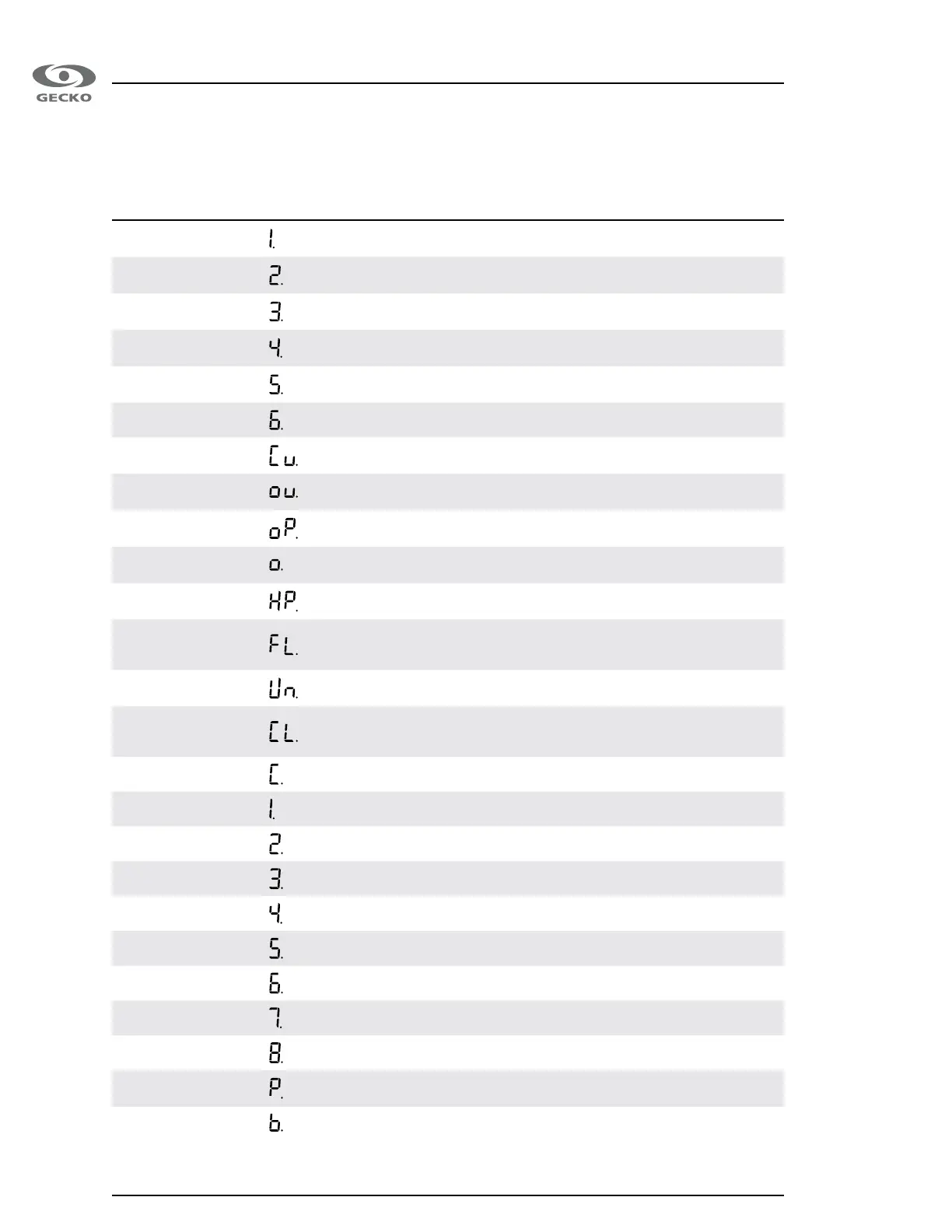

Field programming options for control systems
Parameter Screen Options Description
Output 1A
--
--,1H,1L,2H,2L,3H,3L,4H,
4L,P5,BL,CP,O3,L2,H
Accessory connected to the relay of output1A
Output 1B
--
--,1H,1L,2H,2L,3H,3L,4H,
4L,P5,BL,CP,O3,L2,H
Accessory connected to the relay of output1B
Output 2
--
--,1H,1L,2H,2L,3H,3L,4H,
4L,P5,BL,CP,O3,L2,H
Accessory connected to the relay of output2A
Output 3
--
--,1H,1L,2H,2L,3H,3L,4H,
4L,P5,BL,CP,O3,L2,H
Accessory connected to the relay of output3A
Output 4
--
--,1H,1L,2H,2L,3H,3L,4H,
4L,P5,BL,CP,O3,L2,H
Accessory connected to the relay of output4A
Output 5
--
--, H Accessory connected to the relay of output5A
CP Usage
-
CP standard = 0
CP always on = 1
Usage of the circulation pump
Ozonator usage
-
Ozonator with filtration = 0
Ozonator always on = 1
Usage of the ozone generator
Ozonator pump
-
Circulation pump = 0
Pump1 = 1
Pump associated with the ozone generator
Ozonator type
-
Standard (UV) = 0
Timed (Corona) = 1
Ozone generator type
Heater pump
-
Circulation pump = 0
Pump1 = 1
Pump associated with the heater
Filter config�
-
Purge only = 0
With circ� Pump = 1
With Pump 1 low speed = 2
Configuration of the filtration cycle
Temp� units
-
°F = 0
°C = 1
Displayed temperature unit
Clock format
-
No time displayed = 0
AM/PM mode = 1
24H mode = 2
Clock display mode
Cool down
--
30 to 240 seconds Cool down of the heater element in seconds
Output 1A current
--
1 to 20 amps Current of accessory connected to output 1A
Output 1B current
--
1 to 15 amps Current of accessory connected to output 1B
Output 2 current
--
1 to 15 amps Current of accessory connected to output 2A
Output 3 current
--
1 to 15 amps Current of accessory connected to output 3A
Output 4 current
--
1 to 15 amps Current of accessory connected to output 4A
Output 5 current
--
1 to 17 amps Current of accessory connected to output 5A
Direct current
--
1 to 5 amps Current of the direct output
Minimum input current
--
10 to 20 Minimum input current (breaker size)
Number of phases
--
1 or 2 (UL)
1, 2 or 3 (CE)
Number of phases/breaker
Input current
--
10 to 60 A single phase (UL and CE)
10 to 48 A dual phase (UL)
10 to 40 A dual phase (CE)
10 to 20 A triple phase (CE)
Available household current (Maximum input
current)
Table 2 – in.xe (older versions only)
