Gedore Torcofix SE - Page 14

14
EN

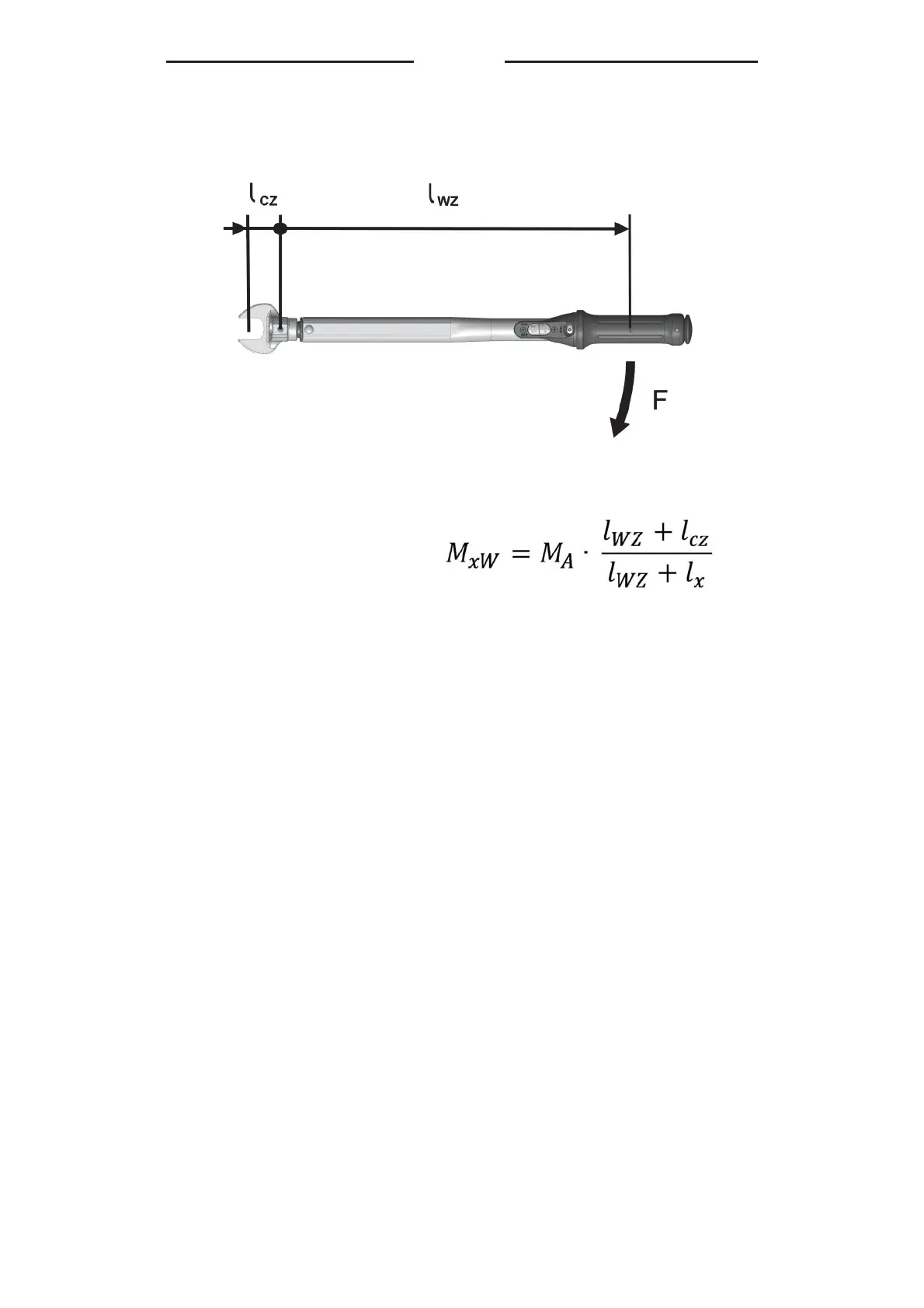

Calculation of the torque setting for divergent depth gauges in
respect of the spigot end adaptor:
The new torque setting M
xW
is calculated according to the
following formula:
M
xW
= The torque which must be set on the torque
wrench scale.
M
A
= The torque with which the screw or nut
is to be tightened.
l
WZ
= The distance between the center of the torque
wrench adaptor's locking pin and the center of
the handle (see table in section 7).
l
CZ
= Standard gauge (see table in Section 7 or
certificate)
l
x
= The distance between the center of the torque
wrench adaptor's locking pin and the center of
the screw or nut (also referred to as tool
accessory depth gauge).
