15
EN

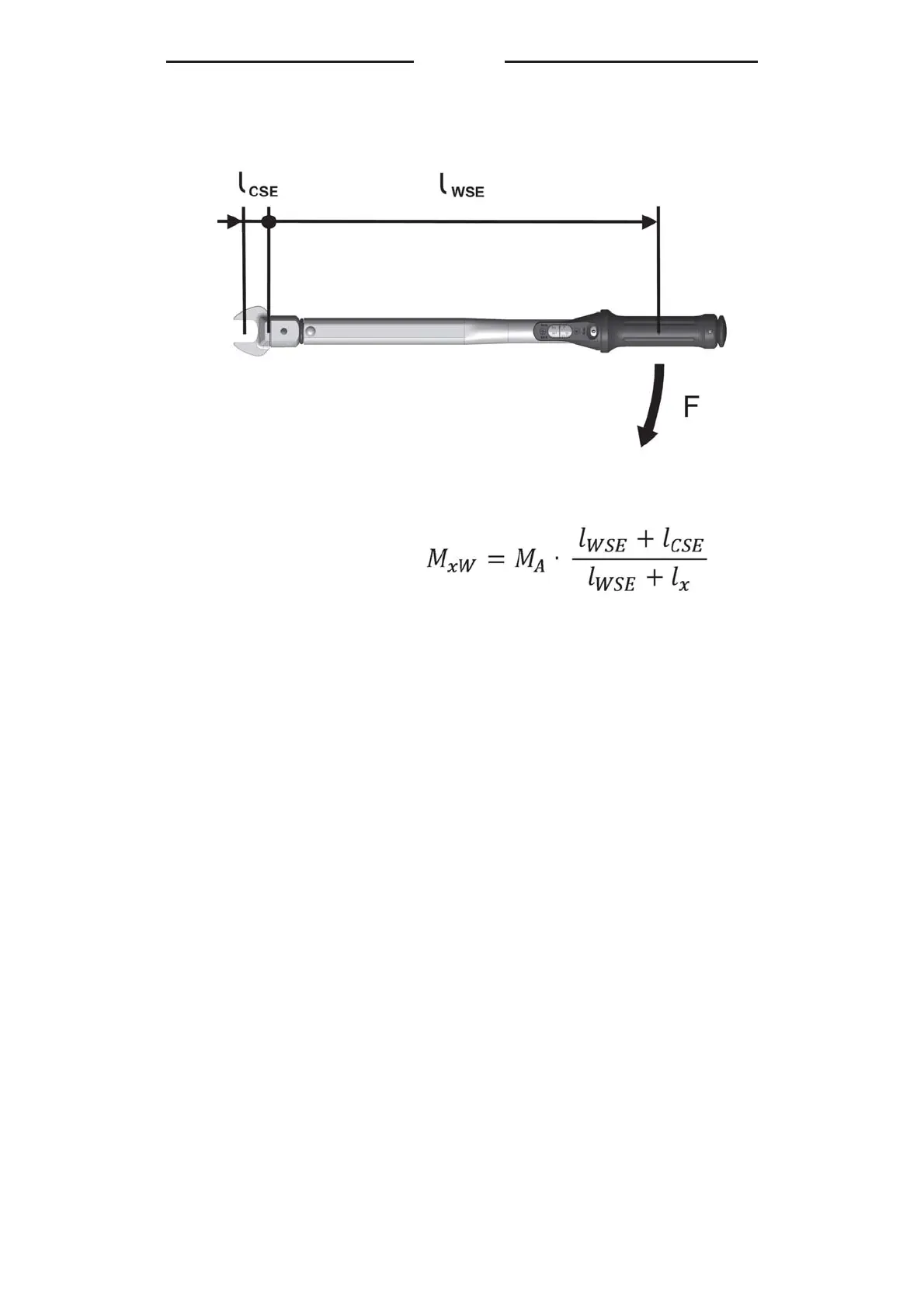

Calculation of the torque setting for divergent depth gauges in
respect of the SE adaptor:
The new torque setting M
xW
is calculated according to the
following formula:
M
xW
= The torque which must be set on the torque
wrench scale.
M
A
= The torque with which the screw or nut
is to be tightened.
l
WSE
= The distance between the face of the torque
wrench SE adaptor and the center of the handle
(see table in section 7).
l
CSE
= Standard gauge (see table in Section 7 or
certificate)
l
x
= The distance between the face of the torque
wrench SE adaptor and the center of the screw
or nut (also referred to as tool accessory depth
gauge).
