User Guide Electrical Line Shaft for ADV200 Page 51 of 72
6.3 Encoder transmission with Fast Link
The example shows the configuration of a system with Physical Master. It is applicable to both Chain and
Equal Ranking configurations.

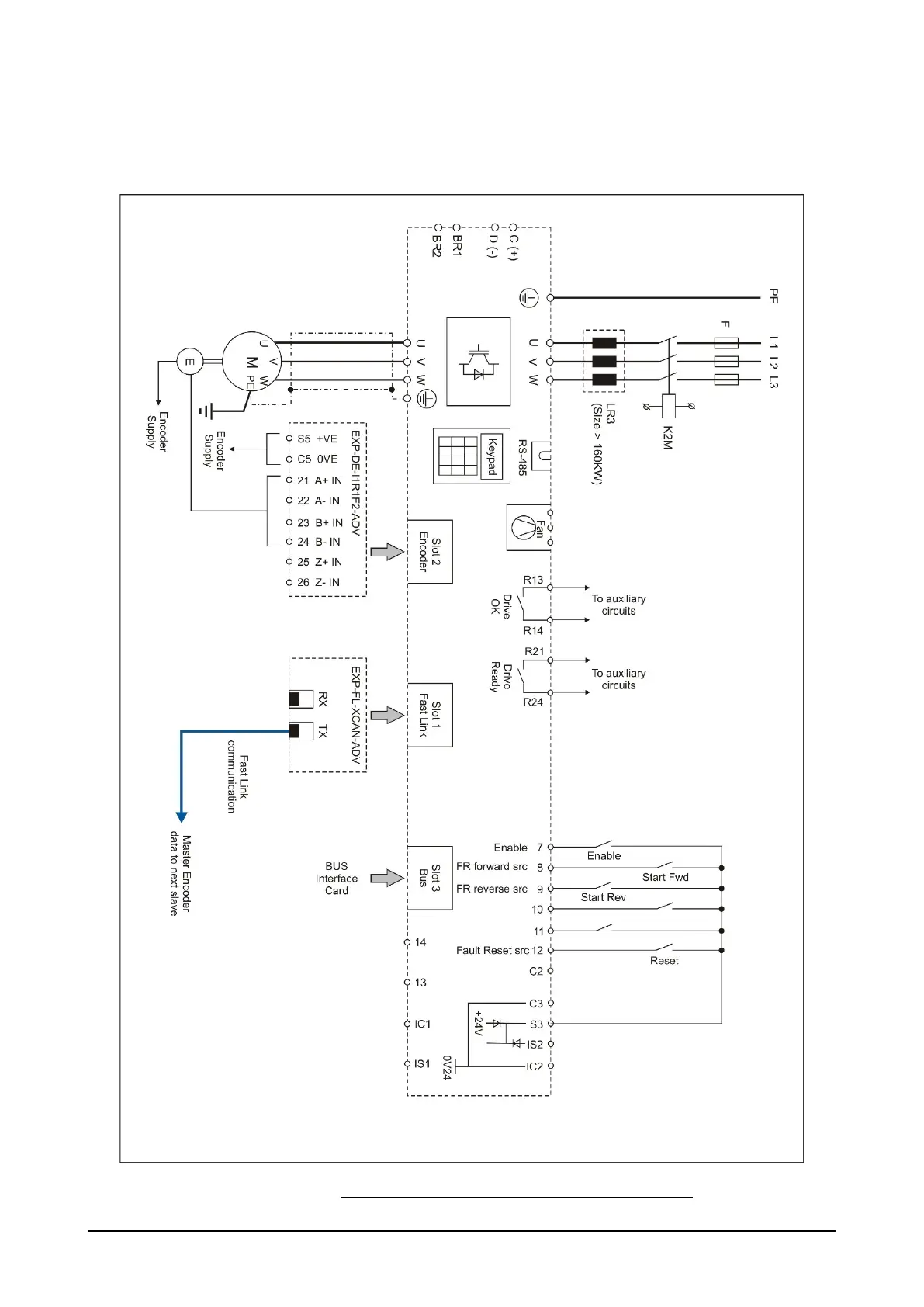

Figure 19. Fast Link Communication with Physical Master – Master Module
