User Guide Electrical Line Shaft for ADV200 Page 52 of 72
The example shows the configuration of a system with Virtual Master. It is applicable to both Chain and Equal
Ranking configurations. “Master Module” is the drive where the Virtual master is generated.

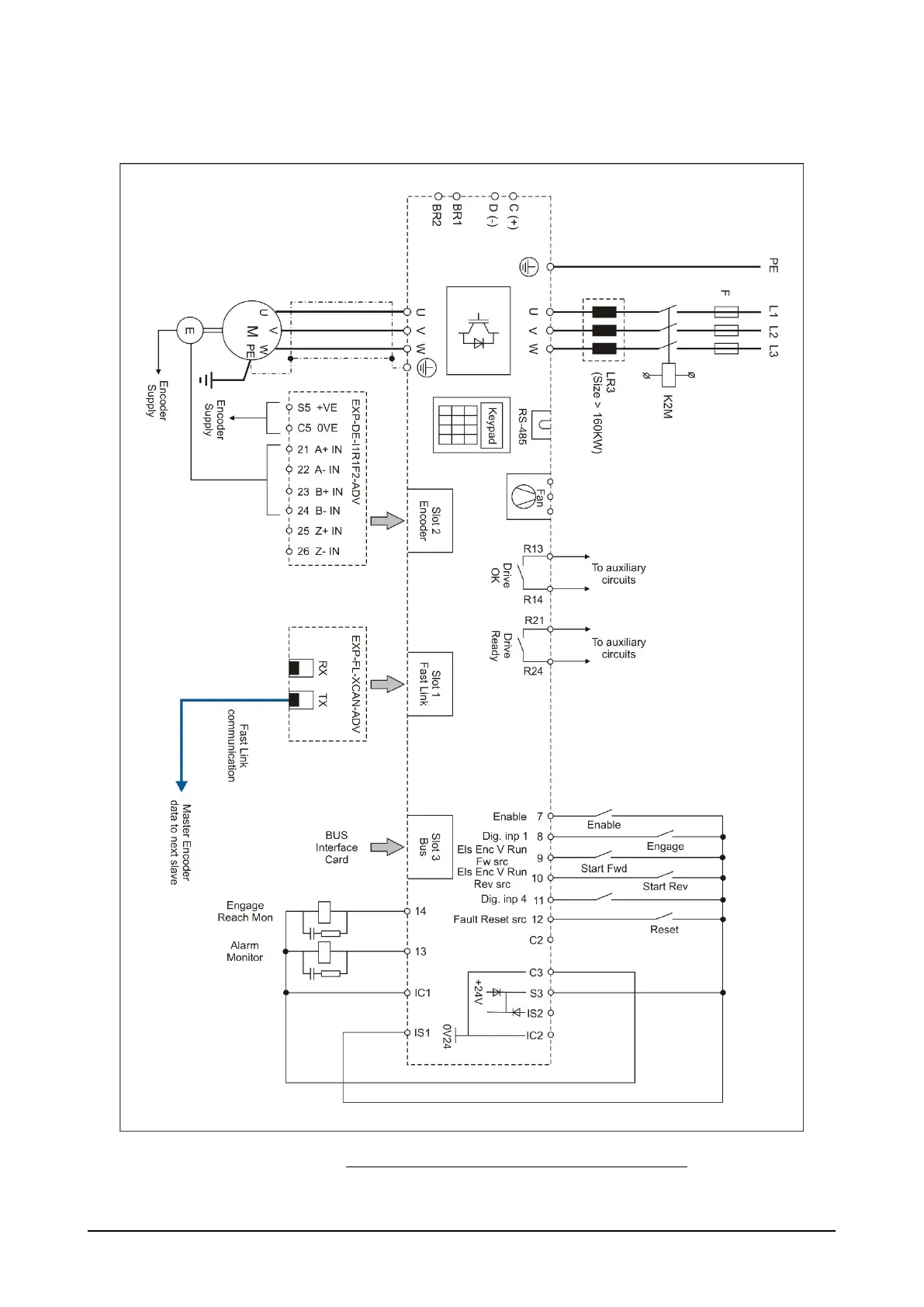

Figure 20. Fast Link Communication with Virtual master – Master Module
