gefran BDI50-3037-KBX-4-NP-F User Manual

4-22
11-19
Speed loop integration
gain
0 ~65535 800
11-20
Speed loop differential
gain
0 ~65535 0
11-21 Stop Key Selection
0: Enable Stop Key when Run
Command
not from Keypad
1: Disable Stop Key when Run
Command not from Keypad
0

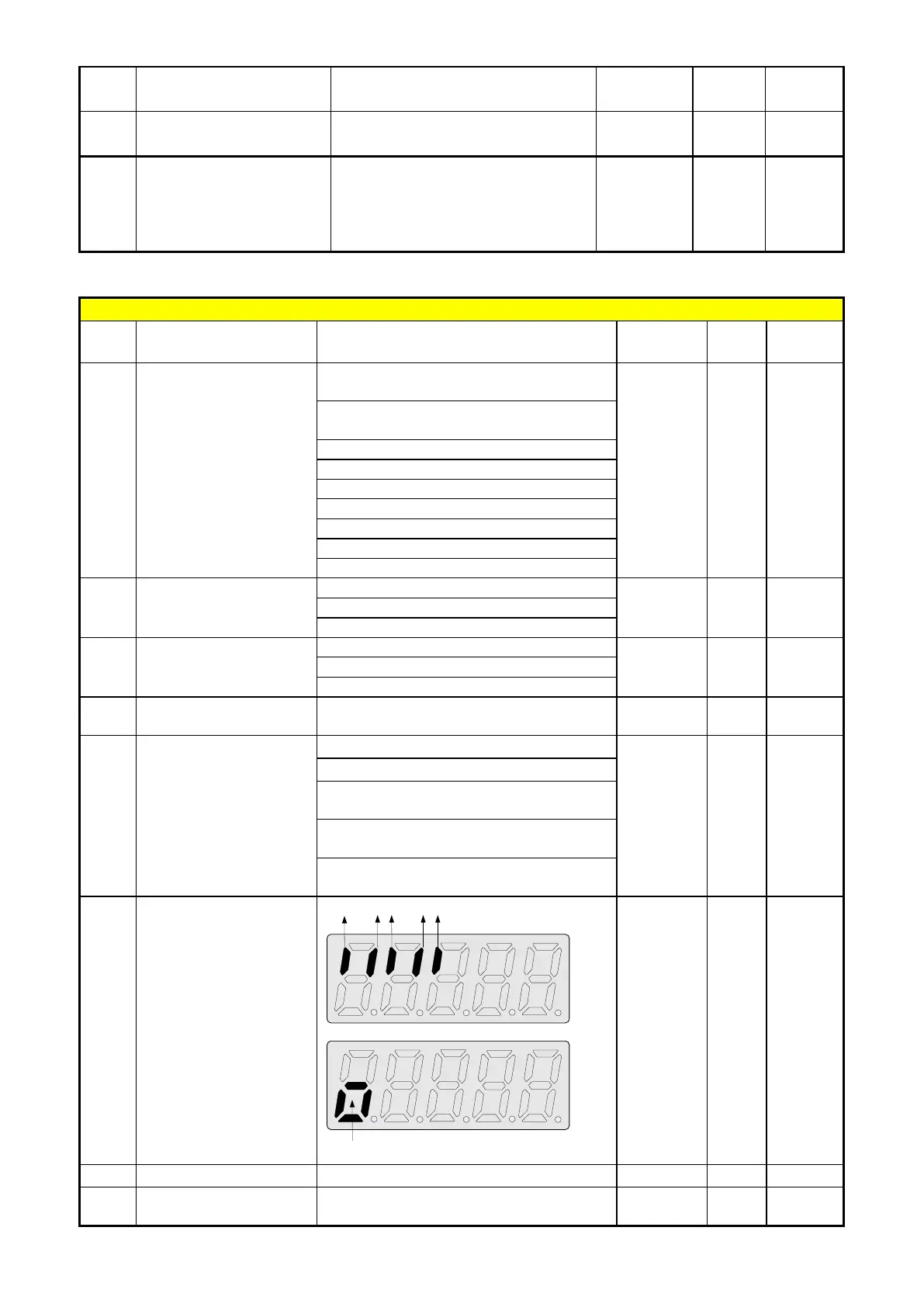

Group12 Digital Display & Monitor functions
No. Description Range
Factory
Setting
Unit Note
12-00
Extended Display Mode
00000 ~77777.
Each digit can be set to 0 to 7
00321 - *1
0: Default display
(frequency&parameters)
1:Output Current
2:Output Voltage
3:DC voltage
4: Heatsink Temperature
5:PID feedback
6:Analog Signal Input. (AVI)
7:Analog Signal Input. (ACI)
12-01
PID Feedback Display
format
0: Integer (xxx)
0 - *1
1:One decimal Place (xx.x)
2:Two Decimal Places (x.xx)
12-02
PID Feedback Display
Unit Setting
0:xxx--
0 - *1
1:xxxpb (pressure)
2:xxxfl (flow)
12-03
Custom Units (Line
Speed) Value
0~65535 1500/1800 rpm *1
12-04
Custom Units (Line
Speed) Display Mode
0:Drive Output Frequency is Displayed
0 - *1
1:Line Speed. Integer.(xxxxx)
2:Line Speed..One Decimal Place
(xxxx.x)
3:Line Speed.Two Decimal Places
(xxx.xx)
4:Line Speed.Three Decimal Places
(xx.xxx)
12-05
Inputs and output
Logic status display
( S1 to S5) & RY1
S1 S2 S3 S4 S5
RY1
----- - *4
12-06
Output Power
----
0.0
kW
12-07
Motor Current
Percentage
----
0 %

gefran BDI50-3037-KBX-4-NP-F Specifications

General

Brand	gefran
Model	BDI50-3037-KBX-4-NP-F
Category	Inverter
Language	English
