• Gate A20 Option: selects GateA20 controller from among chipset and keyboard controllers
• Typematic Rate Setting: controls the speed and delay with which the system repeats a key kept pressed.
• Security Option: : password request at every system boot or only at access to system setup
• APIC Mode: selects APIC mode.
• OS Select for DRAM > 64MB: selects operating system with more than 64MB of dynamic RAM.
• Video BIOS Shadow: enables copy of BIOS video from ROM to RAM.
• C8000-CBFFF Shadow: : enables copy of system components firmware in memory segments from C8000 to
CBFFF.
• Small Logo(EPA) Show: enables display of logo on screen.
• EEPROM Write Protect: protects EEPROM memory containing system configuration.

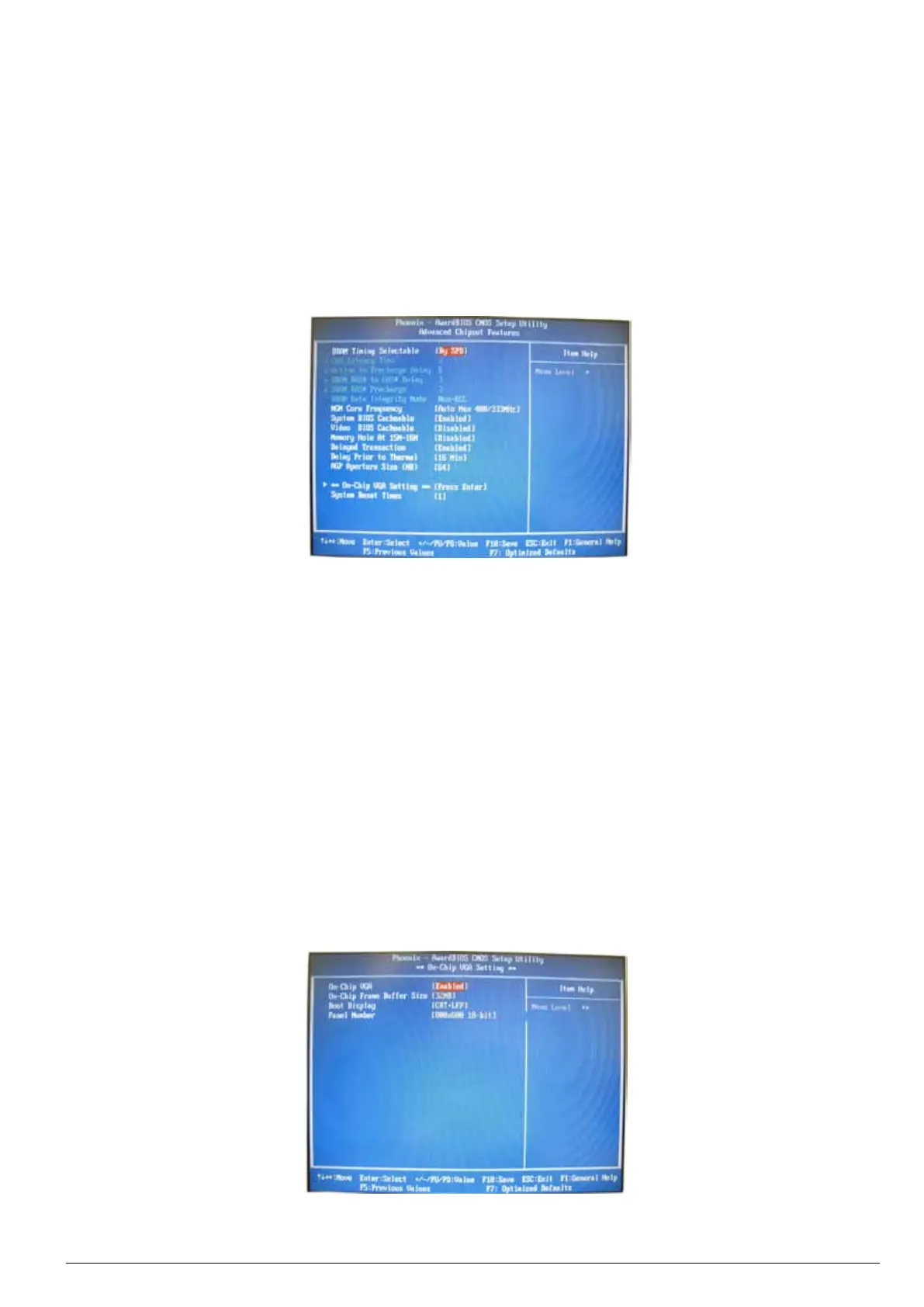

Chipset Features Setup
• DRAM Timing Selectable: timing of dynamic RAM selectable from SPD or manually.
• CAS Latency Time: selects number of CAS latency cycles (with synchronous DRAM)
• Active to Precharge Delay: delay in addressing to different lines of a memory chip.
• DRAM RAS-to-CAS Delay: delay between CAS and RAS strobe signals.
• DRAM RAS Precharge: DRAM RAS precharge time.
• DRAM Data Integrity Mode: checks ECC characteristics of memory controller.
• MGM Core Frequency: MGM core frequency setting ( 400/266/133/200 MHz).
• System BIOS Cacheable: enables caching of BIOS in memory zone from F0000h to FFFFFh.
• Video BIOS Cacheable: enables caching of Video BIOS.
• Memory Hole At 15M-16M: reserves memory area for ROM of ISA adapter.
• Delayed Transaction: enables delayed transactions (conformity to standard PCI version 2.1)
• Delay Prior to Thermal: selects 4, 8, 16, 32 minutes.
• AGP Aperture Size: real size of graphic aperture for a particular GMCH configuration.
• On-Chip VGA: enables VGA controller.
• On-Chip Frame Buffer Size: selects size of On-Chip Frame Buffer (1MB or 8MB).
• Boot Display: selects display device.
• Panel Number: selects display resolution
To Next Page
