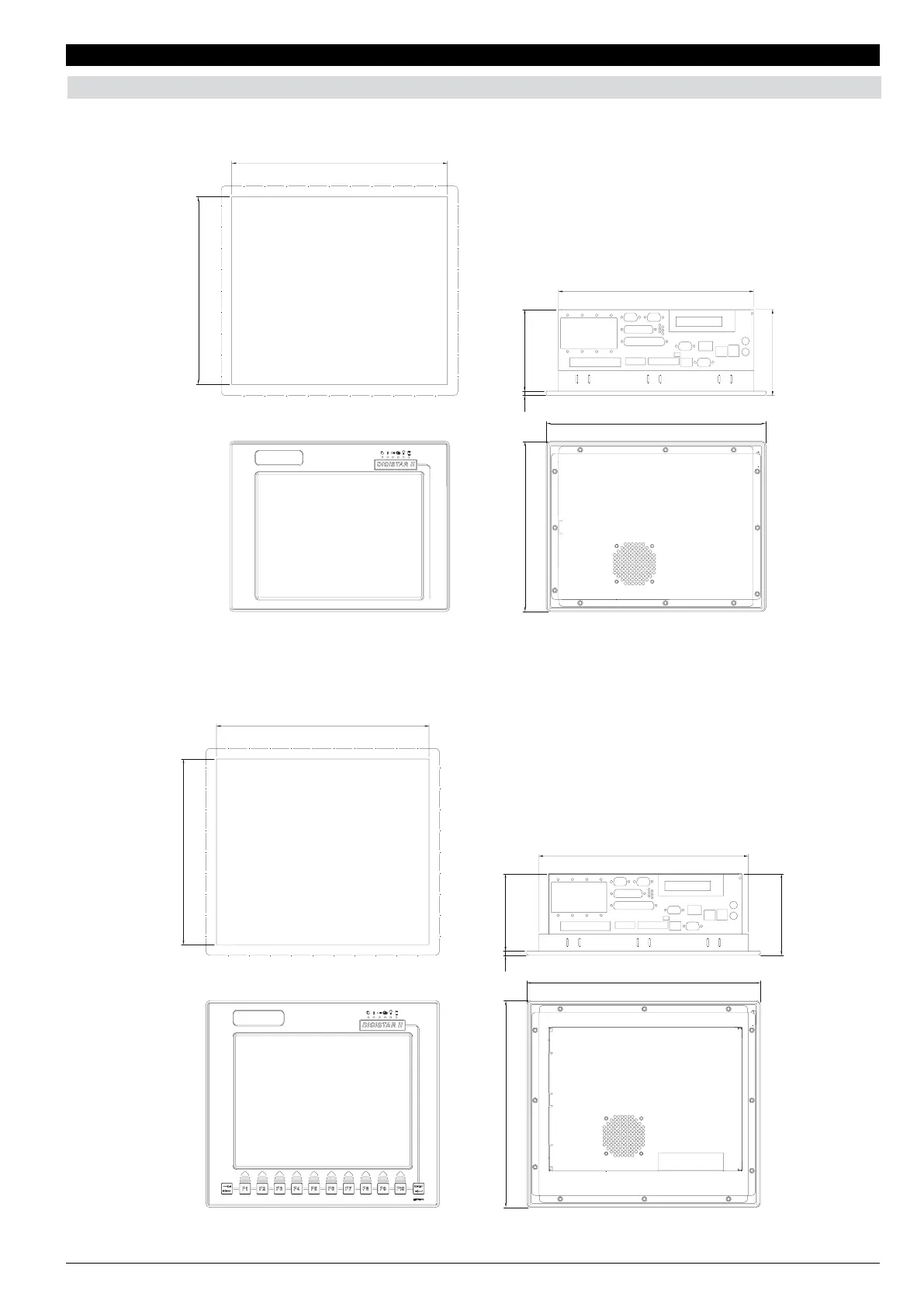

DIGISTAR II: MECHANICAL CHARACTERISTICS AND DIMENSIONS
2 • INSTALLATION AND CONNECTION
DIGISTAR II 10,4”
275
280
115,16
212
239
121,1
309
DIGISTAR II 12,1”
298,91
303
264
294,5 110,16
116,1
333
