gefran SIEIDrive ADL300 User Manual

1S9STOEN_26-5-17_ADL300_STO_STO Pag. 19/30
Pin name
Function
TB3 9 - EN HW
Drive ENABLE signal. 24v DC should be applied
TB3 11 - DCOM
COM for ENABLE signal.
TB4 7- RO 1O
DRIVE OK feedback relay
TB4 8- RO 1C
COM for DRIVE OK feedback relay
Table 6 Connector pin-out concerning safety related function onto ADL300 Basic.
Figure 9 ADL300 with option card conFiguretions.

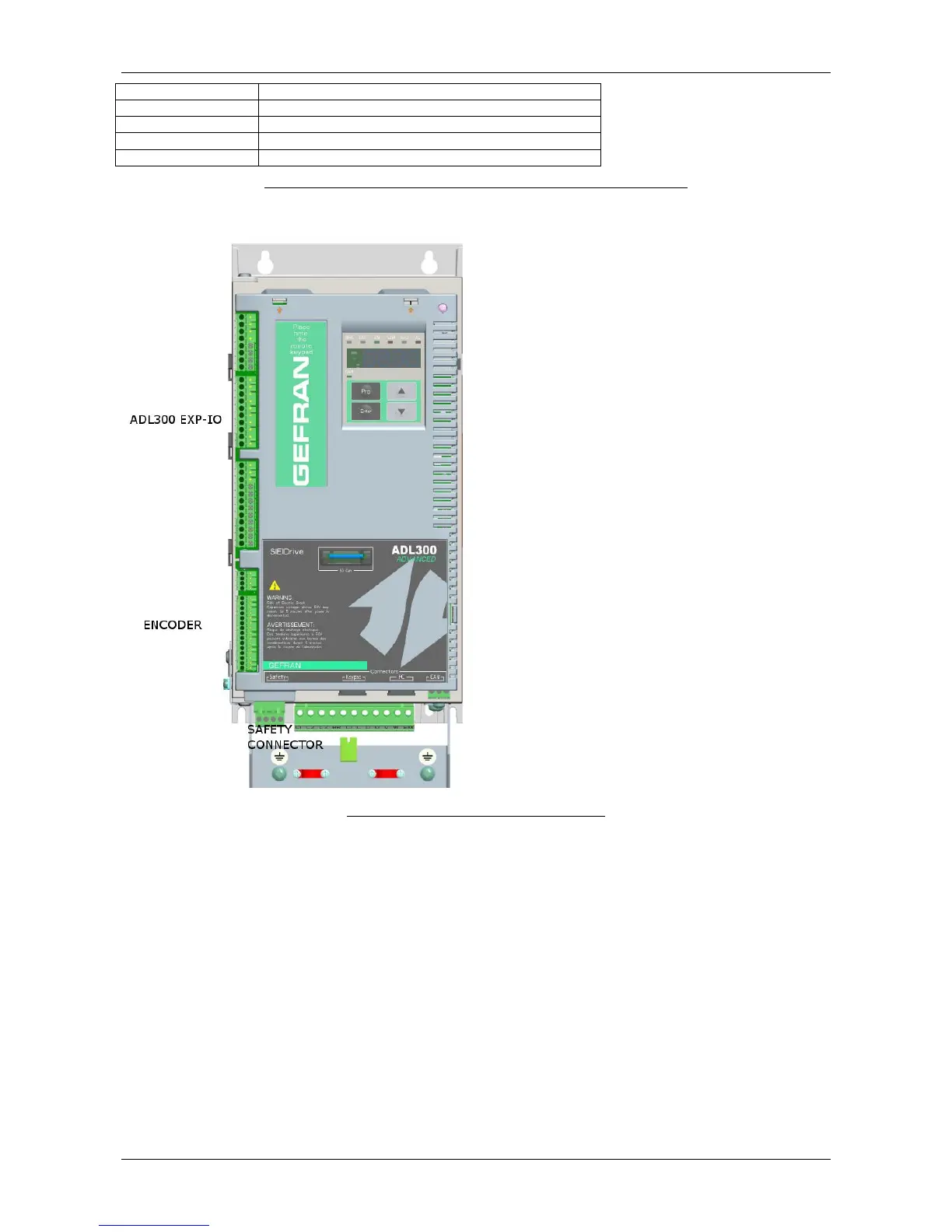

Following figure show the safety related pin names and positions on EXP-IO-D5R3. ENABLE
signal always uses the EN HW name.
