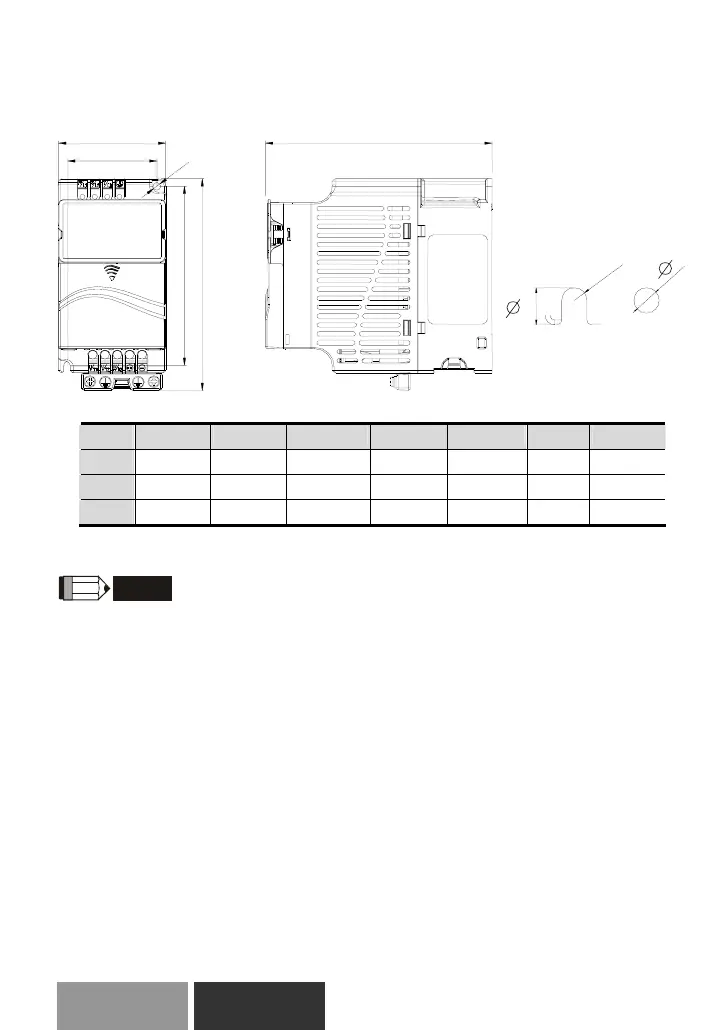

Dimensions
Dimensions are in millimeter and [inch]
W
W1
H1
H
D
D
Frame W W1 H H1 D Ø ØD
A 72.0[2.83] 60.0[2.36] 142.0[5.59] 120.0[4.72] 152.0[5.98] 5.2[0.04] 7.6[0.06]
B 100.0[3.94] 89.0[3.50] 174.0[6.86] 162.0[6.38] 152.0[5.98] 5.5[0.22] 9.3[0.36]
C 130.0[5.12] 116.0[4.57] 260.0[10.24] 246.5[9.70] 169.2[6.66] 5.5[0.22] 9.8[0.38]
NOTE
Frame A: ADV50-1004-XXX-2M-F/4F, ADV50-1007-XXX-2M-F/2T/4F, ADV50-1015-XXX-2T/4F
Frame B: ADV50-2015-XBX-2MF, ADV50-2022-XBX-2M-F/2T/4F, ADV50-2037-XBX-2T/4F
Frame C: ADV50-3055-2T/4F, ADV50-3075-XBX-2T/4F, ADV50-3110-XBX-4F
