918496/GP0313 59
Operator’s Seat Adjustment
Never adjust the operator’s seat when the
engine is running.
Adjust the operator’s seat so all controls are easy to reach and the pedals can be
completely depressed with your back against the seat back.
A. Forward/rearward adjust-
ment: Pull the lever up,
adjust the seat and release
the lever. Check that the seat
is locked in place.
B. Weight adjustment: While
sitting in the seat, rotate the
knob until the desired ten-
sion is reached.
C. Recline adjustment: Pull
the front lever up, recline the
seat back as desired and
release the lever. Check that
the seat is locked in place.
D. Height adjustment (AL
400/500 Series): Rotate
knob until the desired seat
height is reached.
E. Seat Belt: See the following
section.
F. Seat tension indicator (AL
100/200/300 Series): Adjust
weight adjustment knob (B)
until seat tension indicator is
centered.

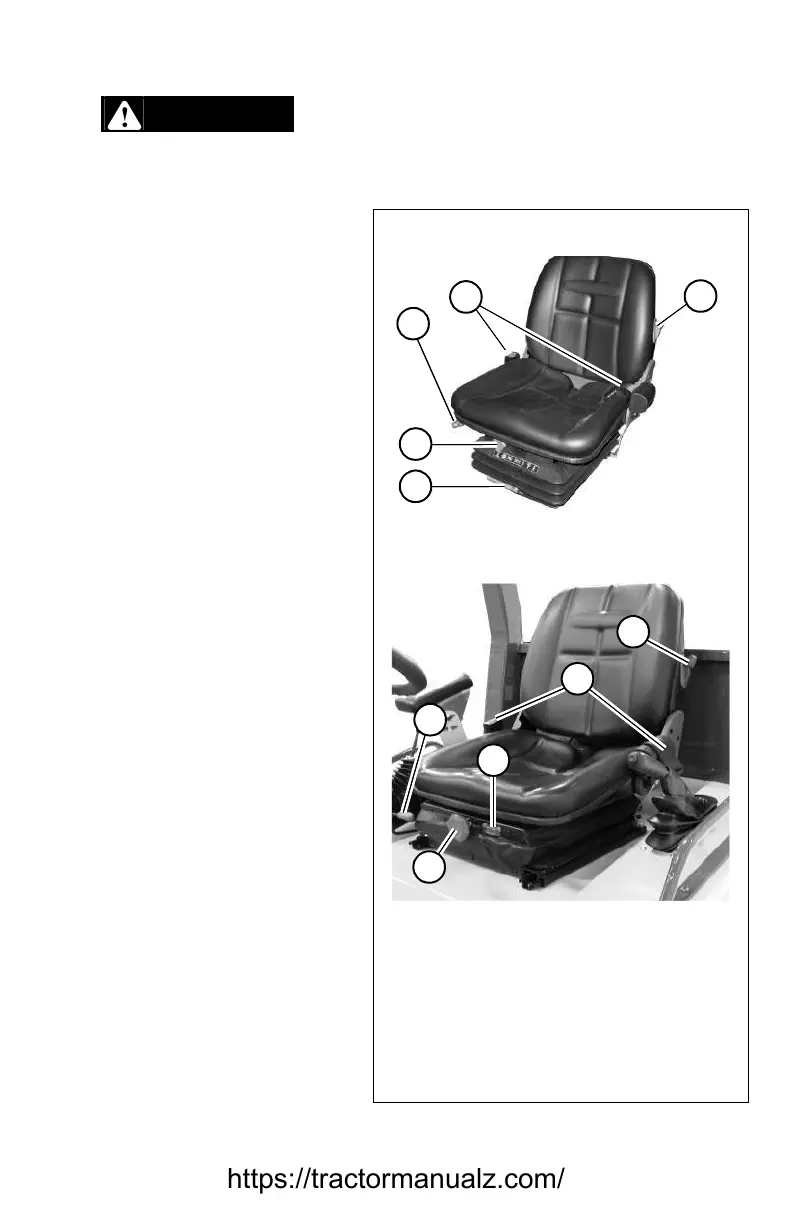

Figure 12 – Operator’s Seat Adjustment
A. Forward/rearward lever
B. Weight adjustment knob
C. Recline lever
D. Height adjustment knob
E. Seat belt
F. Seat tension indicator
A
D
B
C
E
AL 500, AL 400 Series
A
F
C
B
AL 100, AL 200, AL 300 Series
E
