Gehl RS6-34 Service Manual

RS5/6-34 Telescopic Handler HYDRAULICS
PRINTED IN U.S.A.8 601-16 913241/BP0508
Alt= to hide template information
Alt+ to display template information
Template Name: OML_2_col 0-00000
Template Date: 1994_04_22
STEP 9
G0805193
Shut the engine off. Remove the pressure gauge
from the SP test port (1) and install it on the JP test
port (2) on the flow divider.
STEP 10
G0805190
Start the engine. The pressure gauge should read
350 psi (24 bar).
STEP 11
Shut the engine off. If the pressure readings in either
Step 9 or 10 were incorrect and you had 3000 psi
(207 bar) in Step 8, replace the flow divider.
1
2

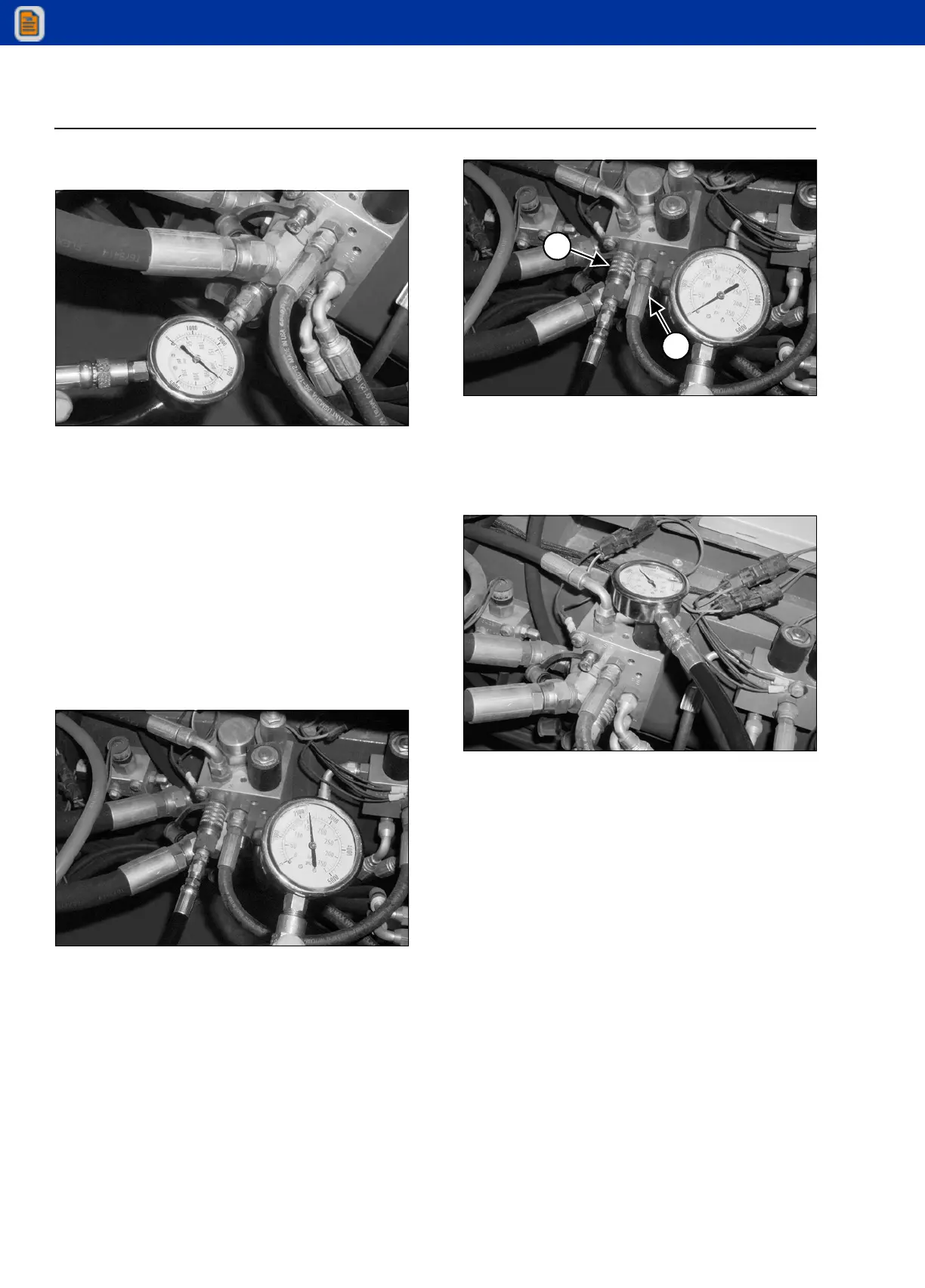

FLOW DIVIDER PRESSURE TEST
STEP 6
G0805118
Install a 5000 psi (345 bar) pressure gauge on the
MP test port on the flow divider. Start the engine and
fully retract the boom and hold. The pressure gauge
should read 3000 psi (207 bar).
STEP 7
Shut the engine off. If the pressure gauge reads
3000 psi (207 bar) continue with the next step.
If the gauge reads less than 3000 psi (207 bar)
pressure test the hydraulic pump.
STEP 8
G0805117
Install a 3000 psi (207 bar) pressure gauge on the
SP test port on the flow divider. Start the engine and
cramp the steering fully to the right or left. The
pressure gauge should read 2000 psi (138 bar).
