www.gemu-group.com 25 / 32 GEMÜ 1434 µPos

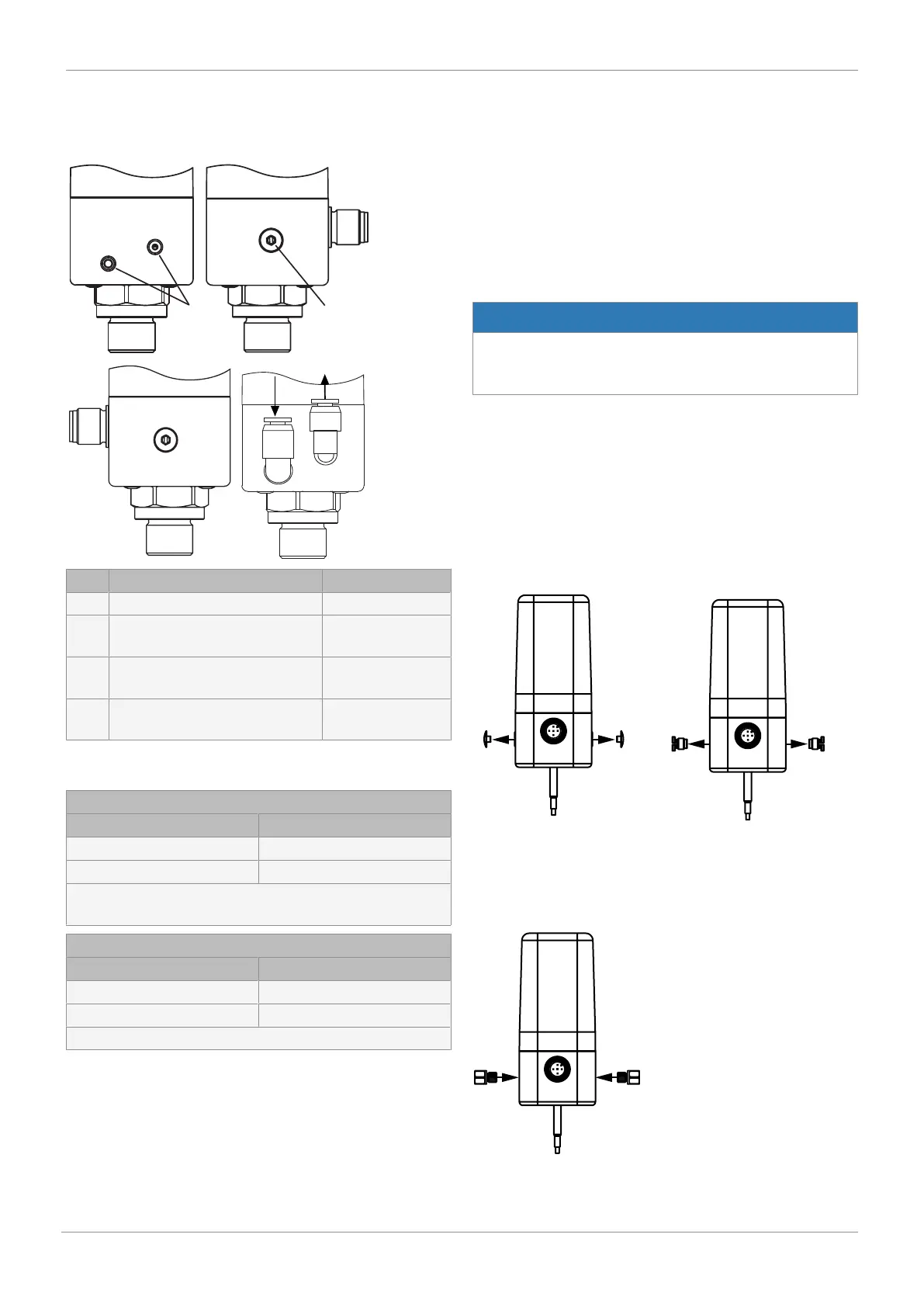

13 Pneumatic connection
13.1 Standard, single acting
1
2
M5
3
M6 x 0,75
1
2
E
No. Designation Connection size
1 Air supply connection P M5
2 Working connection for process
valve A1
M5
3 Venting connection R with integ-
rated check valve
M6 x 0.75*
E Housing ventilation with integ-
rated check valve
M6 x 0.75*
* Only relevant for exhaust air duct and/or increase of protection
class.
Fail safe function
Error Working connection A1
Electrical power supply failure vented
Pneumatic supply failure undefined
This fail safe function is not a substitute for specific plant
safety requirements.
Safety reaction
Error Working connection A1
Set value < 4.0 mA* vented
Set value > 20 mA or 10 V vented
* only for design with 4–20 mA set value input (code A)
13.2 Information for use in damp conditions
The following information is intended to help when installing
and operating the product in damp conditions.
1. Cables and pipework must be laid so that condensate or
rain water that remains on the pipework/cables cannot
enter the screw fittings of the product's M12 plugs.
2. Check that all cable glands of the M12 plugs and the fit-
tings are mechanically secured.
13.3 Converting to protection class IP 67
NOTICE
▶ Required appropriate pneumatic connections with M5
connection thread and pneumatic lines are not included
in the kit and must be provided by the user.
The conversion kit 1434 000 Z2 comprises:
• 1x threaded adapter, M6x0.75 to M5
• 1x O-ring
The conversion kit 1434 000 Z2 is required for piped air outlet
1x and for conversion to protection class IP67 2x. For an ex-
haust air duct, only connection 3 must be used in accordance
with the following description. To increase the protection
class, connection 3 and E must be used accordingly.
1. Switch off the pneumatic control air supply.
2. Remove protective caps from the vent holes using an ap-
propriate tool.
3. Unscrew vent screws anticlockwise from the vent holes
using an Allen key WAF3 and remove.
4. Screw the threaded adapter with mounted O-ring into the
vent holes and tighten carefully.
13 Pneumatic connection
