GEM 550 - Dimensions: Installation (Angle Valve Body); Angle Valve Body Installation Dimensions

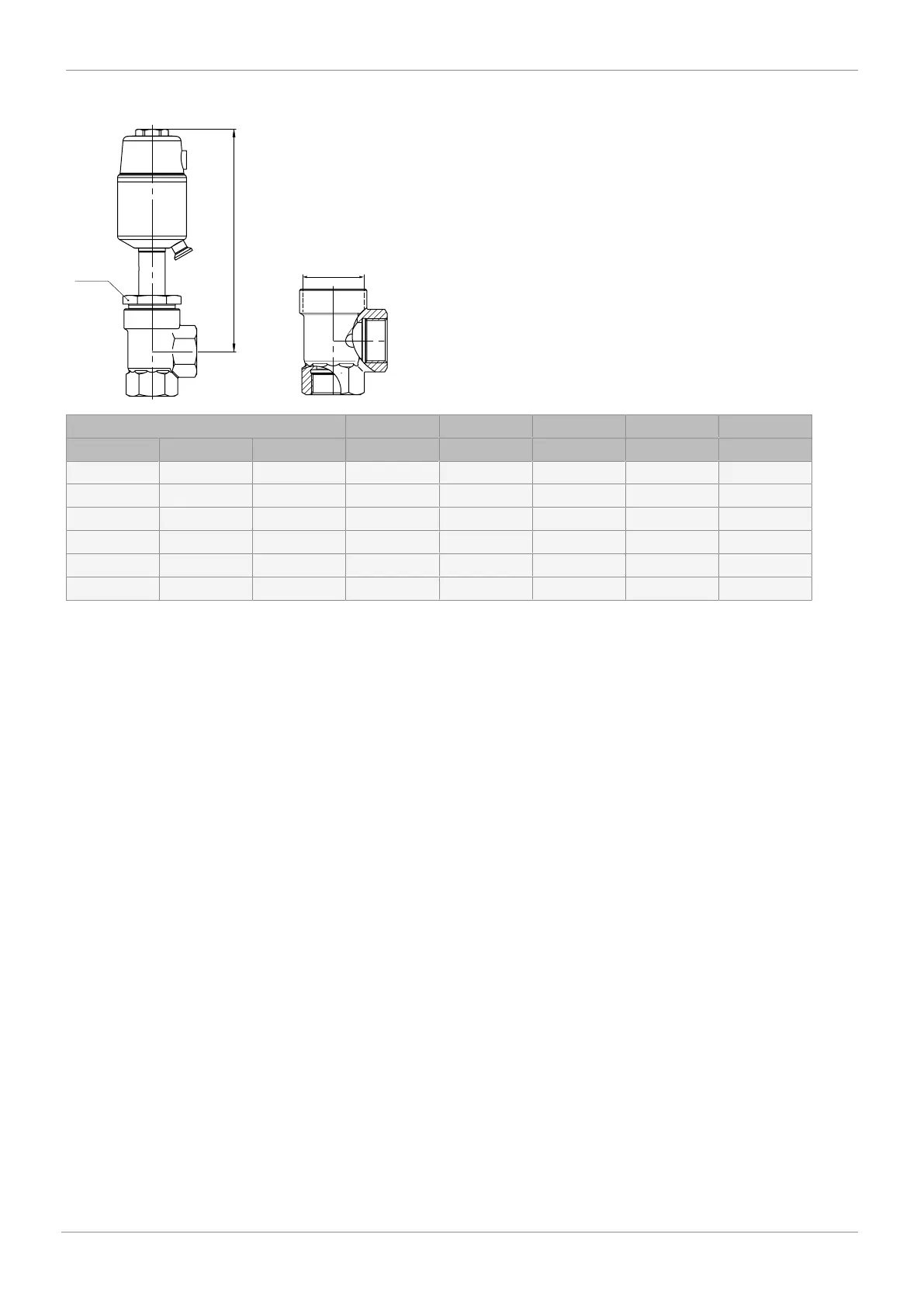

8.2.2 Valve with angle valve body
CT
SW 1
G
Actuator size 1 2 3 4 5
DN SW G CT/LA CT/LA CT/LA CT/LA CT/LA
15 36 M 34 x 1.5 149.0 195.0 - - -
20 41 M 40 x 1.5 152.0 198.0 214.0 - -
25 46 M 45 x 1.5 - 202.0 218.0 256.0 -
32 55 M 52 x 1.5 - 205.0 221.0 259.0 286.0
40 60 M 60 x 2.0 - - 226.0 264.0 291.0
50 55 M 72 x 2.0 - - 233.0 271.0 298.0
Dimensions in mm
The specified dimensions refer to control function 1 (normally closed NC).
The dimensions are smaller for control function 2 (normally open NO).
GEMÜ 550www.gemu-group.com 21 / 46
8 Dimensions
