Gemalto SafeNet Luna Network HSM 7.0 User Manual

2 SafeNet Luna Remote PED Installation and Configuration

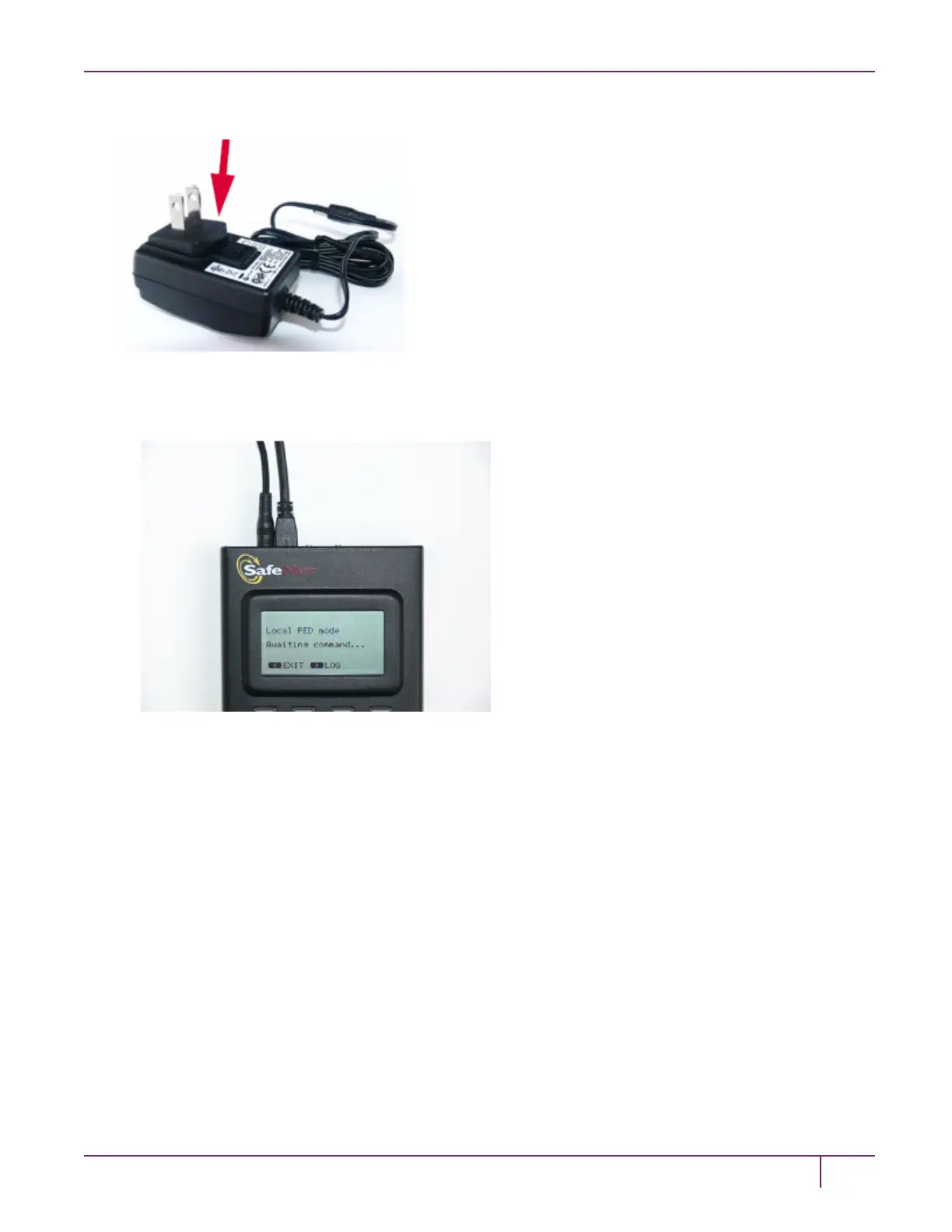

bottom end in the direction indicated by the arrow:
3. For remote PED operation:
– Connect the power supply to the AC mains
– Connect the DC power plug of the power supply to the DC power receptable on the top of the PED:
– Connect the USB cable between the USB micro connector on the PED and a USB socket on your computer.
4. At the workstation-connected PED, press < on the PED keypad to navigate to the main menu, and then press 7 to
enter Remote PED mode.
5. In a command-prompt window on the workstation, start the PEDServer program in its listening mode:
c:\<yourRemotePed-directory>\pedserver -m start
6. Run the command pedserver -m show to verify that the PED is detected, and the system is ready for remote
connection.
7. Start the PEDClient - the Remote PED enabling process on the HSM host:
lunash:> hsm ped connect -ip <workstation_ip_address> -port 1503
or
lunacm:> ped connect -ip <workstation_ip_address> -port 1503
8. Perform an hsm login or role login -name SO (as appropriate). The PED prompts for the Remote PED key.
Insert the imprinted Remote PED key associated with the connecting HSM appliance, and press Enter.
SafeNet Luna Network HSM Installation Guide
Release 7.0 007-013576-002 Rev. A June 2017 Copyright 2001-2017 GemaltoAll rights reserved.
30
