User and Service Manual
Doc # M010-004WWE July 2005
Gendex DenOptix® QST

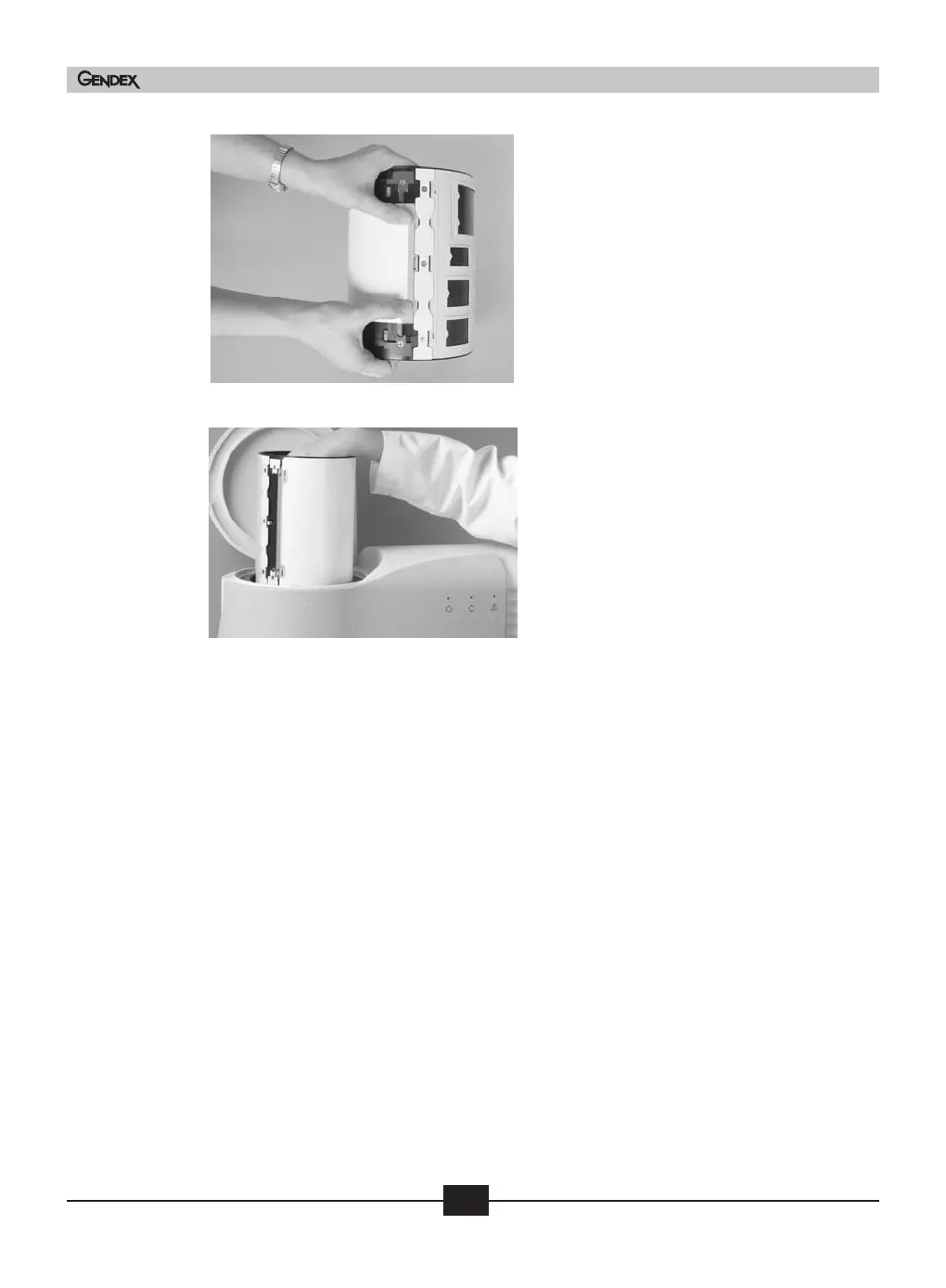

Figure 5-12
Wrap the imaging plate around the carousel
and push the free end under the edge of the
other clip. Push until you hear a “click.”
Panoramic shown.
Figure 5-13
Open the carousel well cover on the DenOptix
QST scanner and insert the carousel. Close the
cover. You are now ready to scan your
panoramic or cephalometric imaging plate.
