Gendex Expert DC Service Manual

032-0207-EN Rev 0
Opening the Master Control
1-3
(Continued)
a. Pull out at the top of the Master Control Touch Panel.

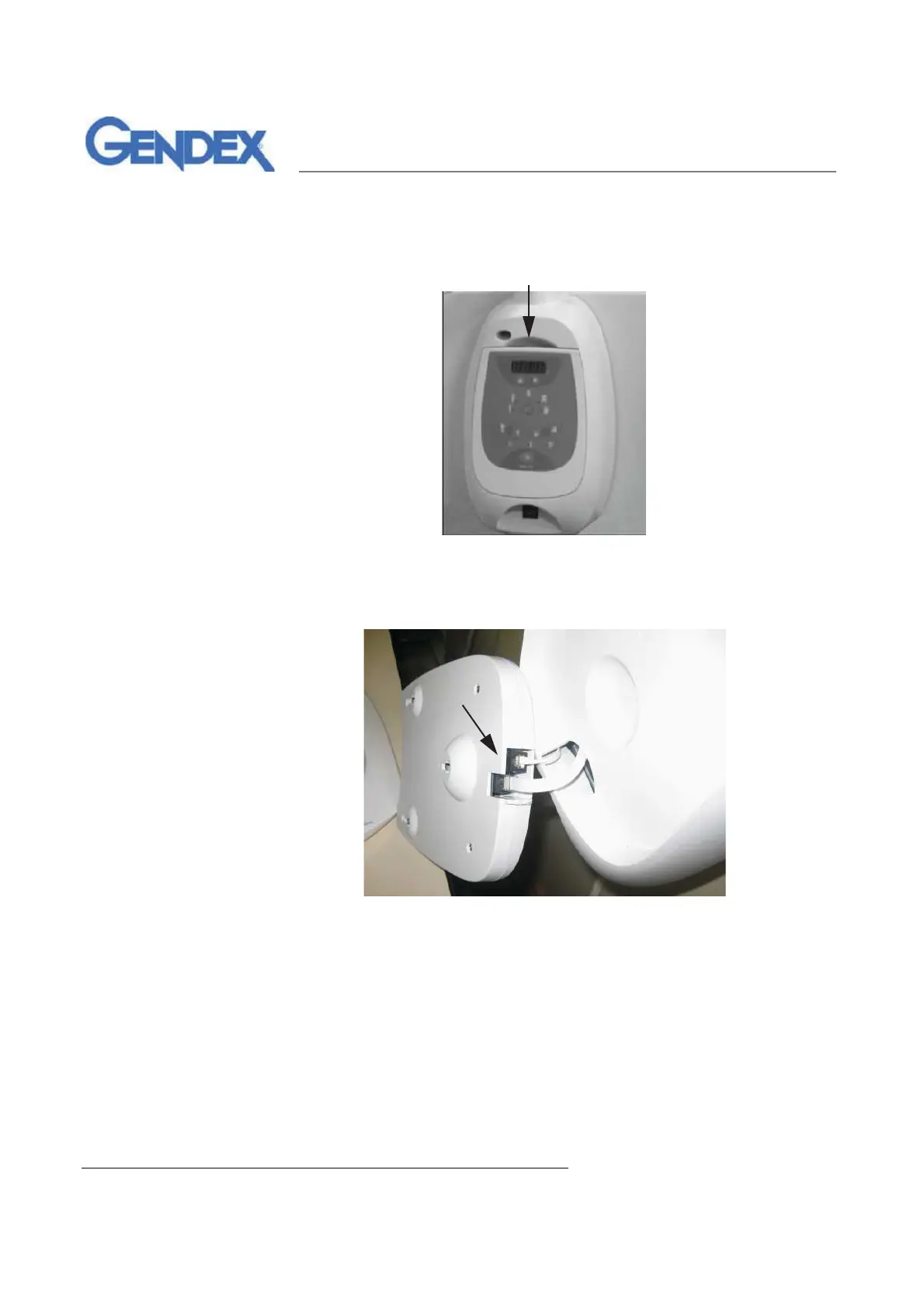

Figure 1-1 Removing the Master Control Touch Panel
b. Disconnect the control cable and the exposure switch coil-cord or
wall switch cord.
Figure 1-2 Disconnecting the Cable and Cord
c. Lay the Master Control Touch Panel aside. This will be re-installed
later.
2. Position the horizontal arm so that it is parallel to the wall.
(Continued)
