Gendex Expert DC Service Manual

Opening the Master Control
032-0207-EN Rev 0
1-4
(Continued)
3. Remove the small top cover by pulling up at the corner.

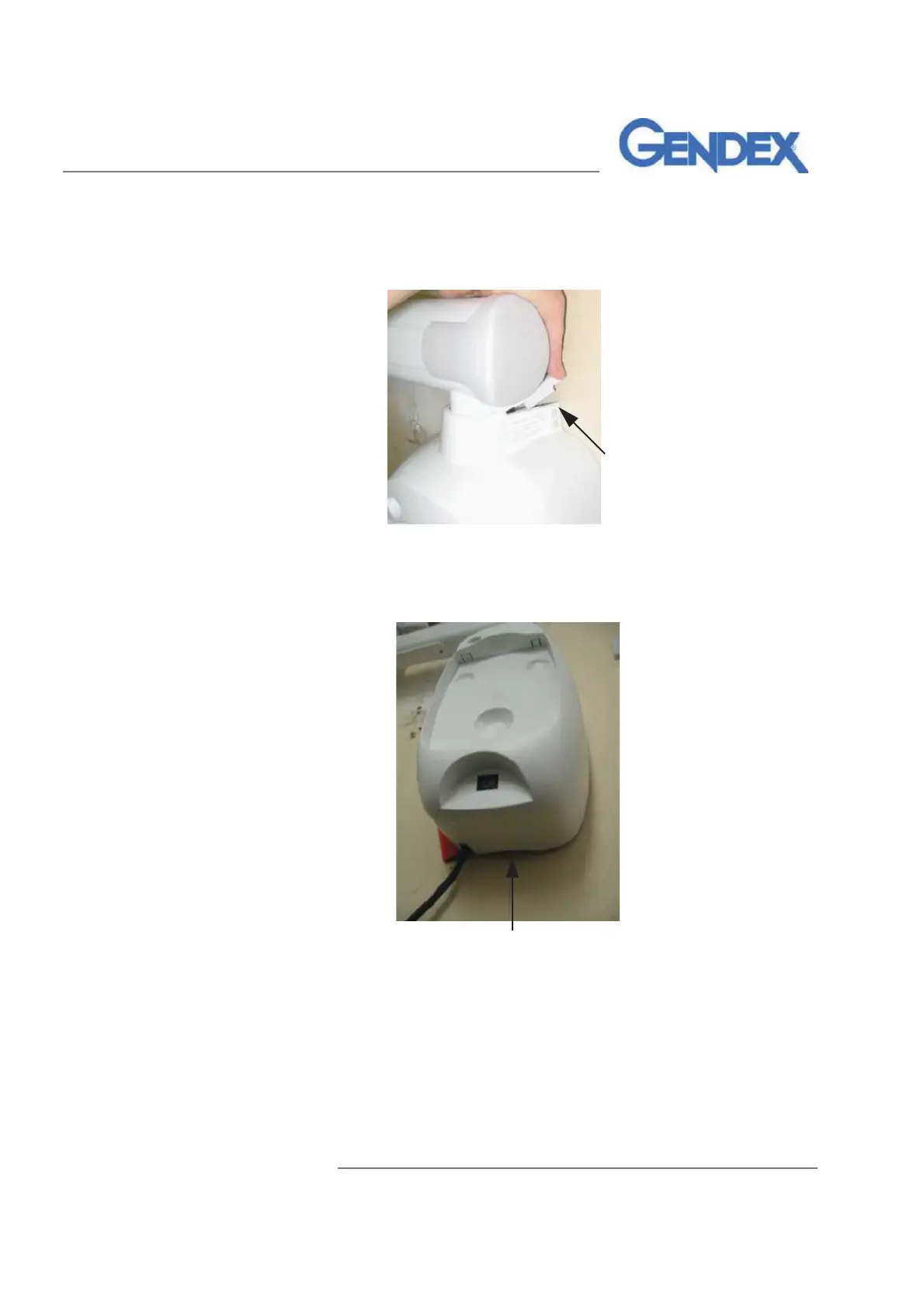

Figure 1-3 Removing the Top Cover
4. Grip the outer cover at the top and at the bottom rear hand-grip cutout
and carefully pull it off.
Figure 1-4 Removing the Outer Cover
5. Pull the control cable and the coil-cord back through the cutout for the
cables while removing the outer cover.
6. Lay the covers aside for later re-installation.
(Continued)
