Genelec 6010B - Page 3

2 English

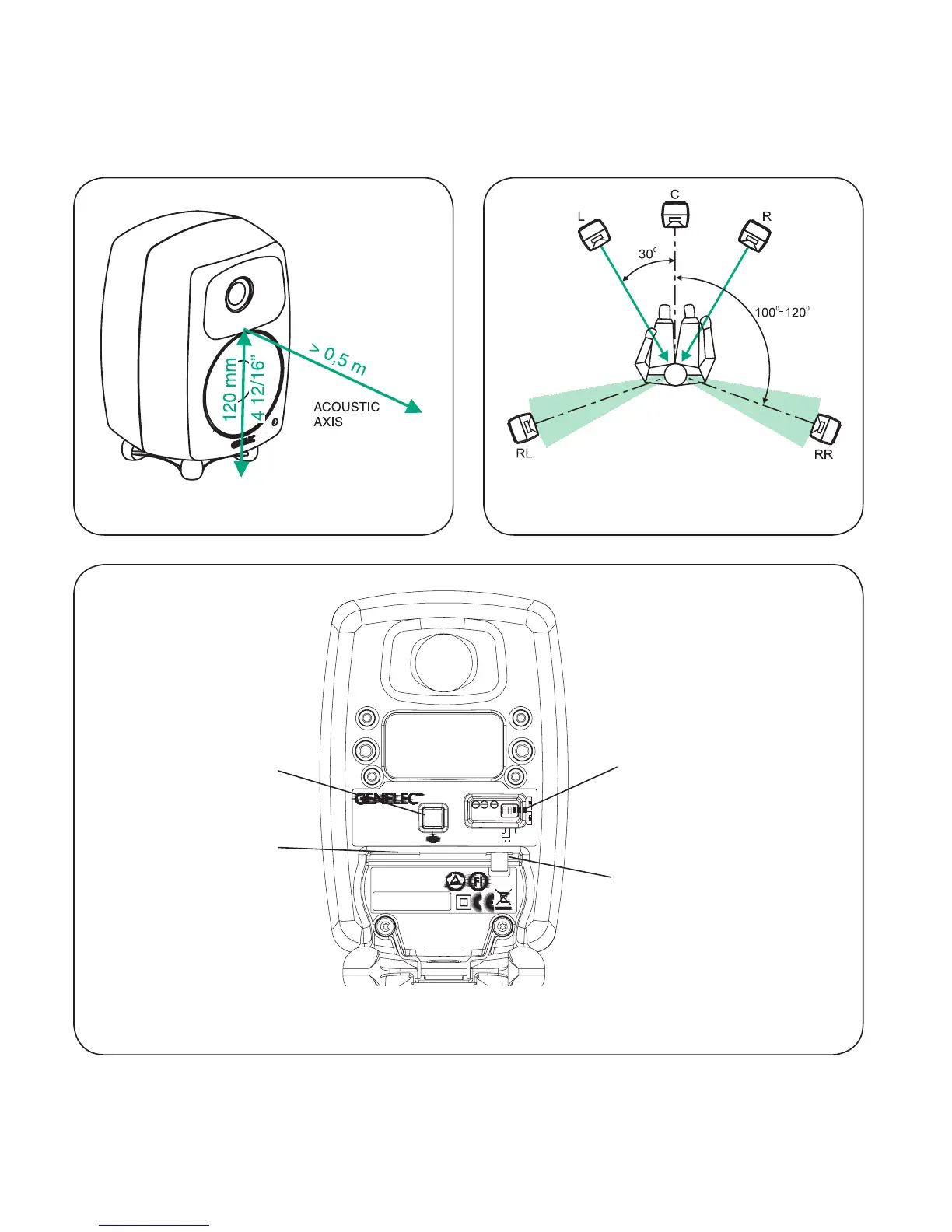

Figure 1. Location of the acoustic axis
Figure 3. Control and connector layout on the rear panel of a 6010B.
Figure 2. Correct alignment of the loudspeakers
in a 5-channel system.
TO WATER OR MOISTURE. NO USER SERVICEABLE PARTS
ELECTRIC SHOCK HAZARD.DONOT OPEN.DO NOT SUBJECT
L'INTÉRIEUR REMPLAÇABLE PARL'UTILISATEUR.ADRESSER
RISQUE DE CHOC ÉLECTRIQUE.NEPAS OUVRIR.NEPAS
EXPOSER ÀL'EAU OU L'HUMIDITÉ. AUCUN COMPOSANT À
AVERTISSEMENT
WARNING
INSIDE.REFER SERVICING TO QUALIFIED PERSONNEL.
TOUTE RÉPARATIONÀUN PERSONNEL QUALIFIÉ.
292-G10W
6010B
TABLETOP
-6 dB
-4 dB
BASS -2 dB
Active Loudspeaker
0
1
292-6010BT
MAINS INPUT
50/60Hz35W 230 V~
MADE IN FINLAND
www.genelec.com
INPUT
292-G10J-6
BASS TILT
AND “DESKTOP”
CONTROLS
RCA SIGNAL
INPUT CONNECTOR
MAINS
CONNECTOR
MAINS
SWITCH
