Carefully remove protective foam. Foam
has been secured with double-sided tape.
10.
Attach protective plates (E) using 8 pcs torx
bolts (F) in total. Do not overtighten.
9.
Torx 20,
max. 1Nm
F x 8
E
E
Connect ampliers to inputs in bottom
enclosure using cables D and H. Match
amp 1 to input 1 and amp 2 to input 2.
Match serial numbers between ampliers
and enclosure inputs. (Optional) Sleeve (I)
may be used over cables D and H.
11.
Use cables C, D, and G to connect
ampliers to each other, and J to the mains
power. Scan QR code to read detailed
explanation in 8381A Operating Manual
and GLM System Operating Manual.
12.
D H
I
C D
G J

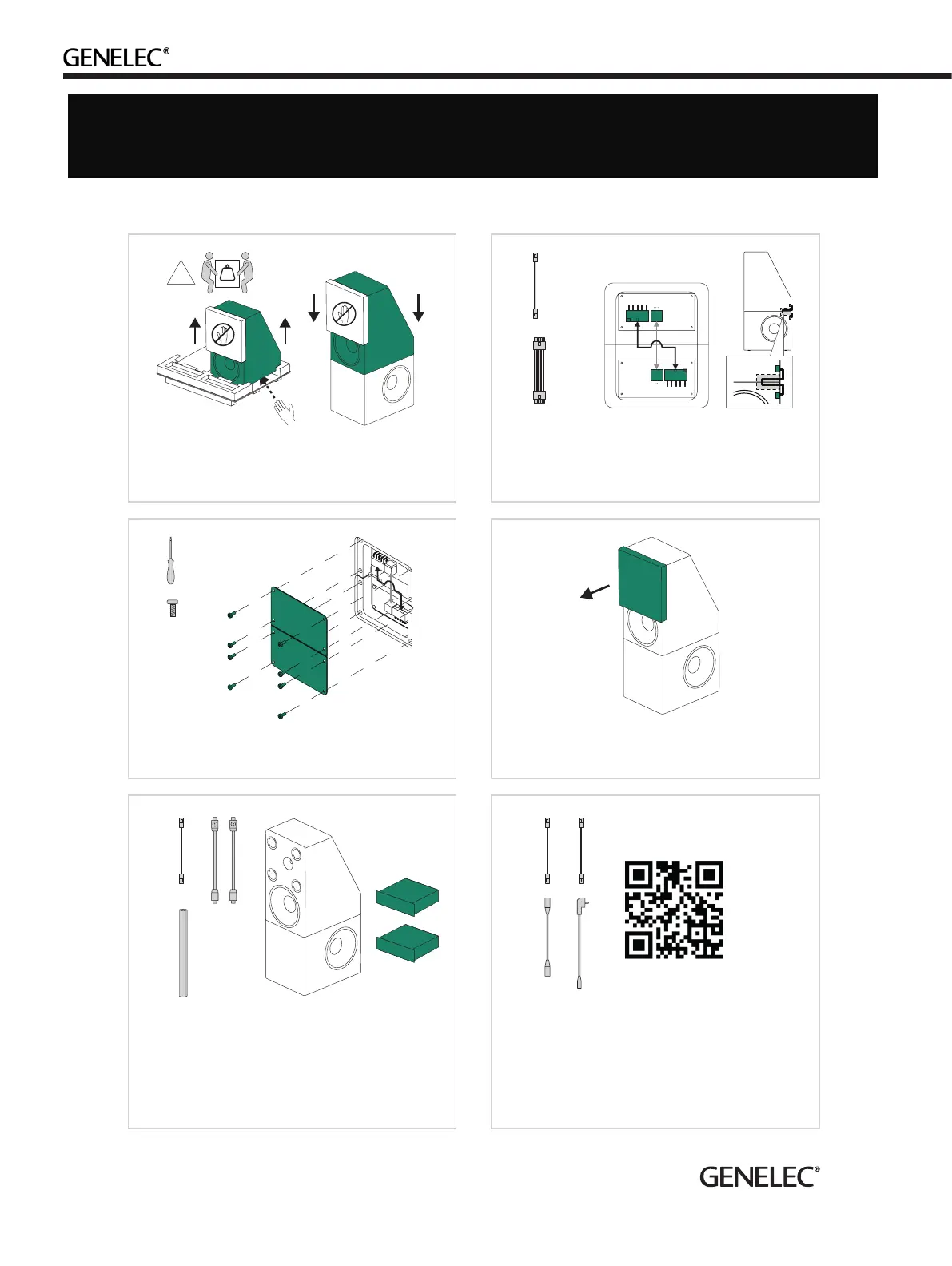

Remove plastic bag from upper enclosure
and lift upper enclosure onto lower enclosure.
7.
Insert cables A and B to connect upper and
lower enclosures. Carefully push cable into
space between enclosures.
8.
70
kg
!
B
A
Genelec Document BBAGE232 Copyright Genelec Oy 10.2023. All data subject to change.
