21

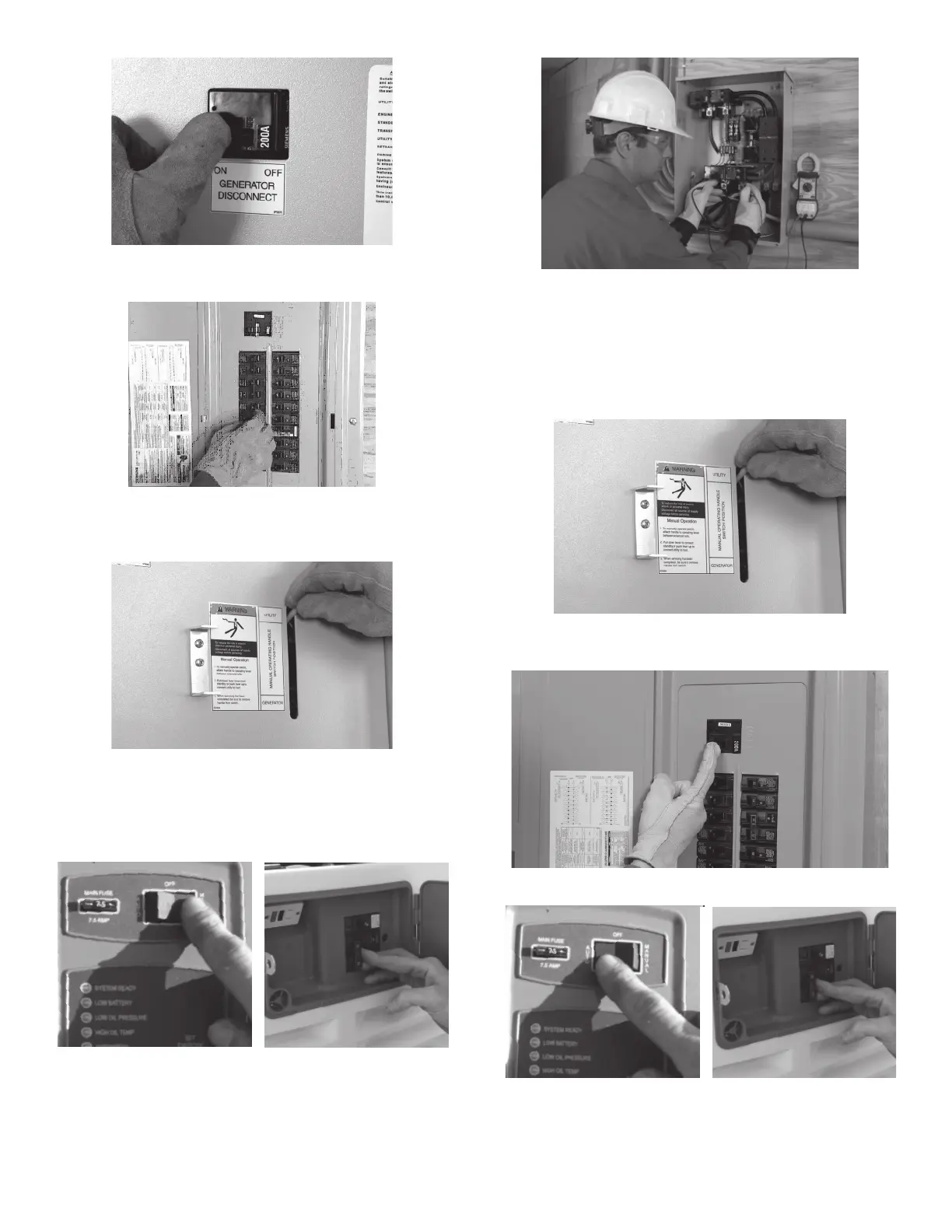

2. If using a service entrance rated transfer switch, put the generator
disconnect switch in the ON position if applicable.
3. Make sure utility power is OFF and place all of the individual
circuit breakers in the main distribution panel in the OFF
position.
4. Locate the transfer handle and insert the metal end into the slot in the
main contactor assembly. Pull the handle DOWN to move the main
contacts to the standby power (generator) position.
NEVER OPERATE THE TRANSFER SWITCH MANUALLY WHEN
LOADS ARE CONNECTED.
5. Put the generator’s mode switch in MANUAL to start the engine.
Allow the engine to warm up, then switch the generator’s
main breaker to the ON position. The generator is now
supplying electricity to the transfer switch but is not carrying
any load.
6. Check voltage and frequency from the generator. If line-to-line
voltage is not 240 volts, refer to the Installation Guide for the
proper adjustment procedures. If line-to-neutral voltage is not
120 volts, check the neutral connection between the generator
and transfer switch.
Switch the generator’s main circuit breaker OFF and put the
mode switch in the OFF position to shut down the generator.
7. With utility power still OFF, use the transfer handle to move the
main contacts to the UP (utility) position.
8. Close the main breaker to turn utility power ON.
9. Switch the generator’s main breaker to the ON position an put
the mode switch in AUTO.
