Generac Portable Products 7500EXL Extended Life Generator
I
Ill
m

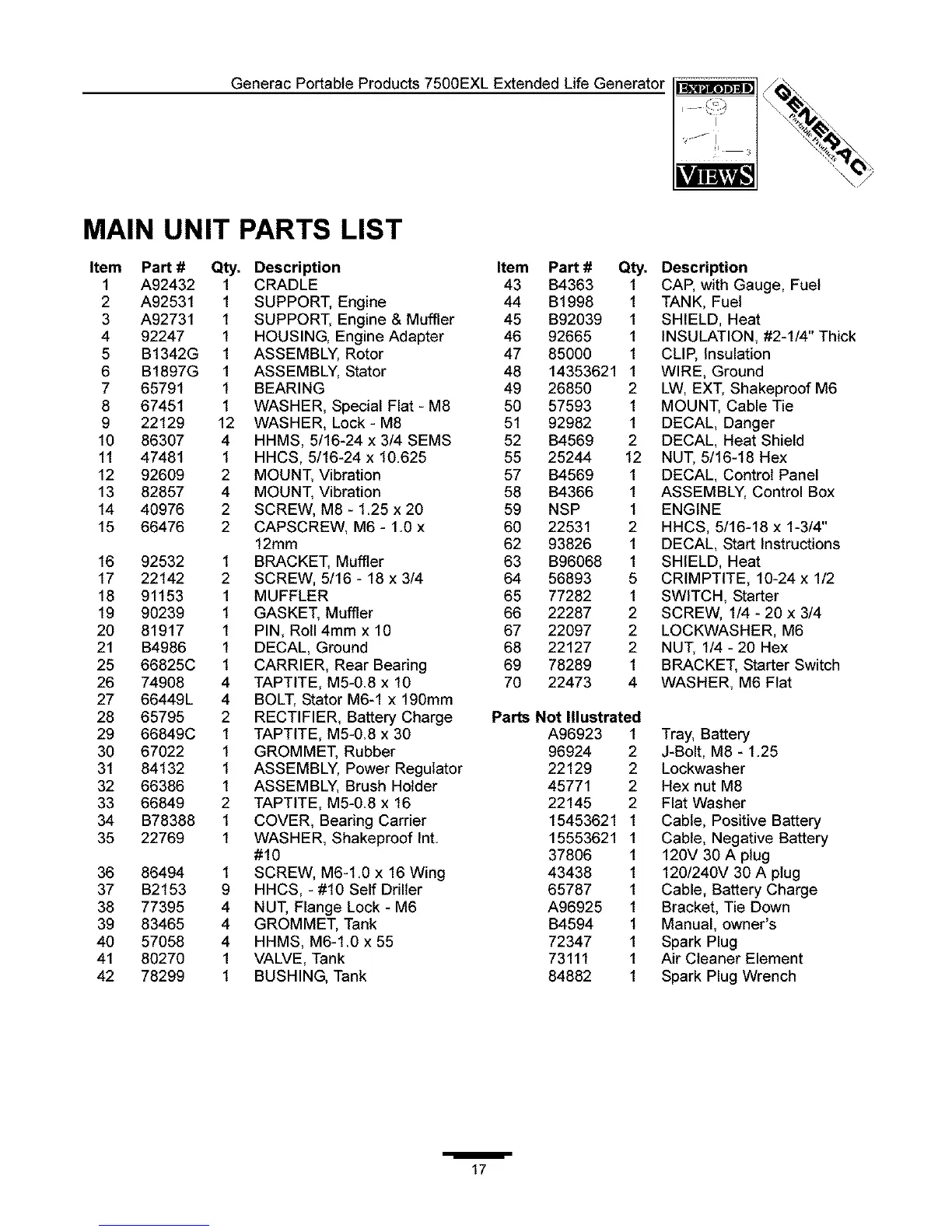

MAIN UNIT PARTS LIST
Item Part # Qty. Description
1 A92432 1 CRADLE
2 A92531 1 SUPPORT, Engine
3 A92731 1 SUPPORT, Engine & Muffler
4 92247 1 HOUSING, Engine Adapter
5 B1342G 1 ASSEMBLY, Rotor
6 B1897G 1 ASSEMBLY, Stator
7 65791 1 BEARING
8 67451 1 WASHER, Special Flat - M8
9 22129 12 WASHER, Lock- M8
10 86307 4 HHMS, 5/16-24 x 3/4 SEMS
11 47481 1 HHCS, 5/16-24 x 10.625
12 92609 2 MOUNT, Vibration
13 82857 4 MOUNT, Vibration
14 40976 2 SCREW, M8 - 1.25 x 20
15 66476 2 CAPSCREW, M6 - 1.0 x
12mm
16 92532 1 BRACKET, Muffler
17 22142 2 SCREW, 5/16 - 18 x 3/4
18 91153 1 MUFFLER
19 90239 1 GASKET, Muffler
20 81917 1 PIN, Roll 4mm x 10
21 B4986 1 DECAL, Ground
25 66825C 1 CARRIER, Rear Bearing
26 74908 4 TAPTITE, M5-0.8 x 10
27 66449L 4 BOLT, Stator M6-1 x 190mm
28 65795 2 RECTIFIER, Battery Charge
29 66849C 1 TAPTITE, M5-0.8 x 30
30 67022 1 GROMMET, Rubber
31 84132 1 ASSEMBLY, Power Regulator
32 66386 1 ASSEMBLY, Brush Holder
33 66849 2 TAPTITE, M5-0.8 x 16
34 B78388 1 COVER, Bearing Carrier
35 22769 1 WASHER, Shakeproof Int.
#10
36 86494 1 SCREW, M6-1.0 x 16 Wing
37 B2153 9 HHCS, - #10 Self Driller
38 77395 4 NUT, Flange Lock - M6
39 83465 4 GROMMET, Tank
40 57058 4 HHMS, M6-1.0 x 55
41 80270 1 VALVE, Tank
42 78299 1 BUSHING, Tank
Item Part # Qty. Description
43 B4363 1 CAP, with Gauge, Fuel
44 B1998 1 TANK, Fuel
45 B92039 1 SHIELD, Heat
46 92665 1 INSULATION, #2-1/4" Thick
47 85000 1 CLIP, Insulation
48 14353621 1 WIRE, Ground
49 26850 2 LW, EXT, Shakeproof M6
50 57593 1 MOUNT, Cable Tie
51 92982 1 DECAL, Danger
52 B4569 2 DECAL, Heat Shield
55 25244 12 NUT, 5/16-18 Hex
57 B4569 1 DECAL, Control Panel
58 B4366 1 ASSEMBLY, Control Box
59 NSP 1 ENGINE
60 22531 2 HHCS, 5/16-18 x 1-3/4"
62 93826 1 DECAL, Start Instructions
63 B96068 1 SHIELD, Heat
64 56893 5 CRIMPTITE, 10-24 x 1/2
65 77282 1 SWITCH, Starter
66 22287 2 SCREW, 1/4 - 20 x 3/4
67 22097 2 LOCKWASHER, M6
68 22127 2 NUT, 1/4 - 20 Hex
69 78289 1 BRACKET, Starter Switch
70 22473 4 WASHER, M6 Flat
Parts Not Illustrated
A96923 1 Tray, Battery
96924 2 J-Bolt, M8 - 1.25
22129 2 Lockwasher
45771 2 Hex nut M8
22145 2 Flat Washer
15453621 1 Cable, Positive Battery
15553621 1 Cable, Negative Battery
37806 1 120V 30 A plug
43438 1 120/240V 30 A plug
65787 1 Cable, Battery Charge
A96925 1 Bracket, Tie Down
B4594 1 Manual, owner's
72347 1 Spark Plug
73111 1 Air Cleaner Element
84882 1 Spark Plug Wrench
/
17
