Generac Portable Products 7500EXL Extended Life Generator

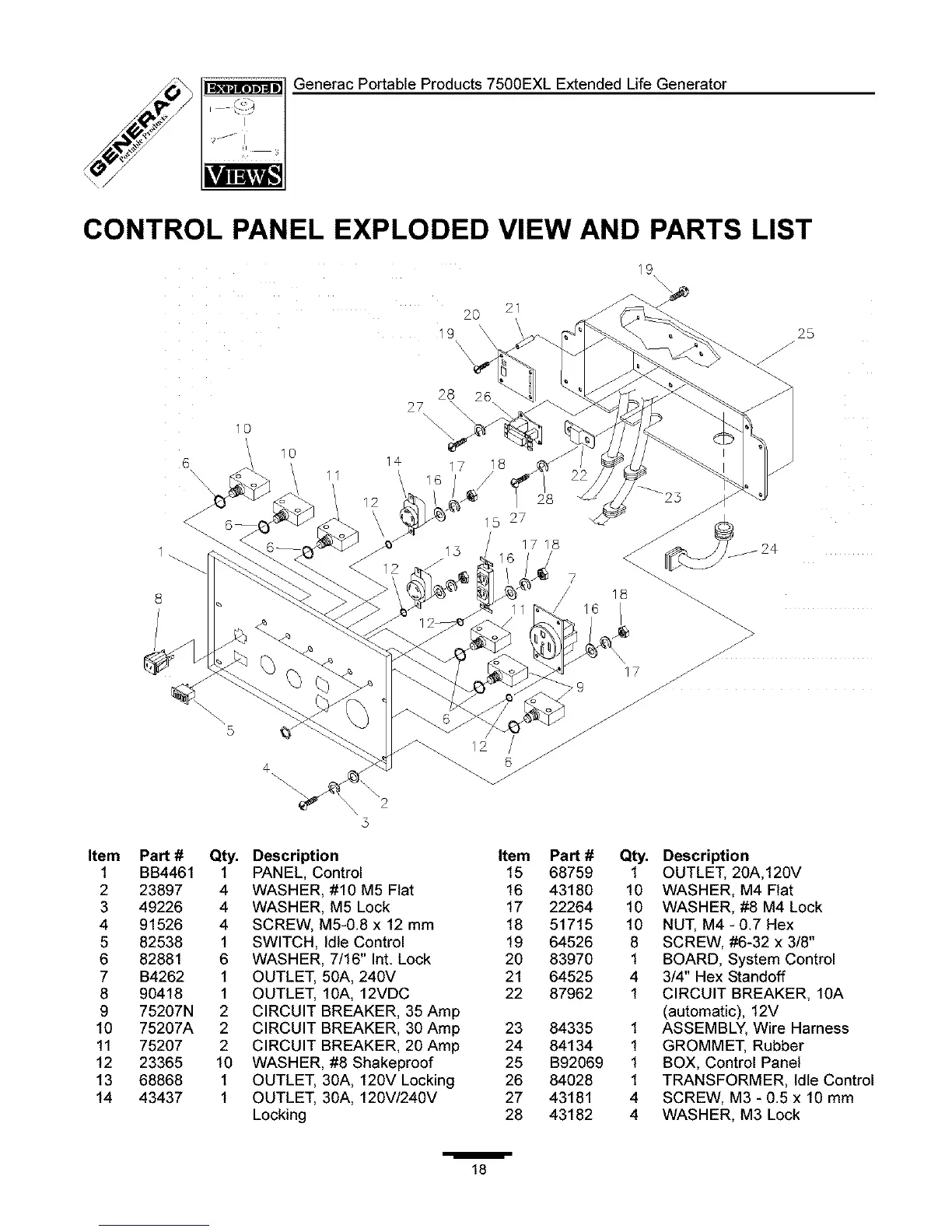

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
lO
lO
28
27
19
2C 21
25
26
12
Item Pa_ # Qty.
1 BB4461 1
2 23897 4
3 49226 4
4 91526 4
5 82538 1
6 82881 6
7 B4262 1
8 90418 1
9 75207N 2
10 75207A 2
11 75207 2
12 23365 10
13 68868 1
14 43437 1
13
L$.\
2
\
3
Description
PANEL, Control
WASHER, #10 M5 Flat
WASHER, M5 Lock
SCREW, M5-0.8 x 12 mm
SWITCH, Idle Control
WASHER, 7/16" Int. Lock
OUTLET, 50A, 240V
OUTLET, 10A, 12VDC
CIRCUIT BREAKER, 35 Amp
CIRCUIT BREAKER, 30 Amp
CIRCUIT BREAKER, 20 Amp
WASHER, #8 Shakeproof
OUTLET, 30A, 120V Locking
OUTLET, 30A, 120V/240V
Locking
17 18
7
18
17
>9
12 _
Item Pa_ # Qty.
15 68759 1
16 43180 10
17 22264 10
18 51715 10
19 64526 8
20 83970 1
21 64525 4
22 87962 1
23 84335 1
24 84134 1
25 B92069 1
26 84028 1
27 43181 4
28 43182 4
J24
Description
OUTLET, 20A,120V
WASHER, M4 Flat
WASHER, #8 M4 Lock
NUT, M4 - 0.7 Hex
SCREW, #6-32 x 3/8"
BOARD, System Control
3/4" Hex Standoff
CIRCUIT BREAKER, 10A
(automatic), 12V
ASSEMBLY, Wire Harness
GROMMET, Rubber
BOX, Control Panel
TRANSFORMER, Idle Control
SCREW, M3 - 0.5 x 10 mm
WASHER, M3 Lock
I
18
