ENGINE DISASSEMBLY .................................................. 9-1
ENGINE DISASSEMBLY
Drain oil, remove oil filter and remove engine from equip-
ment. Remove spark plugs. Remove flywheel, disconnect stop
switch wires at armatures and remove armatures (see Section
2). Remove cylinder heads (see Section 5).
1. Remove the following parts (Figure 9-1):
a. Breather Assembly b. Alternator
c. Backplate d. Starter Motor
2. Remove crankcase cover/sump.
a. Discard gasket and O-ring.

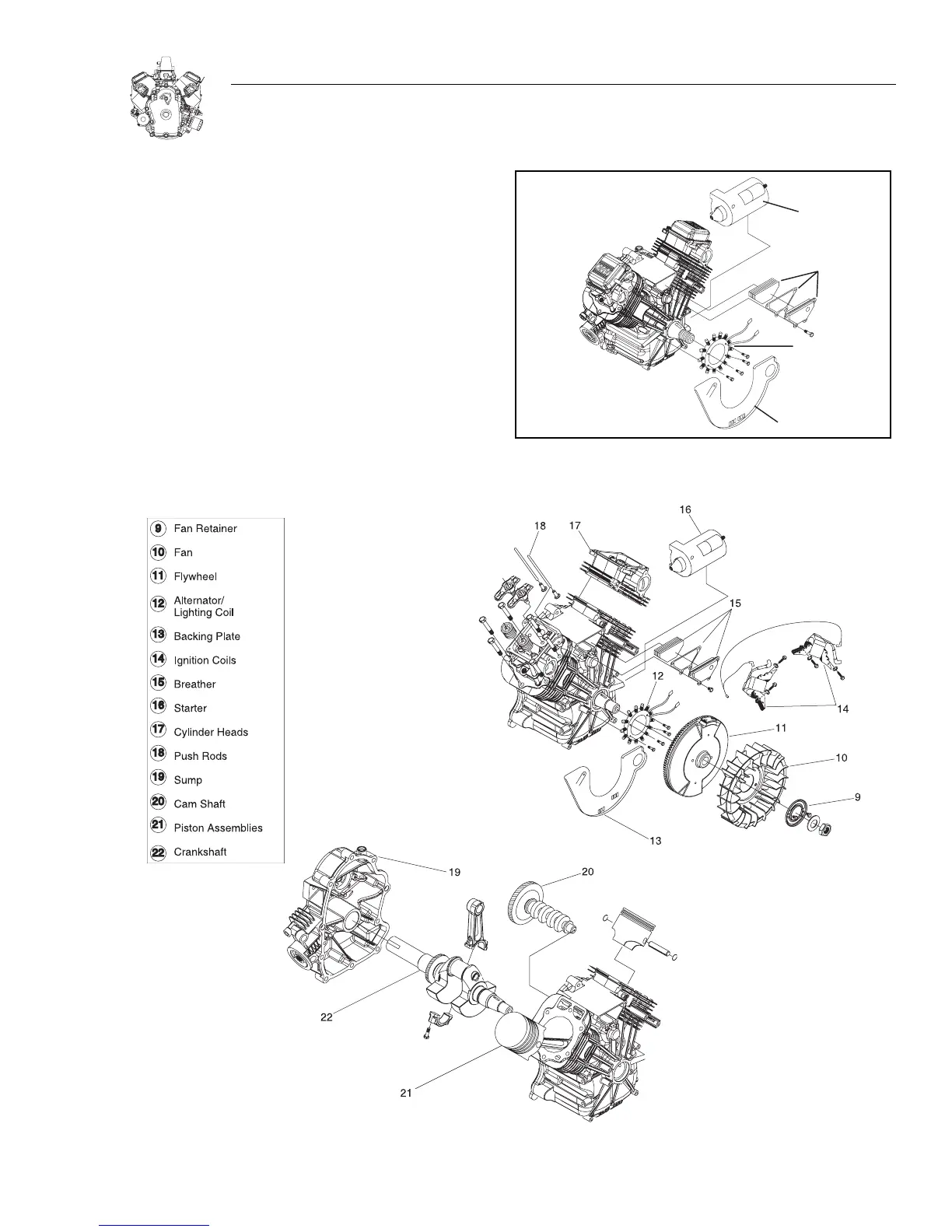

Figure 9-1. Remove Alternator, Backplate, Starter Motor
B
C
D
A
SECTION 9: ENGINE DISASSEMBLY
9-1
Figure 9-2.
