Generac Power Systems Guardian 5410 User Manual

424.8
[16 3/4"]
29.6
[1 3/16"]
BATTERY CONNECTION
(NEGATIVE)
50
[1 15/16"]
TYP.
469.9
[18 1/2"]
AC OUTPUT
HARNESS
109.1
[4 5/16"]
543.8
[21 7/16"]
FRONT DOOR ACCESS FOR
REQUIRED MAINTENANCE
853.4
[33 5/8"]
FUEL
INLET
BATTERY CONNECTION
(POSITIVE)
3/8"-16 THD.
(4 PLACES)
REMOTE START CONNECTION
41.1
[1 5/8"]
3/8"-16 THD.
(4 PLACES)
OIL FILTER ACCESS
COOLING
AIR IN
AIR OUT
COOLING
AIR IN
ENGINE
EXHAUST OUTLET
31.8
[1 1/4"]
EVAPORATIVE
PORT FITTING
Section 10
SPECIFICATIONS & CHARTS
Page 76

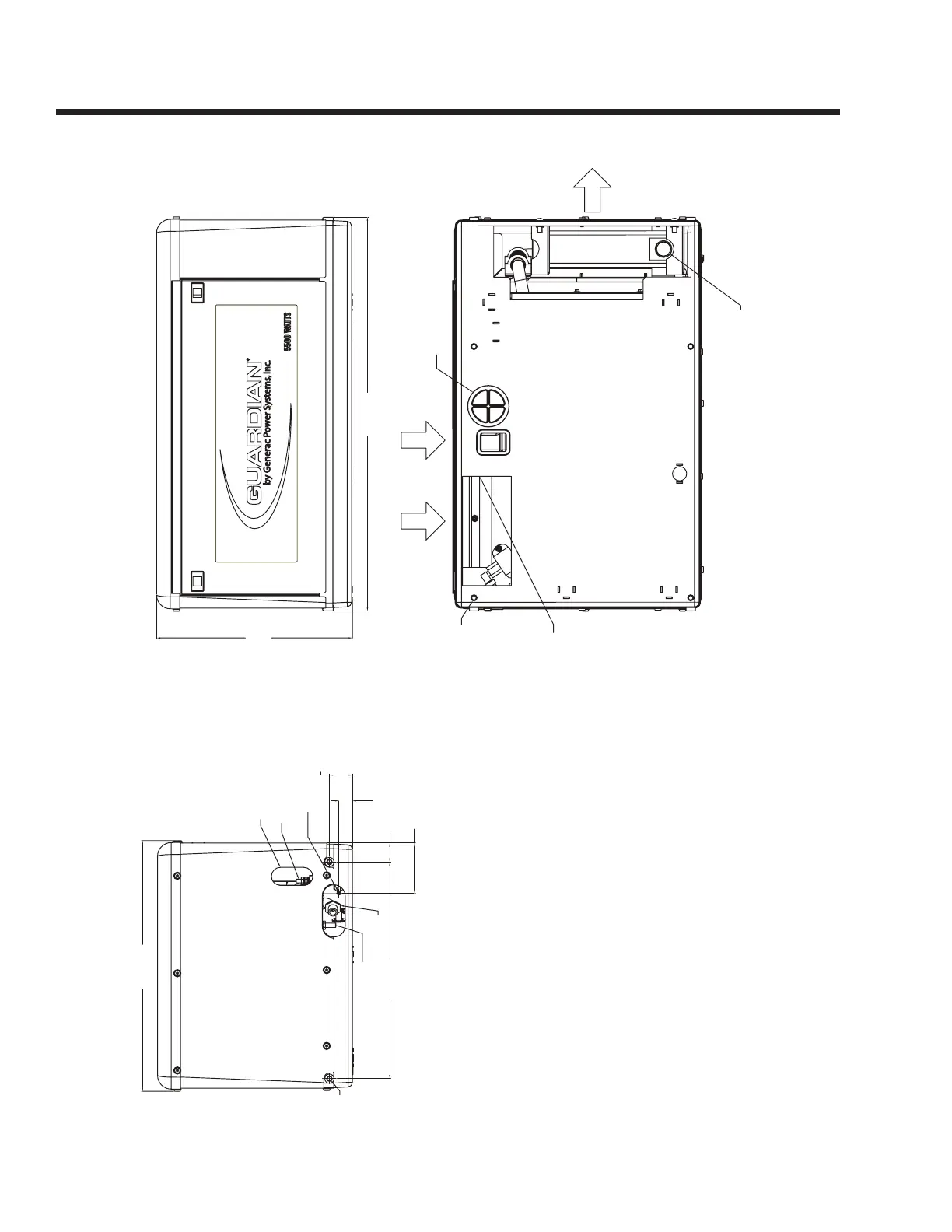

Major Features and Dimensions – Drawing No. 0G5519-b

Generac Power Systems Guardian 5410 Specifications

General

Brand	Generac Power Systems
Model	Guardian 5410
Category	Inverter
Language	English
