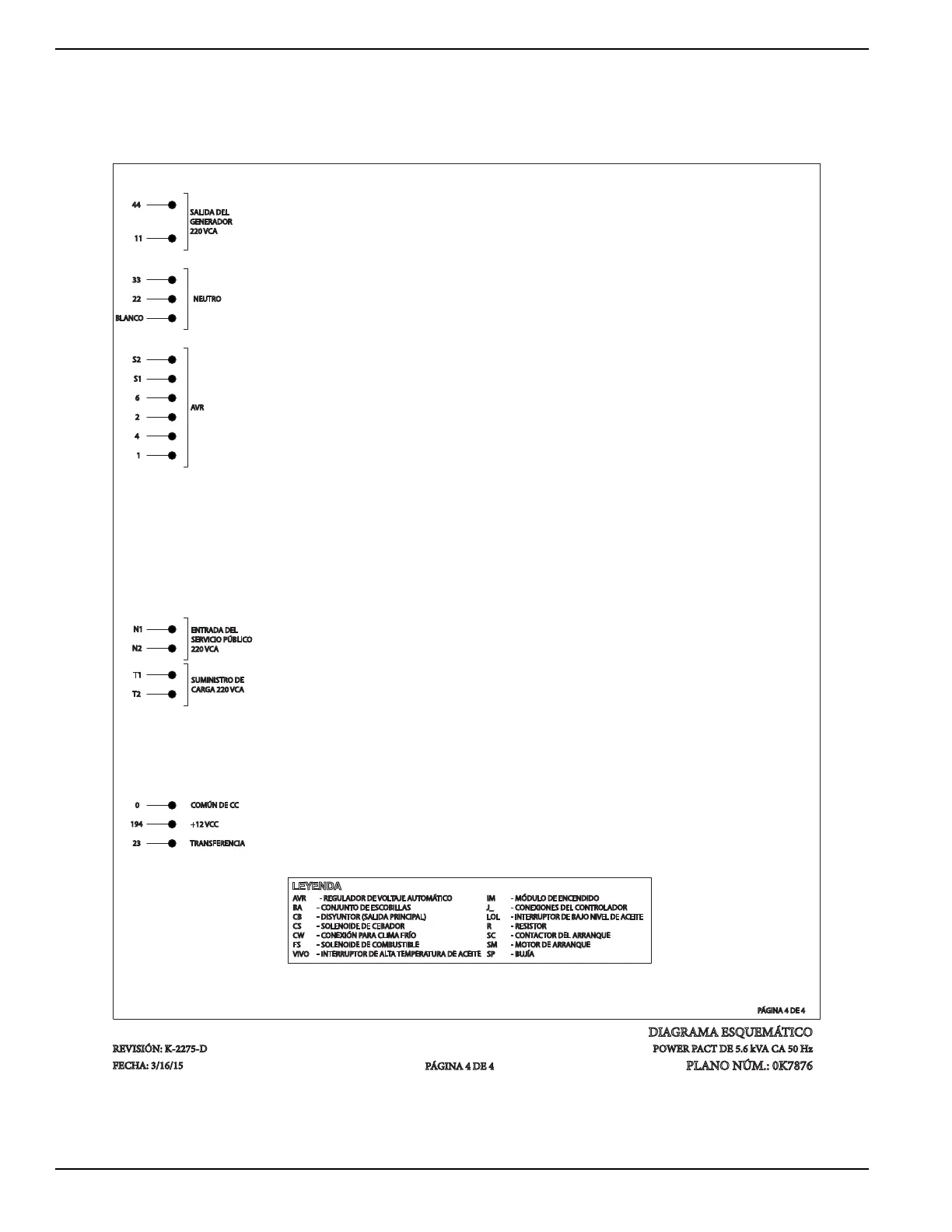

Diagramas
46 Directrices de instalación para PowerPact™ de 50 Hz
Plano 0K7876 Rev. D página 4
R
CB - DISYUNTOR (SALIDA PRINCIPAL)
- RESISTOR
PÁGINA 4 DE 4
- BUJÍA
- MOTOR DE ARRANQUE
- CONTACTOR DEL ARRANQUE
- SOLENOIDE DE CEBADOR
- SOLENOIDE DE COMBUSTIBLE
- INTERRUPTOR DE ALTA TEMPERATURA DE ACEITE
- MÓDULO DE ENCENDIDOIM
FS
VIVO
CS
SM
SP
SC
AVR
194
23
0 COMÚN DE CC
TRANSFERENCIA
+12 VCC
T2
T1
N2
N1
1
4
2
33
S2
6
S1
22
NEUTRO
44
11
SALIDA DEL
GENERADOR
220 VCA
- CONEXIONES DEL CONTROLADOR
- INTERRUPTOR DE BAJO NIVEL DE ACEITE
- REGULADOR DE VOLTAJE AUTOMÁTICO
- CONJUNTO DE ESCOBILLAS
LEYENDA
AVR
BA J_
LOL
BLANCO
- CONEXN PARA CLIMA FRÍOCW
ENTRADA DEL
SERVICIO PÚBLICO
220 VCA
SUMINISTRO DE
CARGA 220 VCA
PÁGINA 4 DE 4
DIAGRAMA ESQUEMÁTICO
POWER PACT DE 5.6 kVA CA 50 Hz
PLANO NÚM.: 0K7876
REVISIÓN: K-2275-D
FECHA: 3/16/15
001205
