Installation Manual for PV Link 5
General Information
Section 2: General Information
Specifications
Description Units S2502
Rated power W 2500 (continuous)
Peak efficiency % 99
MPPT input voltage VDC 60–360
Rated power input voltage VDC 200–360
Maximum input voltage VDC 420 (absolute maximum)
Maximum output voltage VDC 420 (open circuit)
Nominal output - REbus DC nanogrid (380 VDC + data)
Maximum output current A 8
Standby power W <1
Topology - Boost converter
Protections - Ground-fault protection, arc-fault protection
Maximum operating temperature ºF (ºC) 158 (70)
Enclosure - Type 3R
Weight lb (kg) 7.3 (3.3)
Specifications are subject to change without notice. Refer to the product specification sheet for complete list.
Serial Number Location
Refer to Figure 2-1 to locate the unit serial number and
RCP number (A). Record the information from this tag in
Table 1: Generac PV Link Important Information on
the inside front cover of this manual so it is available if
the tags are lost or damaged. When requesting
assistance, you may be asked to provide this information.
A
010121

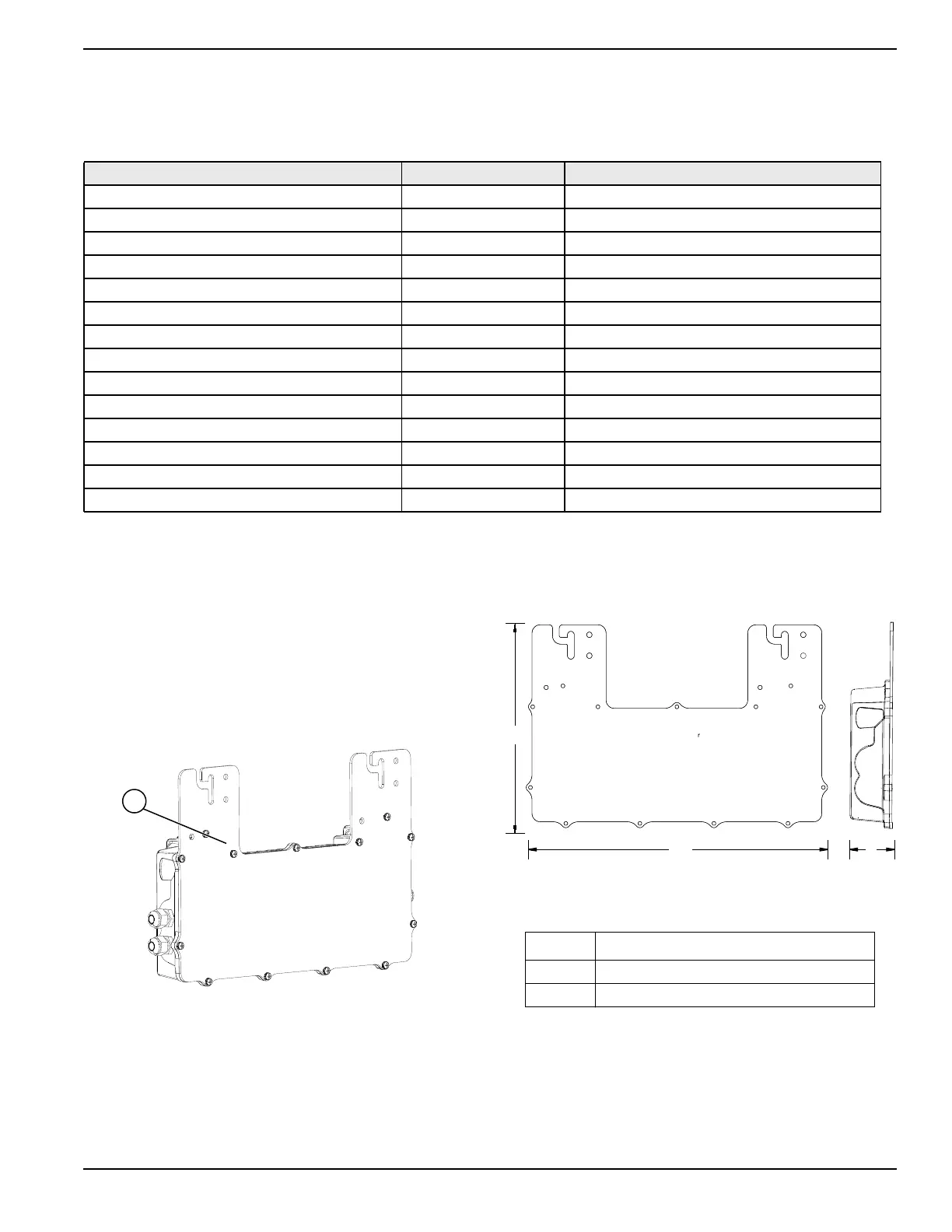

Figure 2-1. Serial Number Location
Unit Dimensions
r
CB
A
009955
Figure 2-2. Unit Dimensions
A
B
C
9.6 (243)
15.4 in (390 mm)
2 in (50 mm)
