Generac Power Systems PWRview User Manual

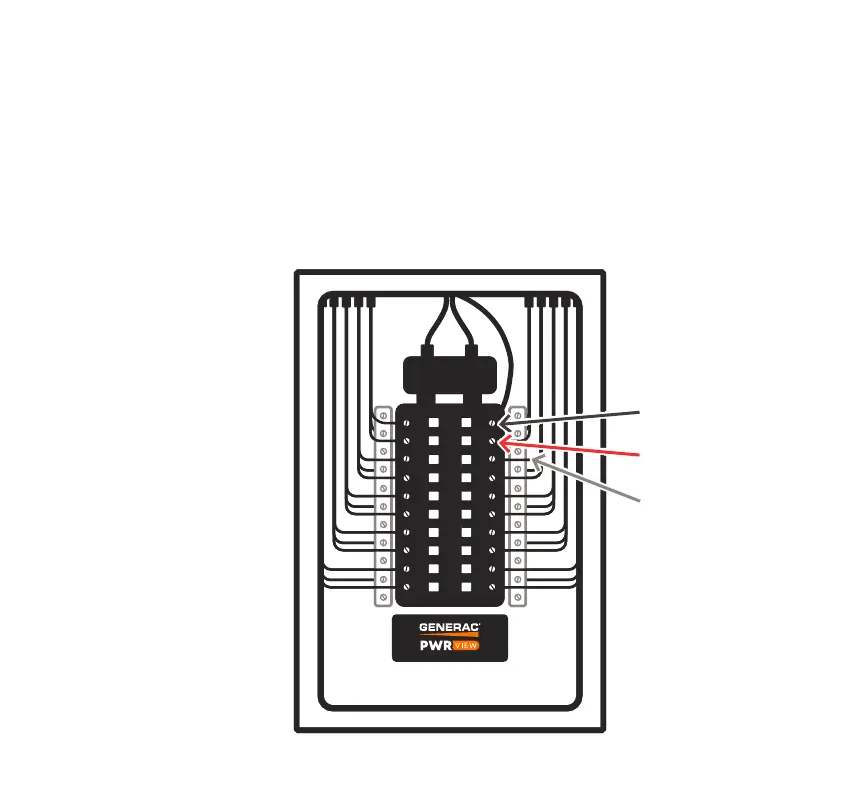

Step 3 CONNECT THE VOLTAGE CABLE
Connect the black and red wires to a 2 pole 15A or
20A circuit breaker. The black wire should go to Phase
A and the red to Phase B. Connect the white wire to
the neutral bus bar usually located next to the breaker
OFF
OFF
OFF
Black Wire
Red Wire
White Wire
NOTE: The blue wire
is only needed when
connecting a CT to Port
3, which is not used in a
2-phase, consumption only
installation. If the blue wire
is not needed, twist the
wire nut onto the blue wire.
For more installation types,
visit www.generac.com/
service-support/PWRview
