Generac Power Systems R-200 User Manual

3

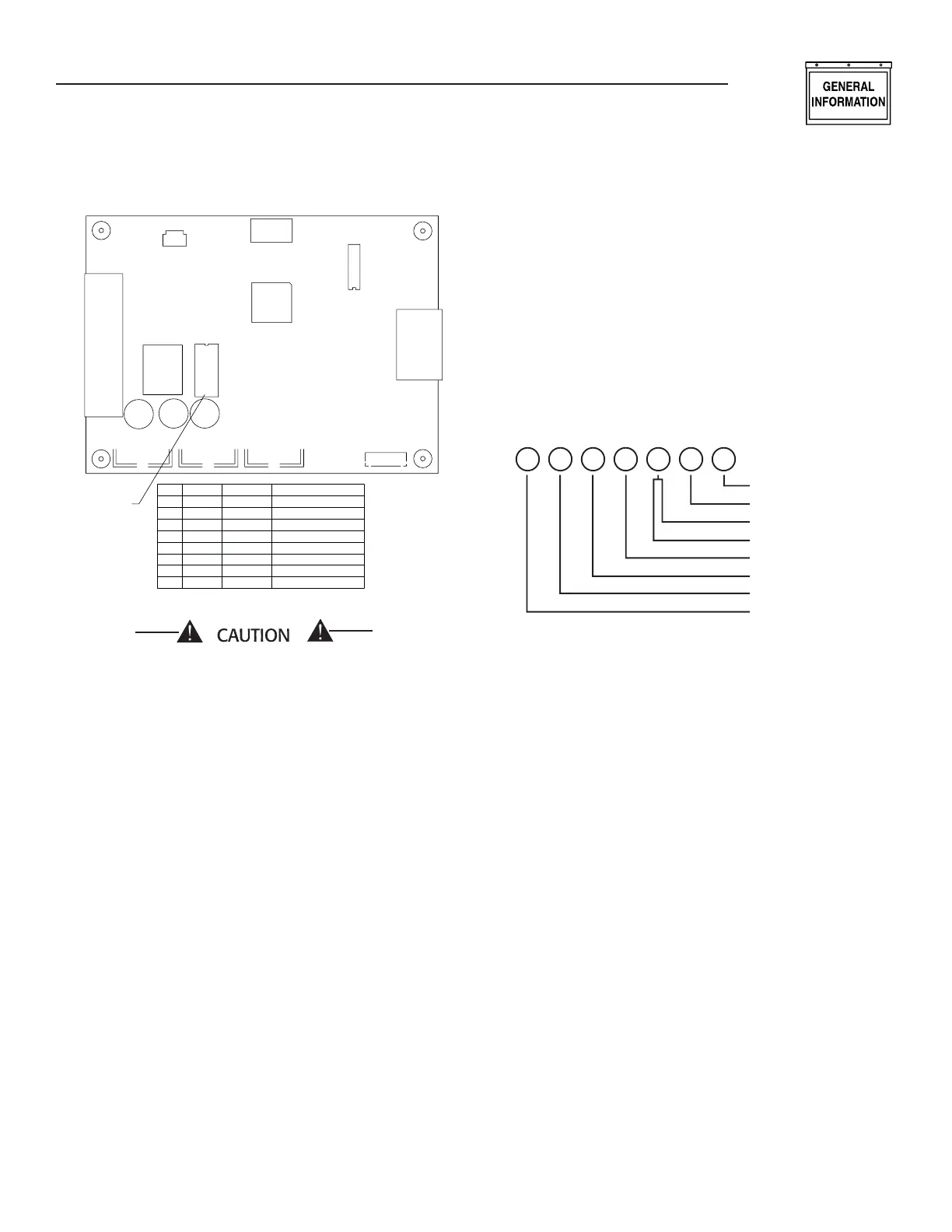

Figure 1 — Dip Switch Settings
RL1
U9
J2
J3
J5
J4
U7
J1
2
3
4
5
7
8
6
1
ON
DATE XXXX
SOFTWARE P/N
REV #
DIP SWITCH
6 CYL
LOW SPD
8
5
6
7
4
3
LP
4 CYL
2.4 - 45kW / 3.0L
NORMAL
NG
POS
1
2
OFF
ATS GTS
ON
RESERVED
RESERVED
# OF CYLINDERS
FUEL TYPE
ENGINE TYPE / kW RATING
EXERCISE MODE
RESERVED
TRANSFER SWITCH MODE
DESCRIPTION
2.4 - 35kW

If the DIP switch settings are not set correctly,
the generator engine may run rough, not start
or not provide rated power. When LP fuel
is used it is very important that DIP Switch
Position 4 be in the LP fuel position (switch
OFF).
LED Indicators visible through front panel (see Table
1 and Figure 2).
Table 1
System Ready Green LED
Low Fuel Pressure Yellow LED
Low Battery Red LED
Low Oil Pressure Red LED
Hi Coolant Temp/Low Coolant Level Red LED
Over Speed/RPM Sensor Loss Red LED
Over Crank Red LED
Figure 2 — LED Indicators on Front Panel
OVERCRANK
OVERSPEED
LOW COOLANT LEVEL
HI COOLANT TEMPERATURE
LOW OIL PRESSURE
LOW BATTERY
LOW FUEL PRESSURE
SYSTEM READY
•
•
•
•
•
•
•
