General Information
6 Automatic Transfer Switch Owner’s Manual
Utility Service Circuit Breaker
The utility service and generator disconnect circuit
breakers for 100 amp models are:
• Type BQ, 2-pole
• 10,000 A/C
• 120/240VAC, 100A
• 50/60 Hertz
• Wire range: #1 - #8 AWG (Cu/Al)
• The conductor tightening torque is 50 in-lbs. (5.6
Nm).
The utility service circuit breakers for 200 amp models
are:
• Type 225AF, 2-pole
• 22,000 A/C
• 120/240VAC, 200A
• 50/60 Hertz
• Wire range:
– Line: 300 MCM - 6 STR (Cu/Al)
– Load - ATS: 250 MCM - 6 STR (Cu/Al)
• The conductor tightening torque is:
– Line: 375 in-lbs (42.4 Nm)
– Load - ATS: 275 in-lbs. (31 Nm)
Transfer Switch Data Decal
See
Figure 2-2
. A data decal is permanently affixed to the
transfer switch enclosure. Use this transfer switch only
with the specific limits shown on the data decal and on
other decals and labels that may be affixed to the switch.
This will prevent damage to equipment and property.
When requesting information or ordering parts for this
equipment, make sure to include all information from the
data decal.
For future reference, record the Model and Serial numbers
in the space provided on the front cover of this manual.

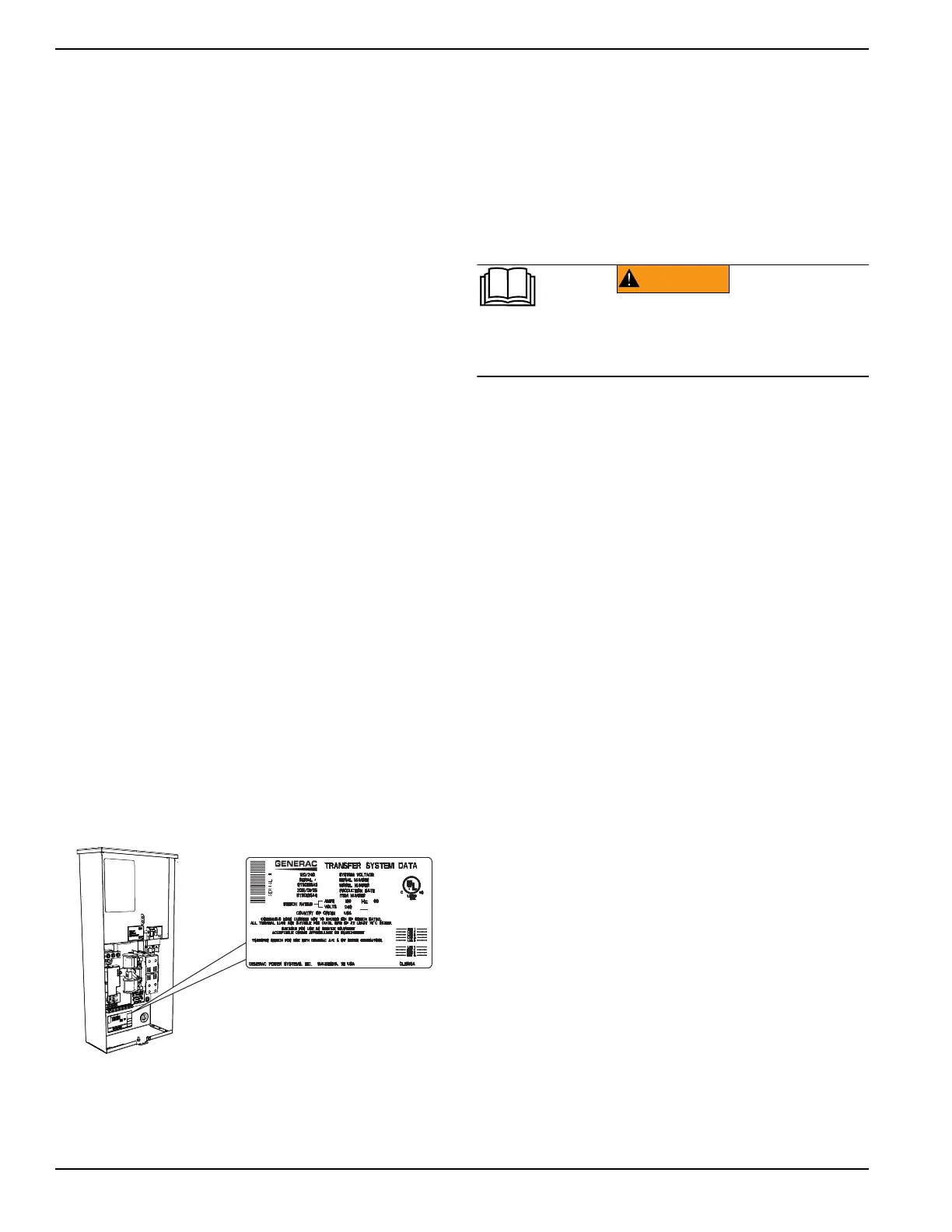

Figure 2-2. Data Decal Location
Transfer Switch Enclosure
The standard switch enclosure is a National Electrical
Manufacturer’s Association (NEMA) and UL/CUL 3R
type. UL/CUL and NEMA 3R (indoor/outdoor rated) type
enclosures primarily provide a degree of protection
against falling rain and sleet; are undamaged by the
formation of ice on the enclosure.
Safe Use of Transfer Switch
Before installing, operating or servicing this equipment,
read the Safety Rules carefully. Comply strictly with all
Safety Rules to prevent accidents and/or damage to the
equipment. The manufacturer recommends that a copy
of the Safety Rules be posted near the transfer switch.
Also, be sure to read all instructions and information
found on tags, labels and decals affixed to the
equipment.
Two publications that outline the safe use of transfer
switches are the following:
• Canadian Electrical Code CE; CSA C22.1
• NFPA 70E: Standard for Electrical Safety In The
Workplace
• UL/CUL 1008: Standard for Safety—Automatic
Transfer Switches
NOTE: It is essential to use the latest version of any
standard to guarantee correct and current information.
Load Management Options
Load management systems are designed to work
together to prevent a generator from being overloaded by
large appliance loads. A Smart A/C Module (SACM) is
provided as standard equipment with this switch. An
optional Smart Management Module (SMM) is also
available.
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
