WALRUS 5000C
Page | 6

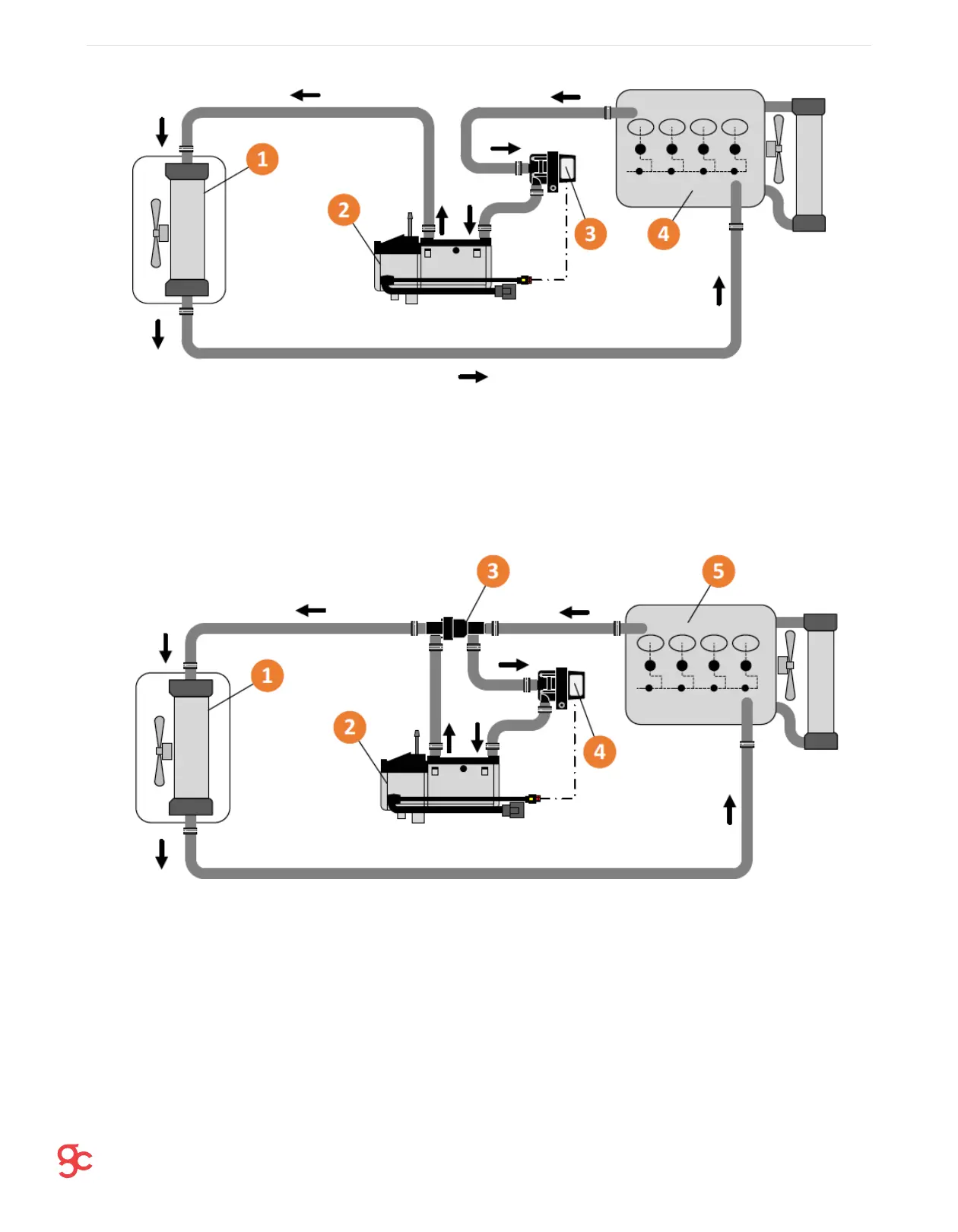

1. Matrix Heater 2. The Heater 3. External Water Pump 4. Engine
The figure above shows the installation
of the coolant circulation system in a marine
application, not using a bypass valve. Figure
below shows the way to install the system in a
vehicle, using the bypass valve.
1. Matrix Heater 2. The Heater 3. Bypass Valve 4. External Water Pump 5. Engine
To bleed the system, simply loosen the
outlet hose from the heater and begin the system.
Any excess air should immediately circulate out
of the system and the hose can be re-tightened.
During installation, any existing coolant in the
system should be flushed out with clean water and
then re-filled with new coolant. Ensure you use
the right coolant specified for your vehicle.
