General Components WALRUS 5000C - DIMENSIONS, MM; Allowable Mounting Angle

WALRUS 5000C
Page | 5
Do not install the heater anywhere near
flammable sources, including the fuel tank, in
closed spaces without ventilation or exposed in
the proximity of people without a proper heat
shield.

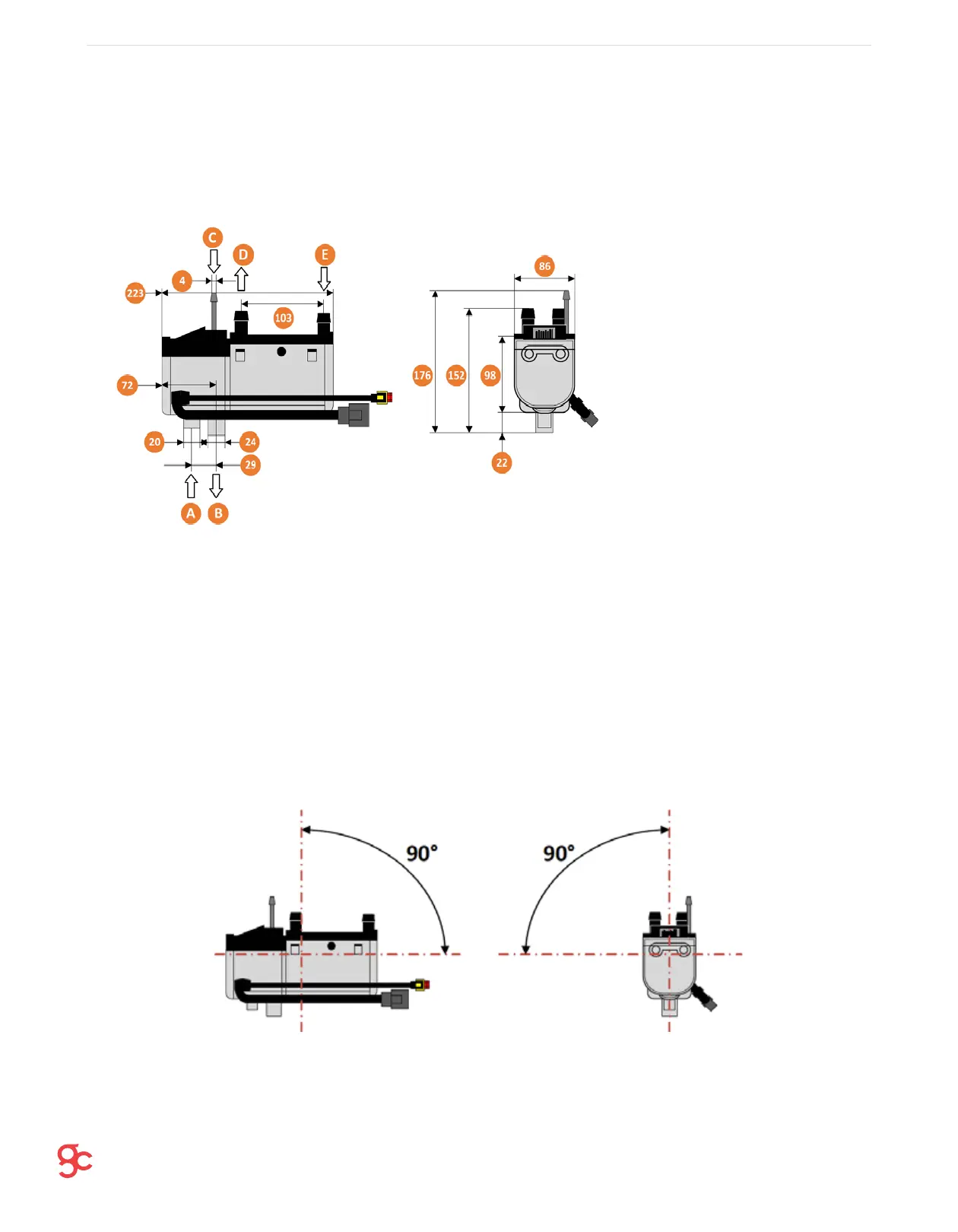

DIMENSIONS, mm
The heater should ideally be installed in
the engine room, but with ease of access for
removal and servicing of the unit.
The main heater body is mounted onto a
suitable surface with a bracket. Ensure it is
lined up with all relevant holes in the correct
position. Once it is in place the unit can be
mounted to the bracket with the M6X10 bolt
supplied in the kit.
ALLOWABLE MOUNTING ANGLE
A. Combustion Air Inlet
B.
Exhaust Outlet
C.
Fuel Inlet
D.
Coolant Outlet
E.
Coolant Inlet
