FUEL LINE CONNECTIONS
1. Fuel Connector Clamp 2. Fuel Pipe 3. Rubber Fuel Connector

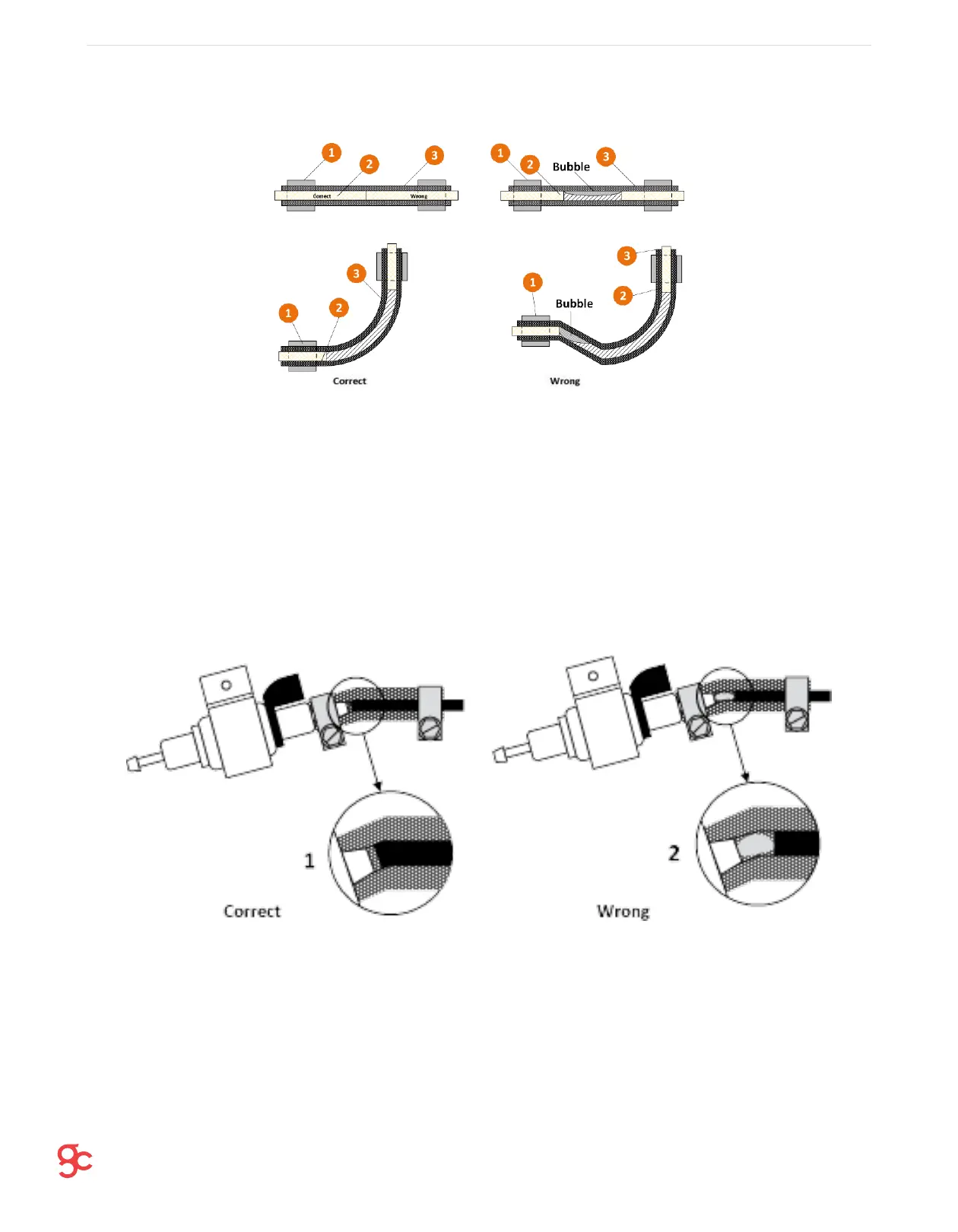

Figures on this page show the correct way
to connect fuel lines to prevent the build-up of
air bubbles: Ensuring they are flush and
minimizing bends.
When the fuel is being sucked from the
vehicle tank, or an independent tank, a fuel
standpipe is required. Make sure all the openings
are appropriate for the installation and a tight
seal is maintained for the base of the standpipe
(see pages 10-11).
The bottom of the suction pipe should be
about 30-40mm from the bottom of the fuel tank,
to avoid sucking impurities or sediment from the
bottom.
