FUEL PUMP ANGLE & SUCTION HEIGHT
1. Heater Body
2. Max. Fuel Level
3. Min. Fuel Level
4. Fuel Pump
A. 3000mm
B. 500mm
C. 2000m
D. Not acceptable
E. Acceptable (between 15-
19°)
F. Not acceptable

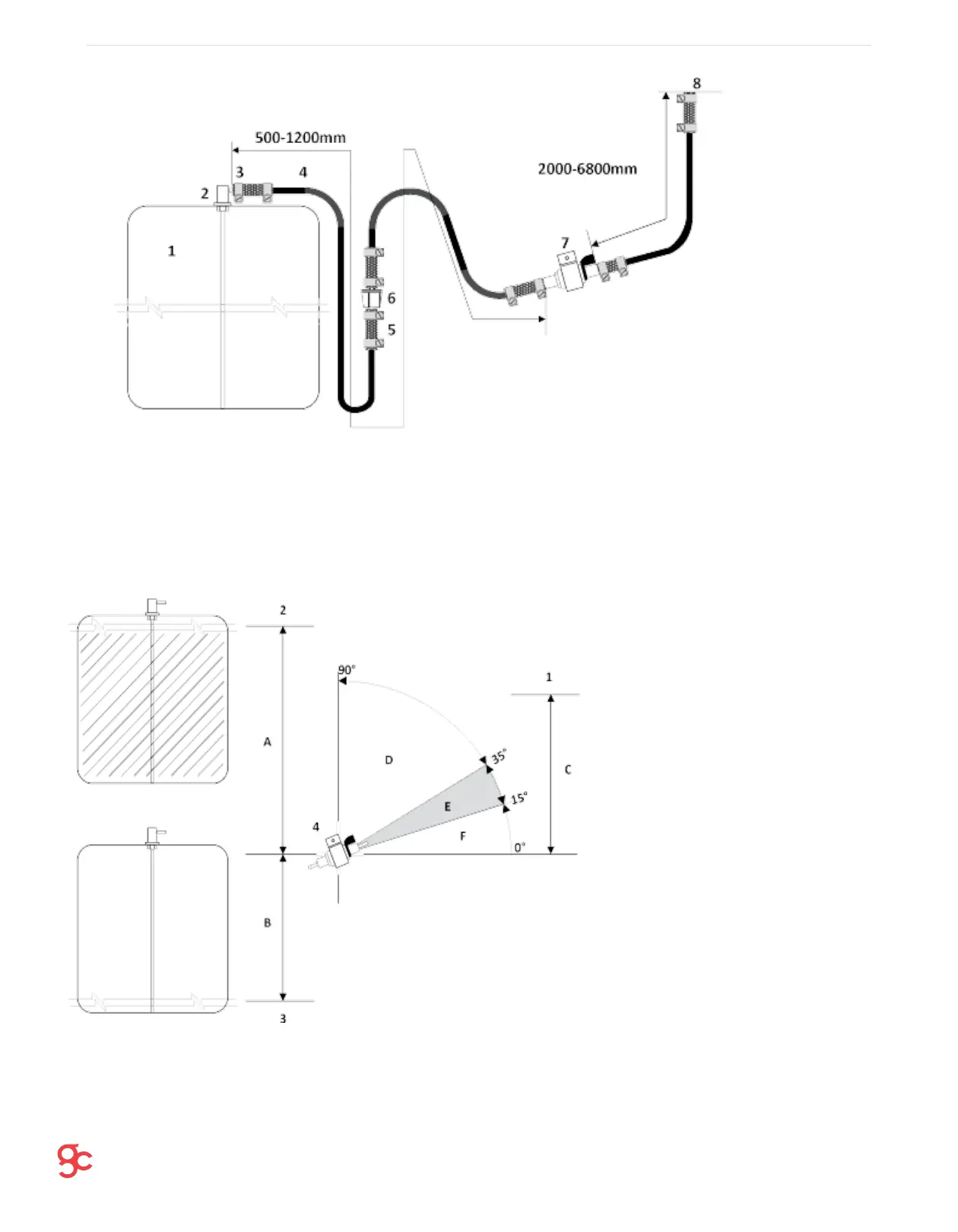

Figure shows the ideal way to mount the fuel pump. The fuel pump’s outlet
should tilt upward at an angle between 15˚-35˚ (as shown above).
1. Fuel Tank
2. Fuel Standpipe
3. Fuel line Hose Clamp
4. Fuel Line
5. Rubber Fuel Connector
6. Fuel Filter
7. Fuel Pump
8. To Heater
