General Measure M02 - Front Panel

M02 Digital Indicator
2
1.2 Front Panel

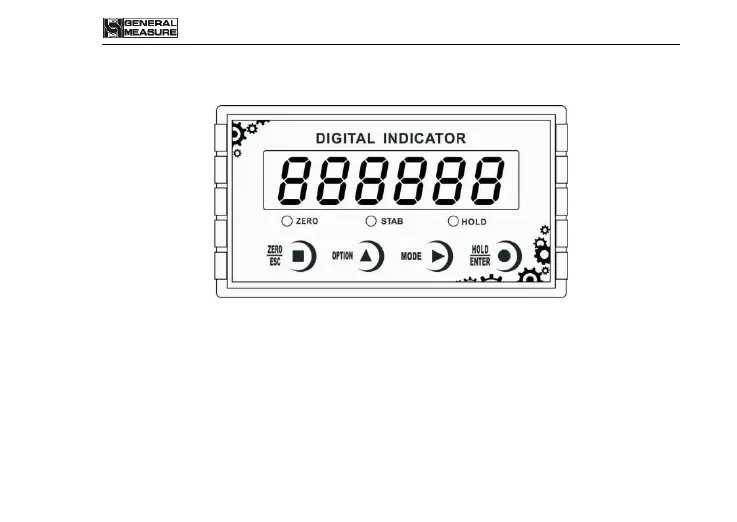

M02 Front panel
Main Display:6 digits, for displaying weight and the information of parameters.
Status Indicator Lamp:
 ZERO: Light on when present weight is within 0±1/4d.
 STAB: Light on when changes of weight values are within the range of motion
detecting during motion detecting time.
 HOLD: Light on when indicator displays the value of D/A output.
Keypad:
