10
BEFORE ASSEMBLING, MAKE SURE THAT THE SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS
UNPLUGGED. DO NOT PLUG IN OR TURN ON THE MACHINE UNTIL YOU HAVE COMPLETED THE ASSEMBLY AND
INSTALLATION STEPS DESCRIBED IN THIS SECTION OF THE MANUAL.

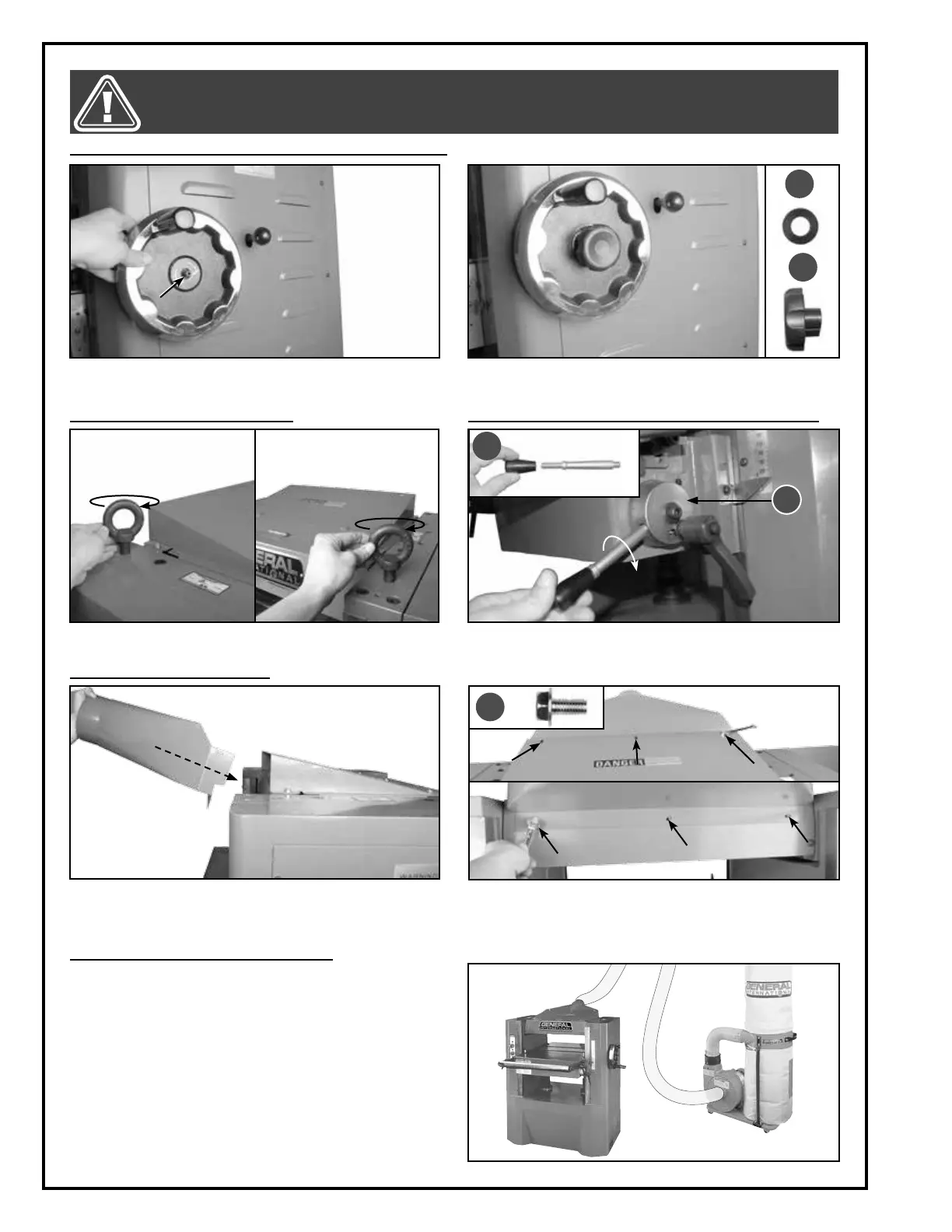

ATTACH THE DEPTH OF CUT ADJUSTMENT HANDWHEEL
1. Slide the handwheel onto the arbor.
2. Slide the flat washer A onto the arbor, then secure
it in place with by tightening the lock knob B.
A
B
CONNECTING TO A DUST COLLECTOR
A dust chute that fits 5” hose is provided to accommo-
date connection to a dust collector (not included). Be
sure to use appropriate sized hose and fittings (not in-
cluded).
Check that all connections are sealed tightly to help
minimize airborne dust. If you do not already own
a dust collection system consider contacting your
General® International distributor for information on
our complete line of dust collection systems and ac-
cessories or visit our Web Site at www.general.ca.
1. Place the dust chute against the opening in the
back of the machine.
2. Align the mounting holes in the dust chute with the
corresponding holes in the machine, then secure
it with 6 flange bolts E using a 10 mm wrench.
INSTALLING THE DUST CHUTE
INSTALLING THE LIFTING HOOKS INSTALLING THE TABLE ROLLER ADJUSTMENT LEVER
If needed, install the lifting hooks on the top of the machine.
Tighten the handle onto the shaft C, then tighten the
assembly into the bracket D.
D
C
E
