MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM-
ING ANY MAINTENANCE OR ADJUSTMENTS.
LUBRICATION

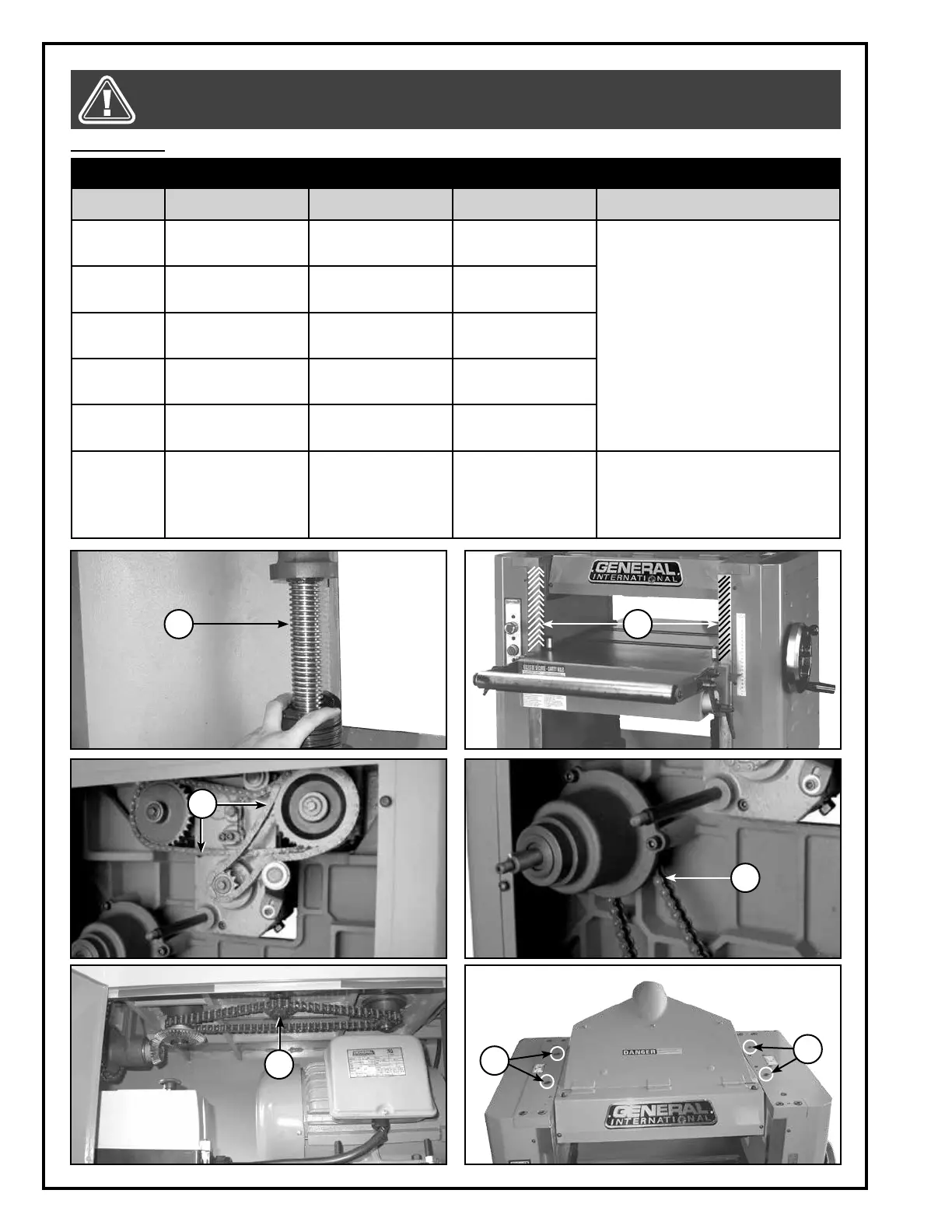

LUBRICATION REFERENCE CHART
REFERENCE
PART
TYPE OF LUBRICANT FREQUENCY TASK
A
ELEVATION SCREWS ALL PURPOSE GREASE ONCE A MONTH
Remove old lubrificant and dust
deposits by wiping with a dry rag,
then apply generous dabs of the
lubricant required.
B
SLIDING SURFACES ALL PURPOSE OIL ONCE A MONTH
C
CHAINS ALL PURPOSE GREASE ONCE A MONTH
D
CHAIN ALL PURPOSE GREASE ONCE A MONTH
E
CHAIN ALL PURPOSE GREASE ONCE A MONTH
F
ROLLER SPRINGS ALL PURPOSE OIL
EVERY 30 HOURS OF
SERVICE
Lubricate the spring rollers with
the lubricant required via the four
set screws.
BA
C
D
E
F
F
