25
MAKE SURE THE MACHINE HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORM-
ING ANY MAINTENANCE OR ADJUSTMENTS.

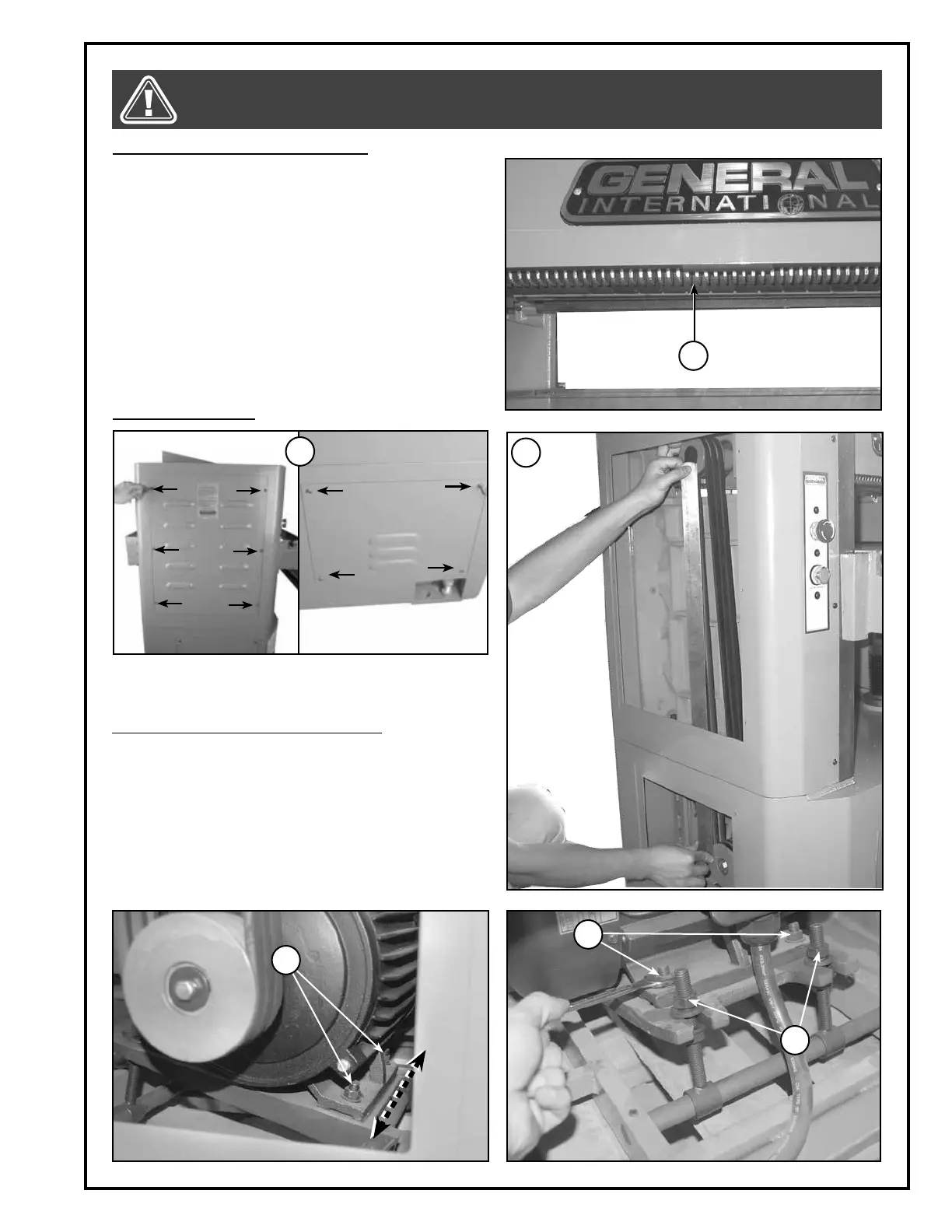

CLEANING ANTI-KICKBACK FINGERS
The anti-kickback fingers on this planer are designed
to reduce the risk of injury due to kick-back by prevent-
ing the workpiece from being violently ejected from the
machine.
In order for the anti-kickback fingers to move freely and
operate correctly, you must clean off any dust, particles
or residue left behind.
A
ALIGNING THE BELTS
1. Remove the left panels using a 4 mm Allen key B.
2. Using a straight edge C, verify that the pulleys are
properly aligned.
To align the pulleys, proceed as follows:
3. Open the motor access door.
4. Loosen the two nuts D and the four nuts E using 24
mm & 14 mm wrenches, then slide the motor on its
mounting plate so that the pulleys are aligned.
5. Retighten the four nuts E and the belt tension nuts D.
Note: check tension by pushing the belt with your finger. The
belt should not move more than 1/2”.
6. Close the motor access door and re-install the pan-
els before starting the machine.
C
B
E
E
D
