8

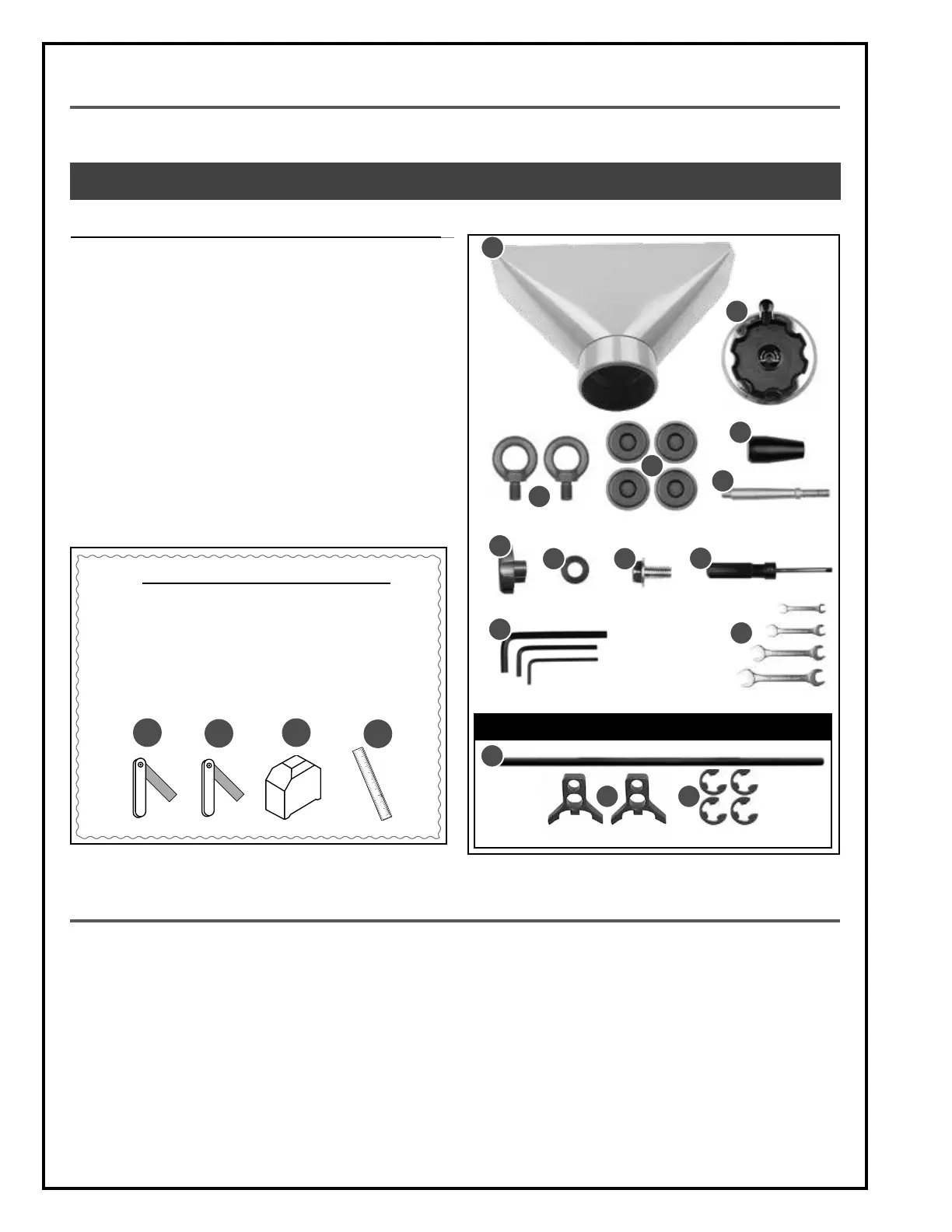

UNPACKING
BASIC FUNCTIONS
Carefully unpack and remove the unit and its components from the box and check for missing or damaged items
as per the list of contents below.
NOTE: PLEASE REPORT ANY DAMAGED OR MISSING ITEMS TO YOUR GENERAL® INTERNATIONAL DISTRIBUTOR IMMEDIATELY.
LIST OF CONTENTS QTY
A. DUST CHUTE ............................................................................. 1
B. HANDWHEEL (DEPTH OF CUT ADJUSTMENT) .......................... 1
C. LIFTING HOOK ......................................................................... 2
D. FOOT PAD ................................................................................ 4
E. HANDLE (TABLE ROLLER ADJUSTMENT LEVER) ....................... 1
F. THREADED ROD (TABLE ROLLER ADJUSTMENT LEVER)........... 1
G. LOCK KNOB (DEPTH OF CUT ADJUSTMENT HANDWHEEL) .... 1
H. FLAT WASHER (DEPTH OF CUT ADJUSTMENT HANDWHEEL) ... 1
I. FLANGE BOLT (DUST CHUTE) ................................................... 6
J. SCREWDRIVER ......................................................................... 1
K. 3, 4, 6 MM ALLEN KEYS ............................................................ 1
L. 10,14,19, 24 MM WRENCHES .................................................. 1
M. KNIFE SETTING BAR* ................................................................ 1
N. KNIFE SETTING PAD* ................................................................ 2
O. RETENTION RING* ................................................................... 4
A
B
C
D
K
L
KNIFE SETTING JIG*
M
N O
E
F
J
G
H I
ADDITIONAL REQUIREMENTS FOR SET UP
A. 0,02” FEELER GAUGE
B. 0,004” FEELER GAUGE
C. GAUGE BLOCK
D. STRAIGHT EDGE
B
A
D
0.0
2
0
.0
0
4
C
This 20” heavy-duty planer is designed for thickness planing of solid wood only. The unit is not designed nor should
it be used to surface or prepare, plywood, wood paneling, particleboard, MDF nor any other wood based by-
products nor any non-wood based materials.
This unit has the capacity to plane boards of up to 20” wide having a maximum thickness of 8” and a minimum
thickness of 3/16”.
The unit is offered with 2 different cutter head options as follows:
Model 30-360 M1 – 20” planer with 4-knife cutter head;
Model 30-360HC M1 - 20” planer with General International’s unique “Magnum” style helical cutter head con-
taining 58 reversible two-sided, quick-change carbide inserts.
*Not included and not needed for 30-360HC
