IMPORTANT: When ordering replacement parts, always give the model number, serial number of the
machine and part number. Also a brief description of each item and quantity desired.
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the
machine and part number. Also a brief description of each item and quantity desired.

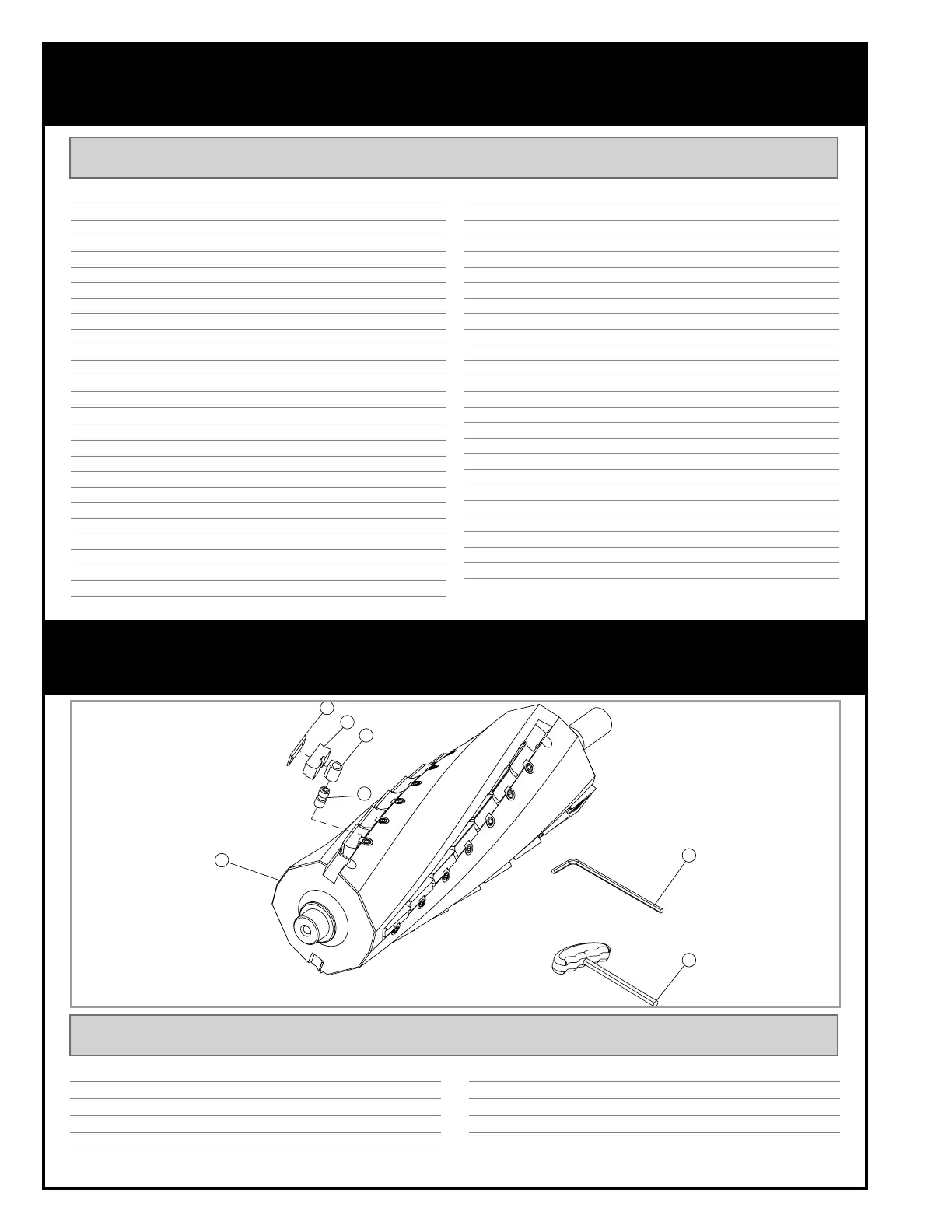

PARTS LIST
HELICAL CUTTER HEAD -
#
360H
30-360HC ONLY
34
30360-236 LEAD SCREW 1
30360-237 BEVEL GEAR 50T 1
30360-238 REAR DOOR 1
30360-239 DOOR LATCH 1
30360-240 BASE 1
30360-241 BASE SIDE COVER 2
30360-242 PIN 4
30360-243 HEX HEAD BOLT M16X2.0PX60L 4
30360-244 NUT M16X2.0P 4
30360-245 FOOT 4
30360-246 MAGNETIC SWITCH M1 5HP.1PH 1
MAGNETIC SWITCH M2 7.5HP.220V.3PH 1
MAGNETIC SWITCH M3 7.5HP.600V.3PH 1
30360-249 ROUND HEAD SCREW M5X0.8PX20 2
30360-249-1 SPROCKET WASHER 5.3X10(BW-5) 1
30360-250 TERMINAL PLATE 1
30360-251 ROUND HEAD SCREW 3/16-24NCX1/4” 1
30360-252 TERMINAL COVER 1
30360-253 POWER CORD 10A/3CX0.35M 1
POWER CORD 12A/4CX0.35M 1
30360-255 MOTOR M1 5HP.220V.1PH 1
MOTOR M2 7.5HP.220V.3PH 1
MOTOR M3 7.5HP.600V.3PH 1
30360-258 MOTOR CORD 10AWG/3CX0.5M 1
MOTOR CORD 12AWG/4CX0.5M 1
30360-260 CLAMP COLLAR 2
30360-261 BELT A74 3
30360-262 SUPPORT SHAFT 2
30360-263 SET SCREW M8X1.25PX12L 5
30360-264 MOTOR PLATE 1
30360-265 HEX HEAD BOLT M10X1.5PX40L 4
30360-266 NUT M10X1.5P 4
30360-267 ADJUST BOLT 2
30360-268 RELIEF BUSHING 15.5X19X5.5 1
30360-269 SIDE COVER PAD 2
30360-270-1 COMBINATION WRENCH 8X10 1
30360-270 COMBINATION WRENCH 12X14 1
30360-271 COMBINATION WRENCH 17X19 1
30360-272 COMBINATION WRENCH 22X24 1
30360-273 ALLEN KEY 3MM 1
30360-274 ALLEN KEY 4MM 1
30360-275 ALLEN KEY 6MM 1
30360-276 KNIFE SETTING JIG BAR (30-360 ONLY) 1
30360-277 KNIFE SETTING JIG PAD (30-360 ONLY) 2
30360-278 RETENTION RING ETW-9 4
30360-279 SCREW DRIVER 1
30360-280 KEY 5X5X30 1
30360-281 HEX HEAD BOLT M8X1.25PX25L 1
30360-282 MOTOR PULLEY 1
30360-283 WASHER 1
30360-284 ELECTRICAL BOX COVER 1
1
6
7
5
4
3
2
PART # DESCRIPTION SPECIFICATION QTY
360H-01 CUTTER HEAD 1
360H-02 INSERT SCREW (ITEM #30-444) 58
360H-03 NUT 58
360H-04 KNIFE-HOLDER / CHIPBREAKER 58
PART # DESCRIPTION SPECIFICATION QTY
360H-05 CARBIDE INSERT (ITEM#30-443)
30X12X1.5MM (T)
58
360H-06 “T” HANDLE ALLEN WRENCH 5 MM 1
360H-07 ALLEN KEY 5 MM 1
