CONTROLS
DC Terminals
The DC terminals may ONLY be sued for charging 12 volt automotive type
batteries.
The terminals are colored red to identify the positive (+) terminal and black to
identify the negative (-) terminal. The battery must be connected to the generator
DC terminals with the proper polarity (battery positive to generator red terminal
and battery negative to the generator black terminal).
DC Circuit Protector
The DC circuit protector automatica
lly shu
ts off the DC battery charging circuit
when the generator is overloaded, when there is a problem with the battery or the
connections between the battery and the generator are improper.
10

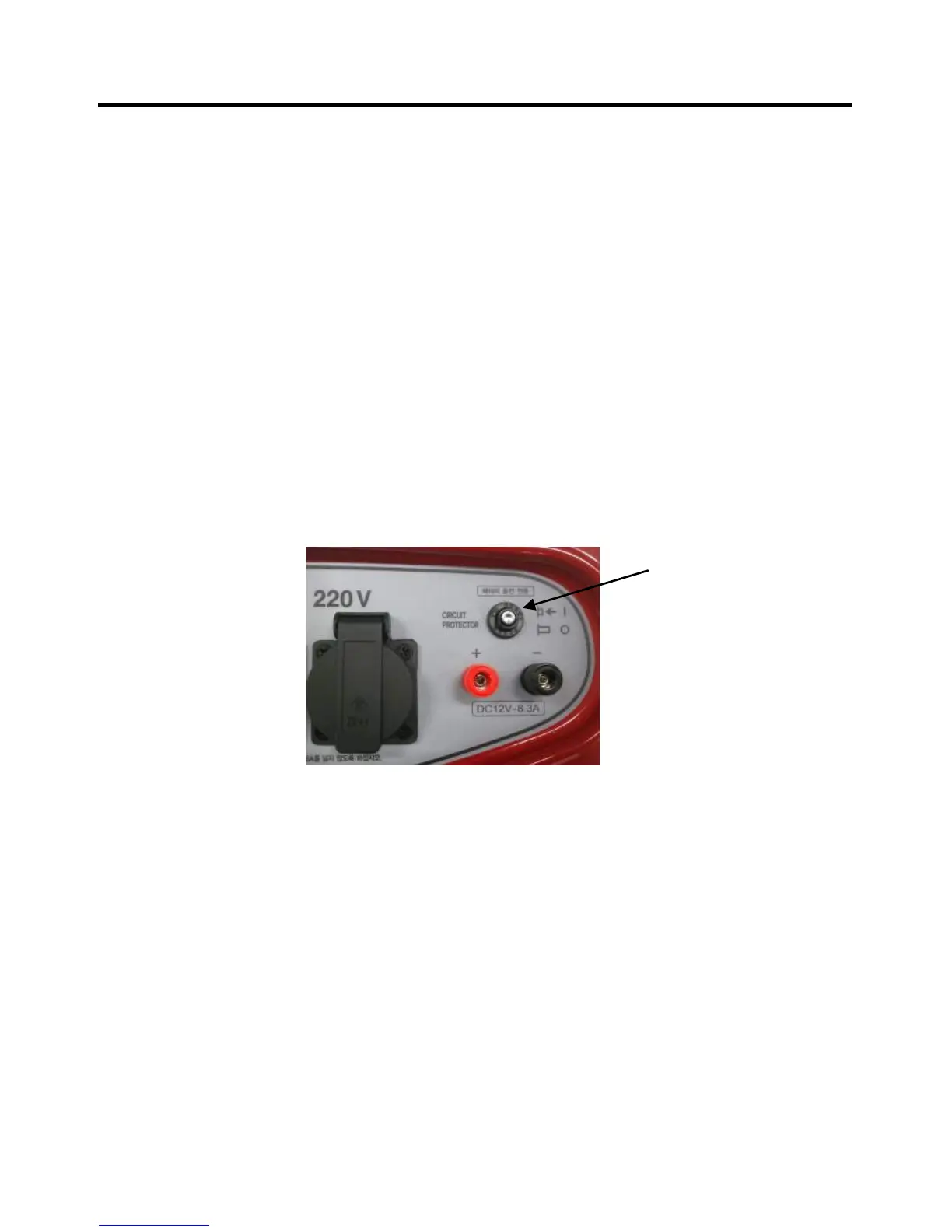

DC CIRCUIT BREAKER
