Genie GCG350L User Manual

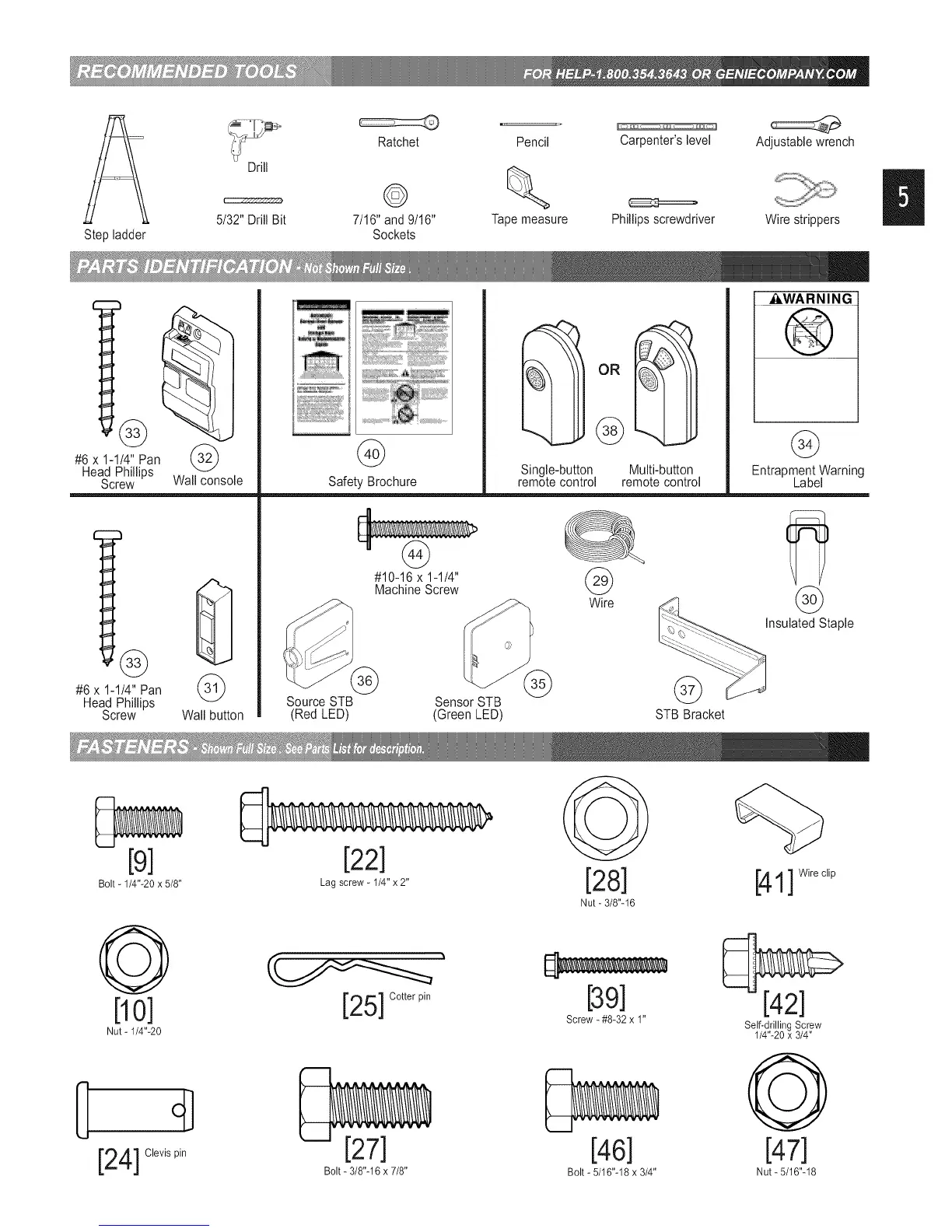

Step ladder
Drill
r_
5/32" Drill Bit
Ratchet
©
7/16"and 9/16"
Sockets
Pencil
%
Tape measure
Carpenter's level
Phillipsscrewdriver
Adjustable wrench
Wire strippers
ii
#6 x 1-1t4" Pan (32)
Head Phillips
Screw Wallconsole
#6 x 1-1/4" Pan
Head Phillips
Screw Wall button
@
Safety Brochure
#10-16 x 1-1t4"
Machine Screw
@
Source STB Sensor STB
(Red LED) (Green LED)
oRI
Single-button Multi-button
remote control remote control
,&WARNING
@
Entrapment Warning
Label
Q
@
Wire
lnsu_taple
STB Bracket
[9]
Bolt - 1/4"-20 x 5/8"
0
[10]
Nut - 1/4'L20
[24]C,evispin
[22]
Lag screw - 1/4" x 2"
[25]Cotter0in
[27]
Bolt - 3/8"-16 x 7/8"
[28]
Nut - 3/8"-16
[39]
Screw -#8-32 x 1"
[46]
Bolt - 5/16"-18 x 3/4"
[41]Wirec'i0
[42]
Self-drilling Screw
1/4'L20x 3/4"
[47]
Nut - 5/16"-18
