Section 2: Rolling Steel Operator Installation

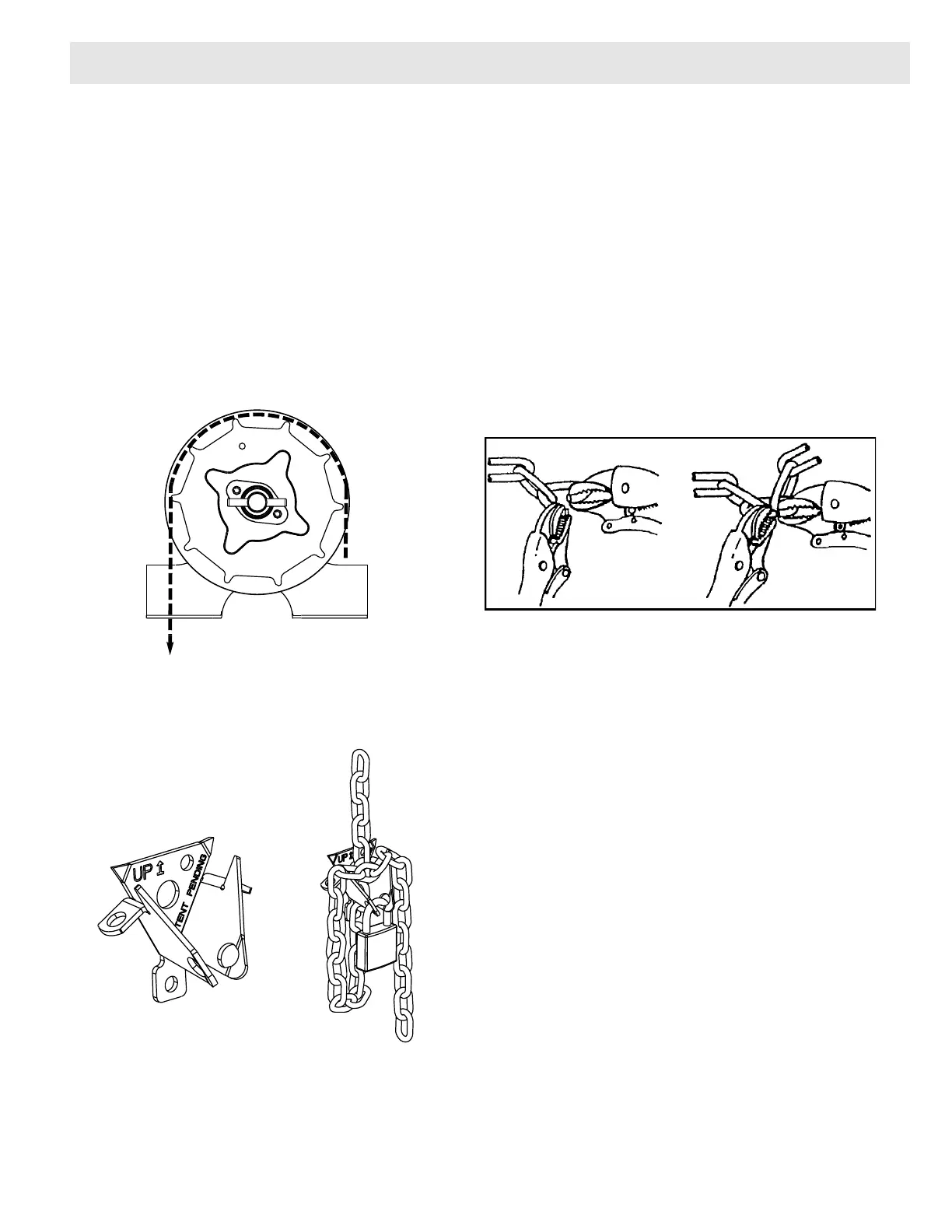

FIG. 1
Hand Chain & Keeper:
1. Route the hand chain through the chain guide, around the pocket wheel and back through the chain
guide. FIG.1.
2. Connect the hand chain ends together as shown in FIG. 2. by twisting open the last link on one end of
the chain, and slipping the last link on the opposite end onto the open link.
3. Twist open link closed again.
4. Mount chain keeper to wall in line with chain approximately 4 feet from oor.
5. Loop chain around keeper as shown. FIG. 3. (Optional Padlock not provided).
NOTE: To ensure smooth operation, make sure there are no twist in the hand chain before connecting the link
ends together.
FIG. 2
FIG. 3
