Sec-3.4
Low Voltage Control Wiring:
Section 3: Wiring

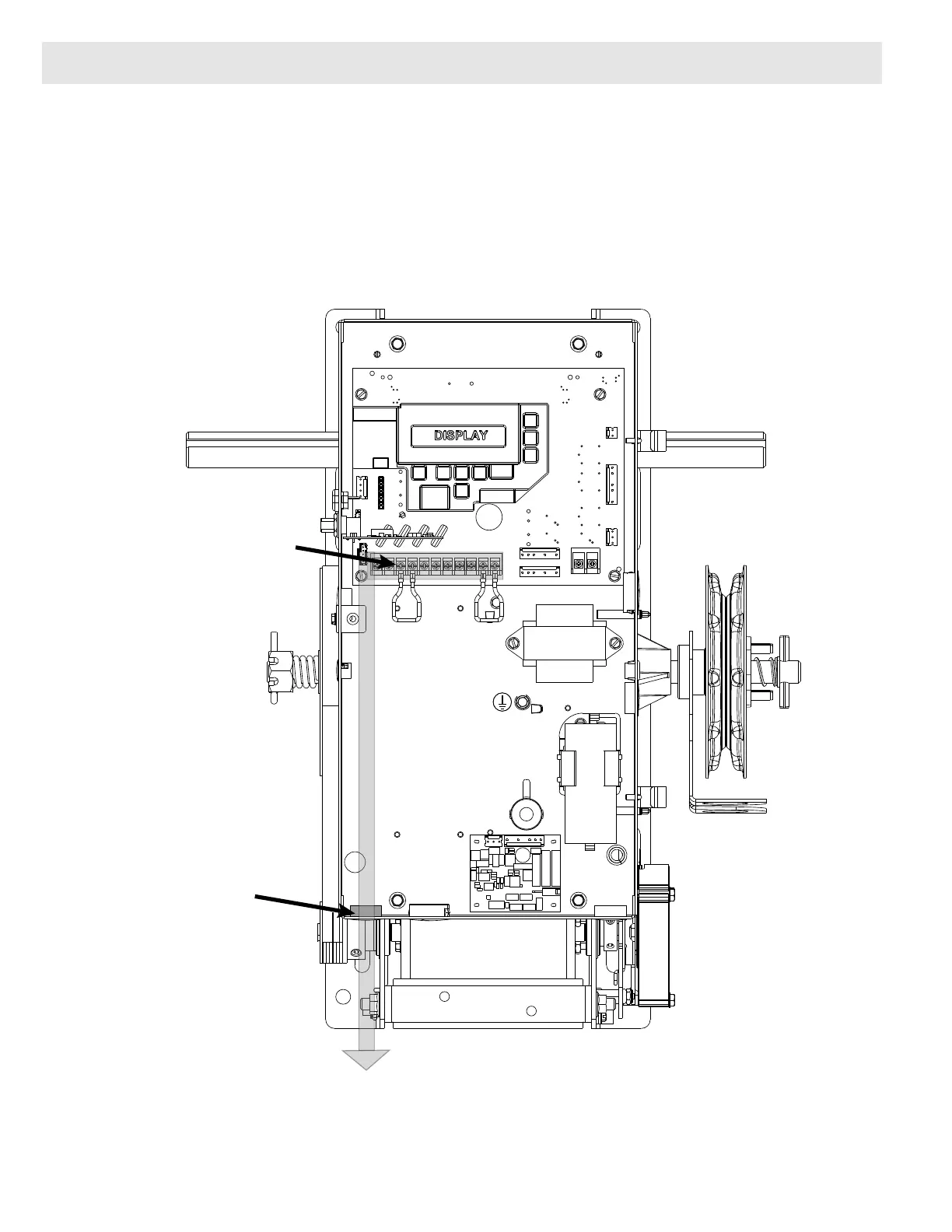

LOW VOLTAGE
CONTROL WIRE
TERMINAL STRIP
ROUTE LOW VOLTAGE
WIRE IN SHADED AREA
LOW VOLTAGE
INPUT PLUG
DO NOT DRILL ELECTRIC BOX
Remove plugs to install wiring
1. Connect all low voltage control circuit wires using 1/2” conduit or exible convoluted tubing.
• Keep low voltage and line voltage wires separate.
• Route all low voltage control wiring as shown. This includes all control circuit wires such as wall
controls, interlock switches and single button input devices as well as safety circuit wiring.
• Plug all unused conduit holes.
